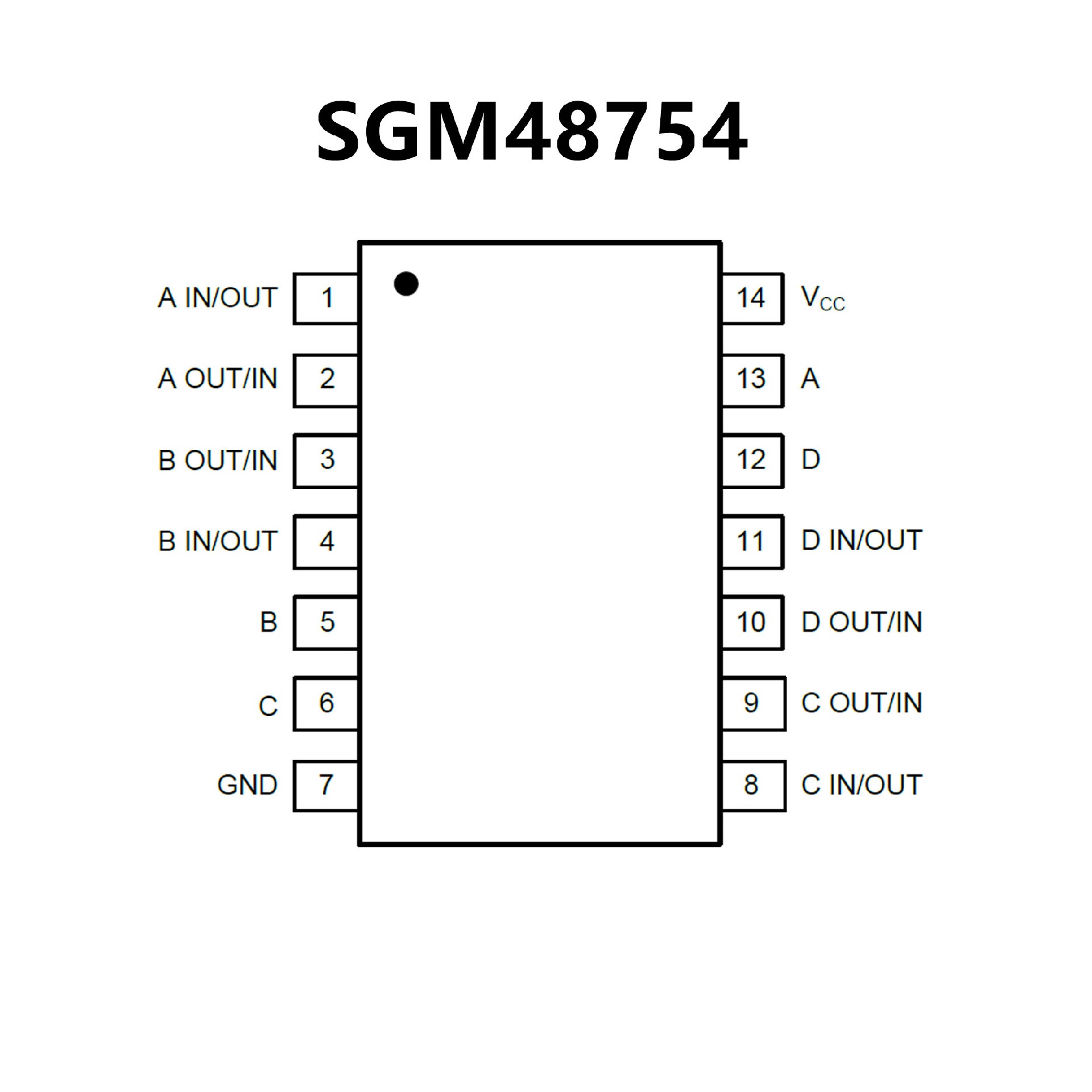

SGM48754.pdf? Guaranteed On-Resistance24Ω (TYP) with 5V Supply
? Guaranteed On-Resistance Match BetweenChannels
? “T” Type Switch
? Low Off-Leakage Current 1nA (TYP) at +25℃
? Low On-Leakage Current 1nA (TYP) at +25℃
? Optimized Rise Time and Fall Time of A, B, C
and DControl Pins to Reduce Clock Feedthrough Effect
? 2.5V to 5.5V Single-Supply Operation
? 1.8V Logic Compatible
? Low Distortion: 0.35% (RL = 600Ω, f = 20Hz to 20kHz)
? High Off-Isolation: -80dB (RL = 50Ω, f = 1MHz)
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOIC-14 and TSSOP-14 Packages
? Triple Diode Protection on All Control Inputs

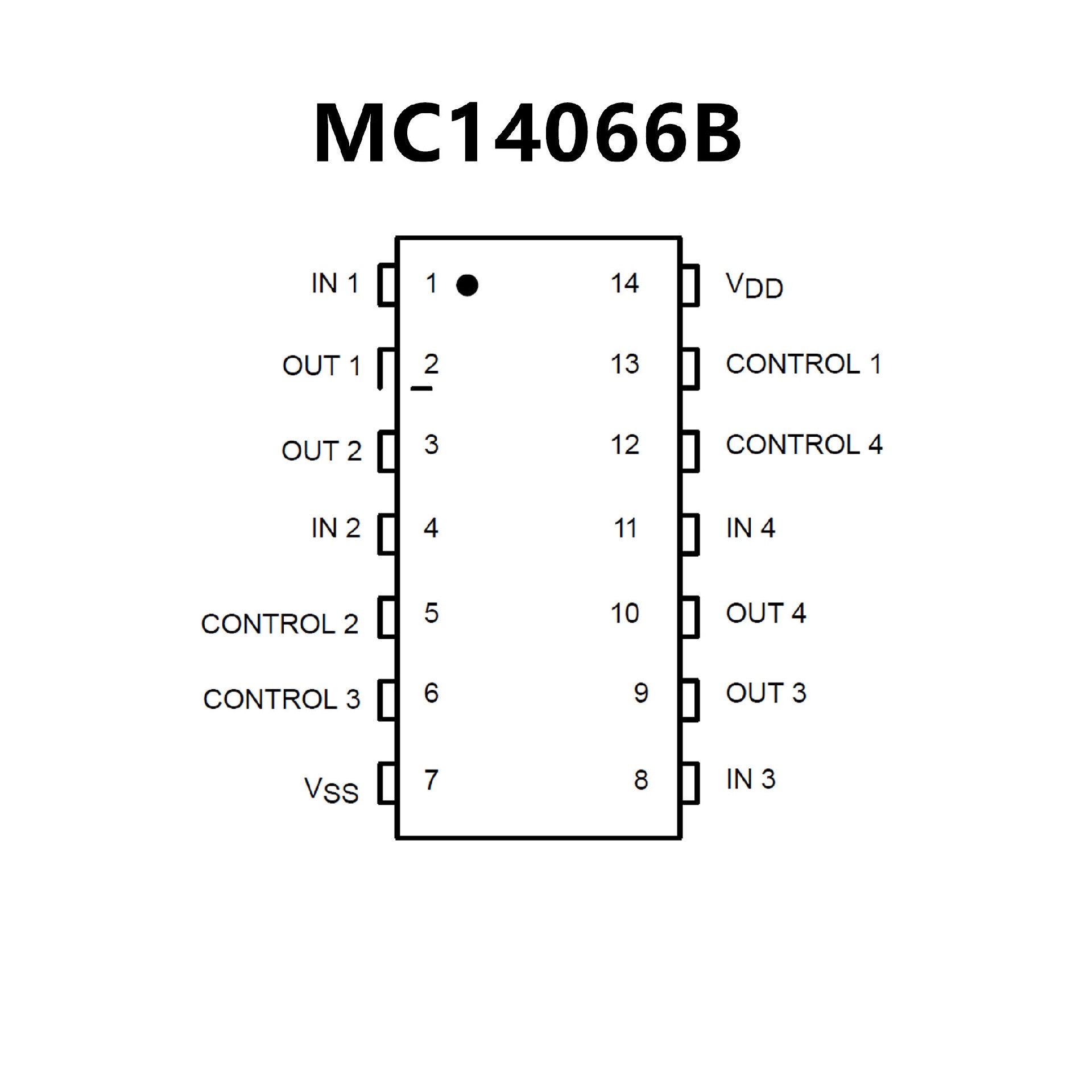

? Supply Voltage Range = 3.0 Vdc to 18 Vdc
? Linearized Transfer Characteristics
? Low Noise ? 12 nV/√Cycle, f ≥ 1.0 kHz typical
? Pin?for?Pin Replacement for CD4016,
CD4016, MC14016B
? For Lower RON, Use The HC4066 High
Speed CMOS Device
? NLV Prefix for Automotive and Other
Applications RequiringUnique Site and Control
Change Requirements; AEC?Q100Qualified
and PPAP Capable
? These Devices are Pb?Free and are RoHS Compliant
