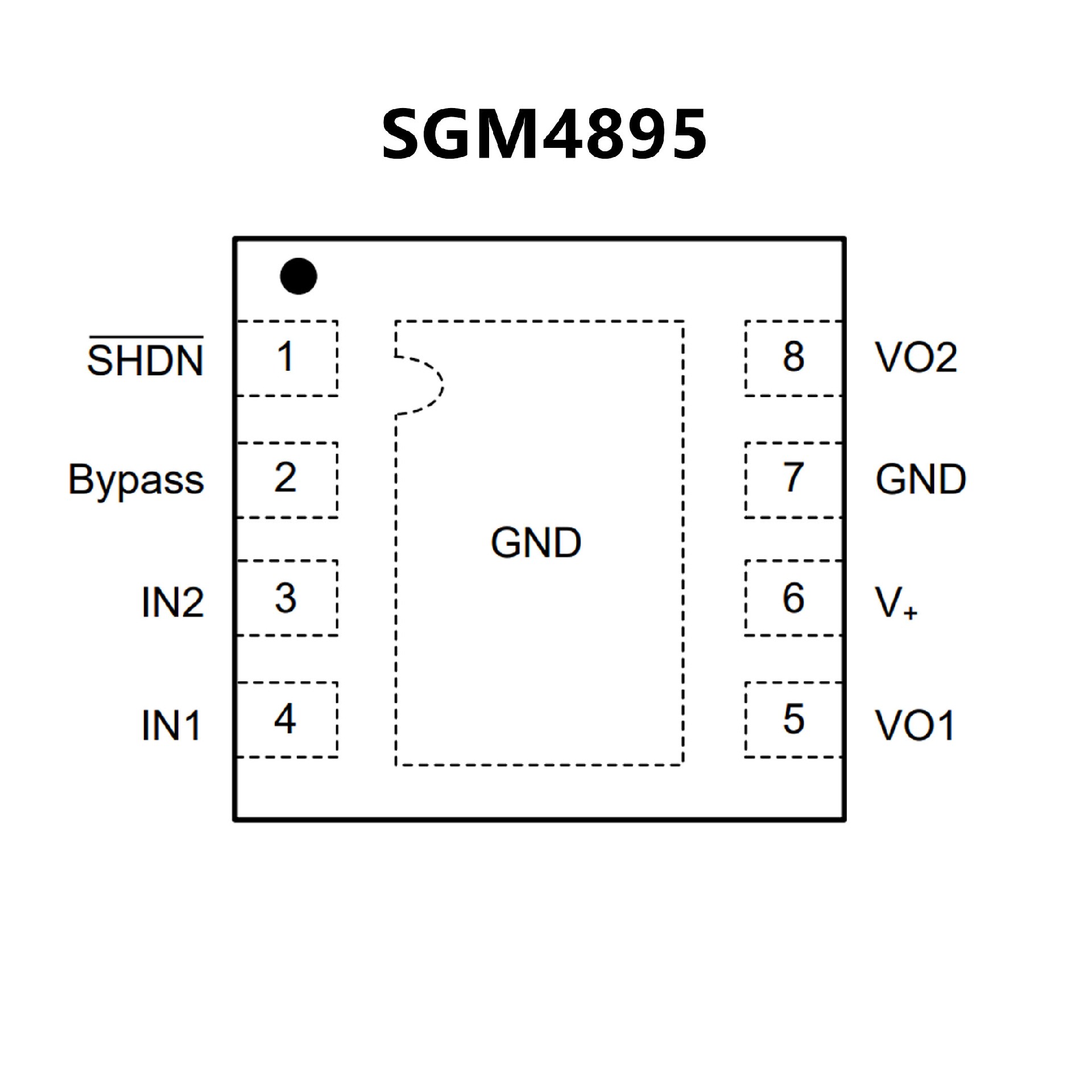

SGM4895.pdf? Fully Differential Amplifier
? Excellent PSRR: Direct Connection to Battery
? 1.3W into 8? Load from 5V Supply
atTHD+N = 1% (TYP)
? 1.6W into 4? Load from 5V Supply
atTHD+N = 1% (TYP, SGM4895YDB8 Only)
? 2.5V to 5.5V Operation
? Low Shutdown Current
? Improved Pop/Click Circuitry
? Support Single-Ended or Differential Input
? Thermal Overload Protection Circuitry
? No Output Coupling Capacitors, Bootstrap
Capacitors Required
? External Gain Configuration Capability
? -40℃ to +85℃ Operating Temperature Range
? Available in Green TDFN-3×3-8L
andMSOP-8 (Exposed Pad) Packages

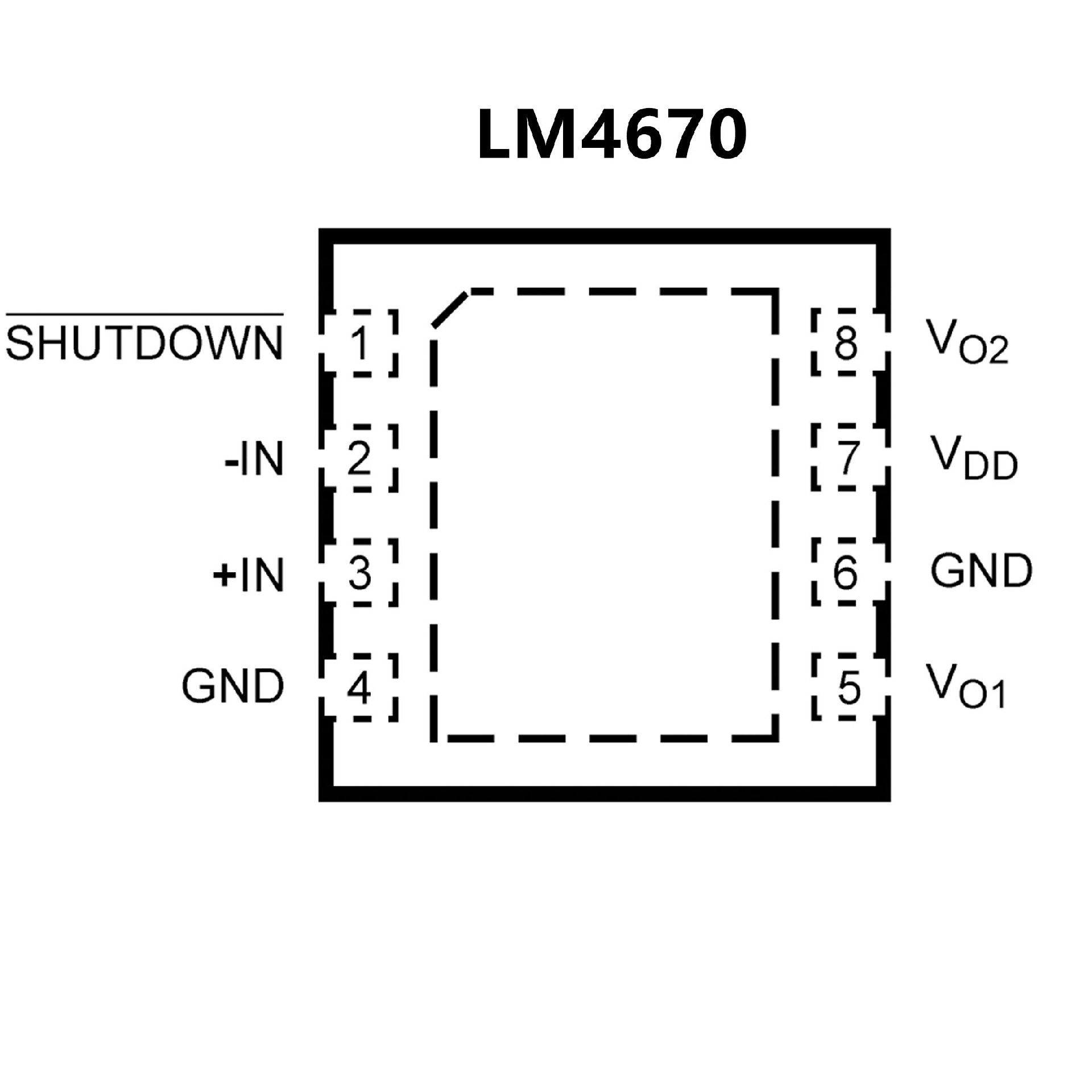

? No output filter required for inductive loads
? Externally configurable gain
? Very fast turn on time: 1.35ms (typ)
? Minimum external components
? "Click and pop" suppression circuitry
? Micro-power shutdown mode
? Short circuit protection
? Available in space-saving microSMD and LLP packages
