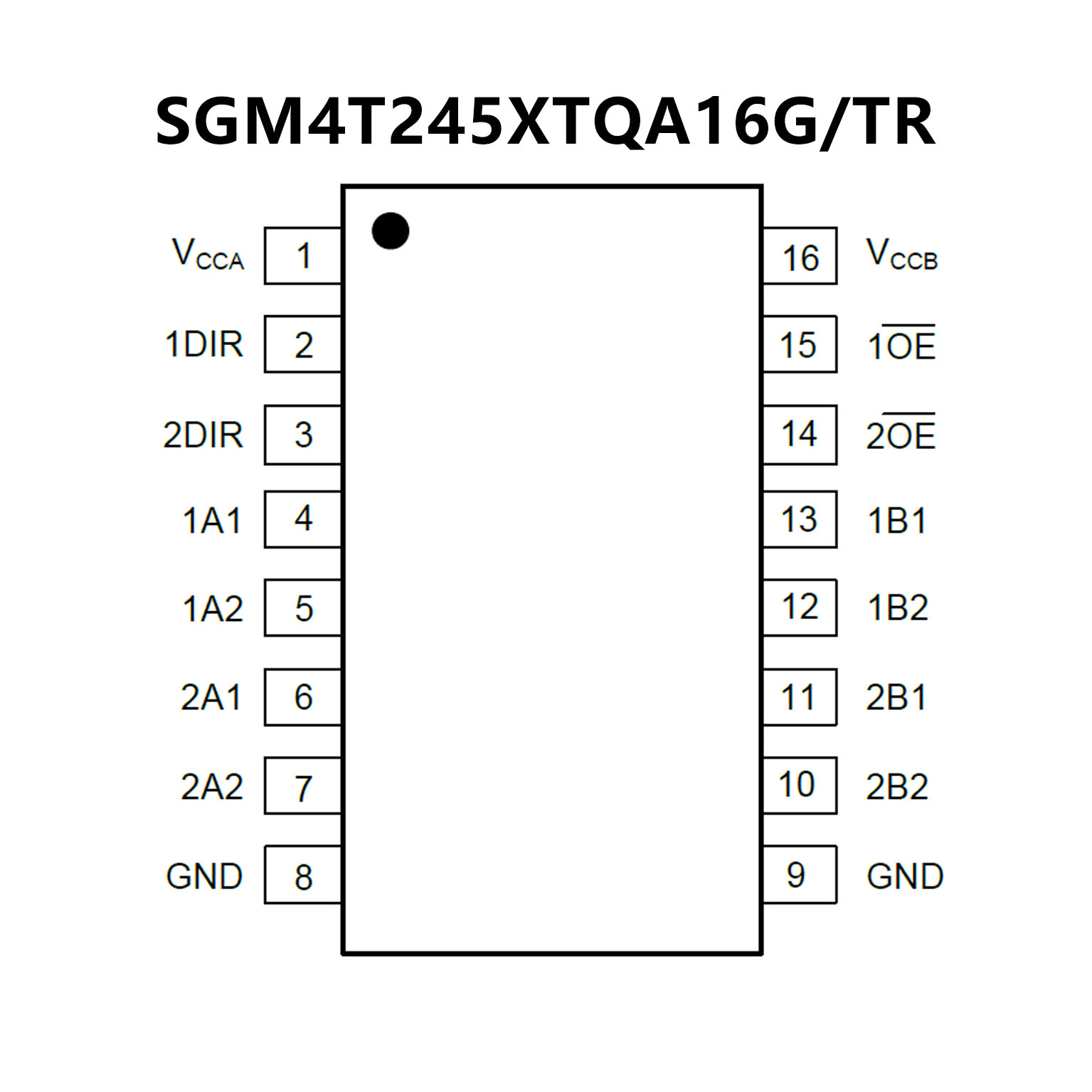

SGM4T245.pdf? Control Inputs VIH/VIL Levels are Referenced to
VccAVoltage
? Vcc Isolation: If Either VCC Input is at GND All I/O
Ports are in the High-Impedance State
? IOFF: Supports Partial Power-Down Mode Operation
? Fully Configurable Dual-Rail Design Allows Each Port to
Operate Over the Full 1.2V to 5.0V Power-Supply Range
? I/Os are 6.0V Tolerant
? -40℃ to +125℃ Operating Temperature Range
? Available in Green TSSOP-16 and TQFN-2.6×1.8-16L
Packages

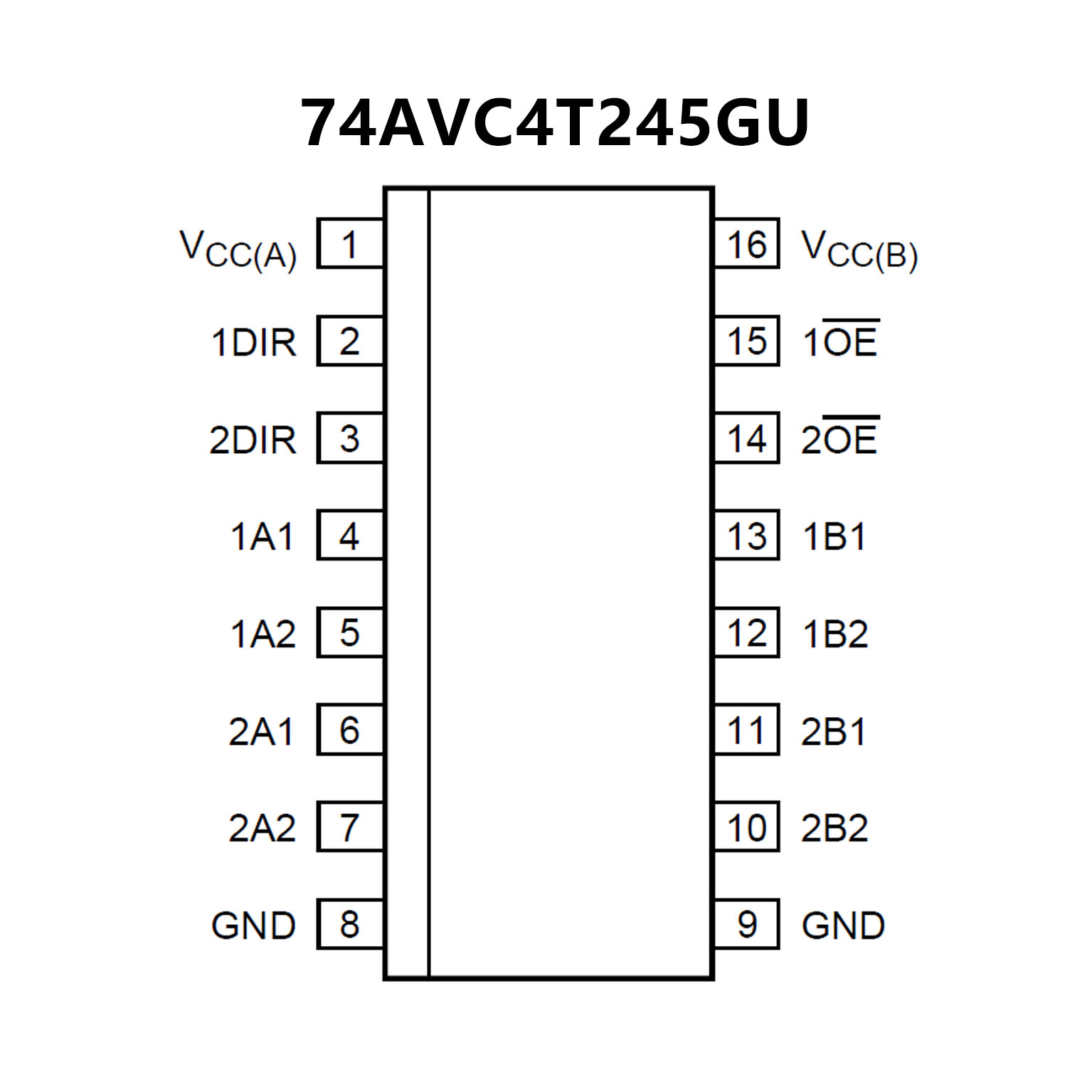

? Wide supply voltage range:
VCC(A): 0.8 V to 3.6 V
VCC(B): 0.8 V to 3.6 V
? Complies with JEDEC standards:
JESD8-12 (0.8 V to 1.3 V)
JESD8-11 (0.9 V to 1.65 V)
JESD8-7 (1.2 V to 1.95 V)
JESD8-5 (1.8 V to 2.7 V)
JESD8-B (2.7 V to 3.6 V)
? ESD protection:
HBM JESD22-A114E Class 3B exceeds 8000 V
MM JESD22-A115-A exceeds 200 V
CDM JESD22-C101C exceeds 1000 V
? Maximum data rates:
380 Mbit/s (≥1.8 V to 3.3 V translatio
200 Mbit/s (≥1.1 V to 3.3 V translation)
200 Mbit/s (≥ 1.1 V to 2.5 V translation)
200 Mbit/s (≥ 1.1 V to 1.8 V translation)
150 Mbit/s (≥ 1.1 V to 1.5 V translation)
