Quad, 12-Bit, 40 MSPS/65 MSPS Serial LVDS 1.8 V A/D Converter, SGM5102 Replace AD9228.
SGM5102
SGM5102.pdf
SGM5102.pdfFEATURES
? 2-Channel Simultaneous Sampling
? INL ±1LSB (TYP), DNL ±0.3LSB (TYP)
? SNR: 73.7dB
? SFDR: 90dB
? Low Power: 94mW Total
? 47mW per Channel
? Single Supply: 1.8V
? Serial LVDS Outputs: 1 or 2 Bits per Channel
? Selectable Input Ranges: 1VP-P to 2VP-P
? Full Power Bandwidth S/H: 800MHz
? Shutdown and Nap Modes
? Serial SPI Port for Configuration
? Available in a Green TQFN-6×6-40AL Package

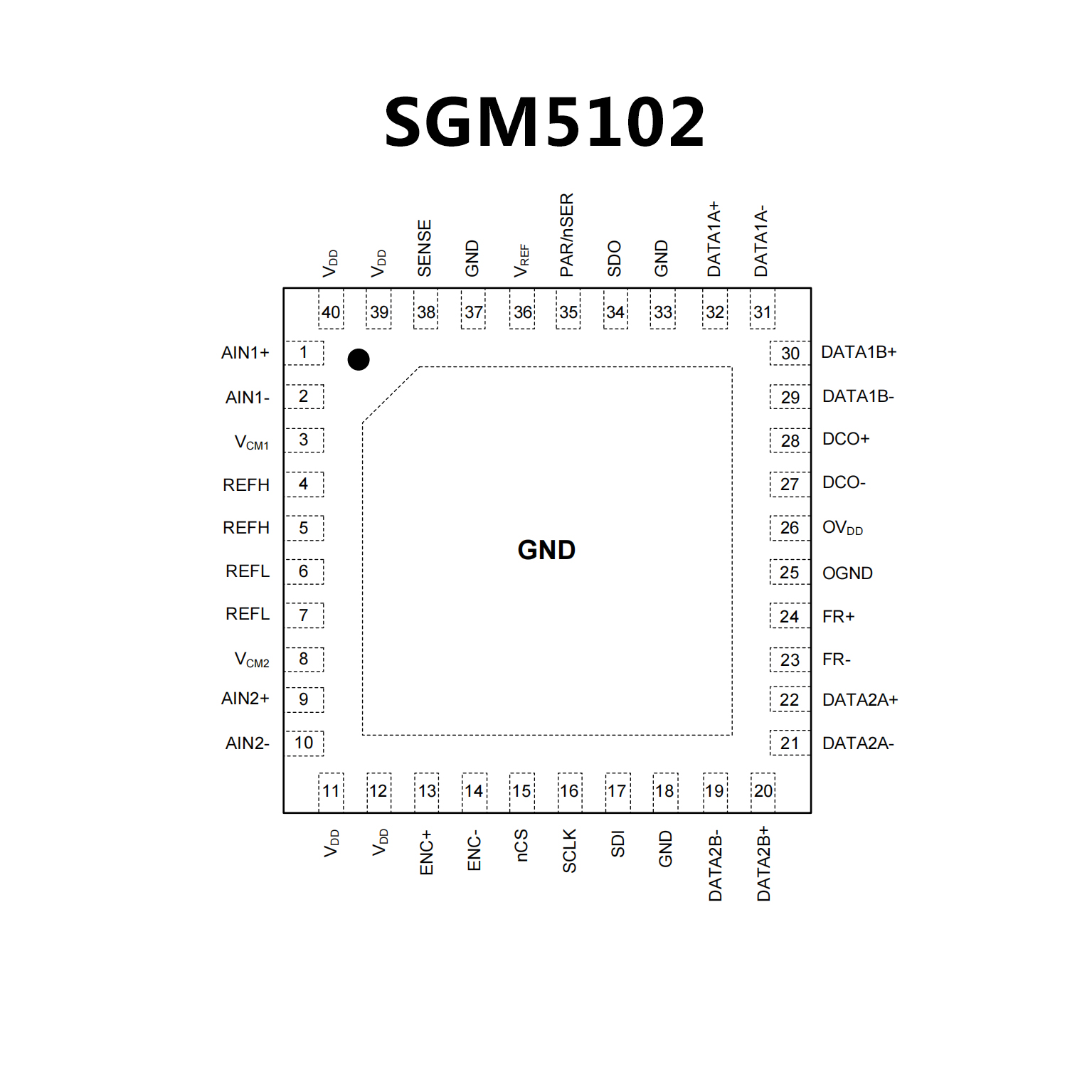

PIN CONFIGUTION
優勢替代
FEATURES
? 4 ADCs integrated into 1 package
? 119 mW ADC power per channel at 65 MSPS
? SNR = 70 dB (to Nyquist)
? ENOB = 11.3 bits
? SFDR = 82 dBc (to Nyquist)
? Excellent linearity
DNL = ±0.3 LSB (typical)
INL = ±0.4 LSB (typical)
? Serial LVDS (ANSI-644, default)
Low power, reduced signal option (similar to IEEE 1596.3)
? Data and frame clock outputs
? 315 MHz full power analog bandwidth
? 2 V p-p input voltage range
? 1.8 V supply operation
? Serial port control
Full chip and individual channel power-down modes
Flexible bit orientation
Built in and custom digital test pattern generation
Programmable clock and data alignment
Programmable output resolution
Standby mode

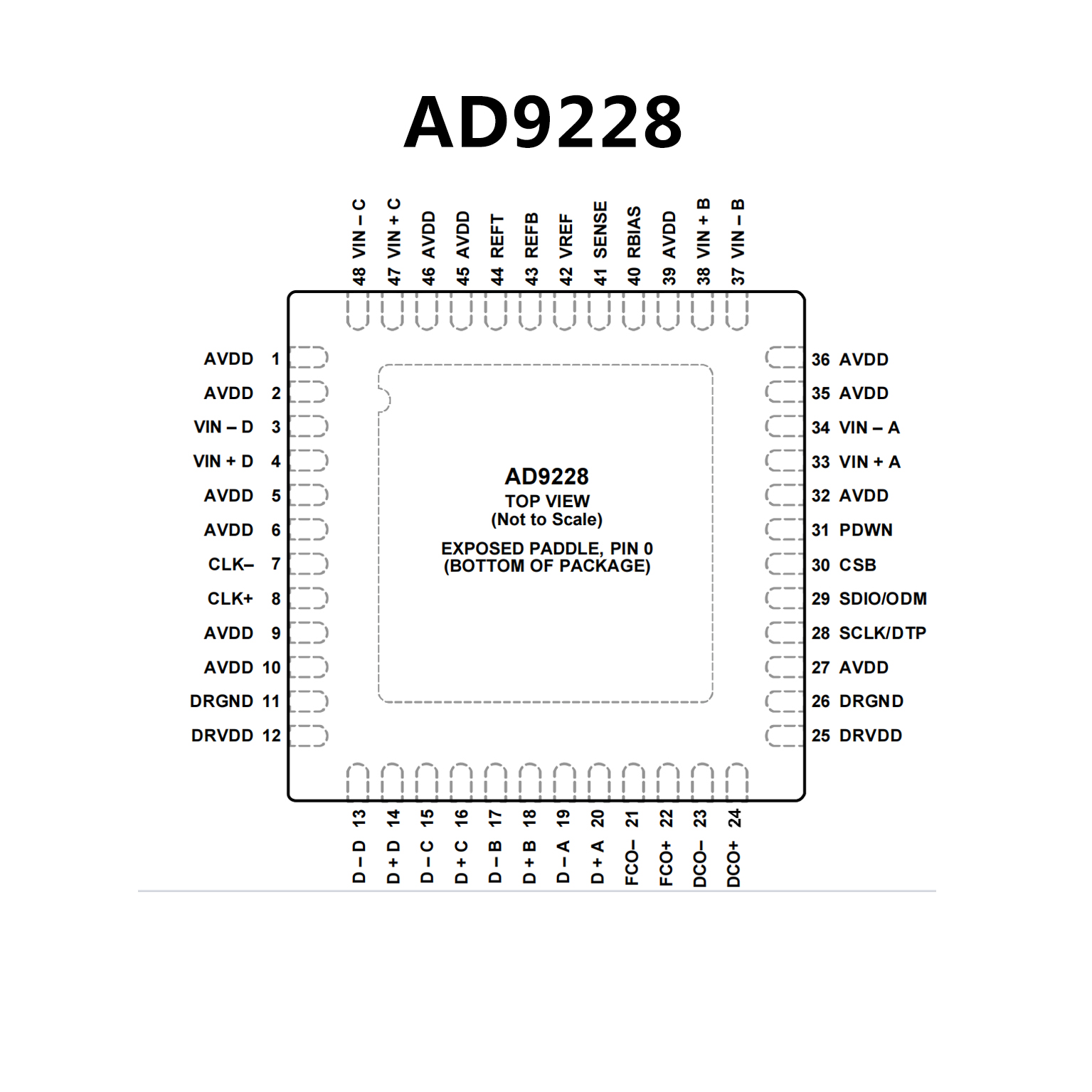

PIN CONFIGUTION
