14-Bit, 25MSPS, Low Power Dual Analog-to-Digital Converter Cores, SGM5102 Replace AD9238.
SGM5102
SGM5102.pdf
SGM5102.pdfFEATURES
? 2-Channel Simultaneous Sampling
? INL ±1LSB (TYP), DNL ±0.3LSB (TYP)
? SNR: 73.7dB
? SFDR: 90dB
? Low Power: 94mW Total
? 47mW per Channel
? Single Supply: 1.8V
? Serial LVDS Outputs: 1 or 2 Bits per Channel
? Selectable Input Ranges: 1VP-P to 2VP-P
? Full Power Bandwidth S/H: 800MHz
? Shutdown and Nap Modes
? Serial SPI Port for Configuration
? Available in a Green TQFN-6×6-40AL Package

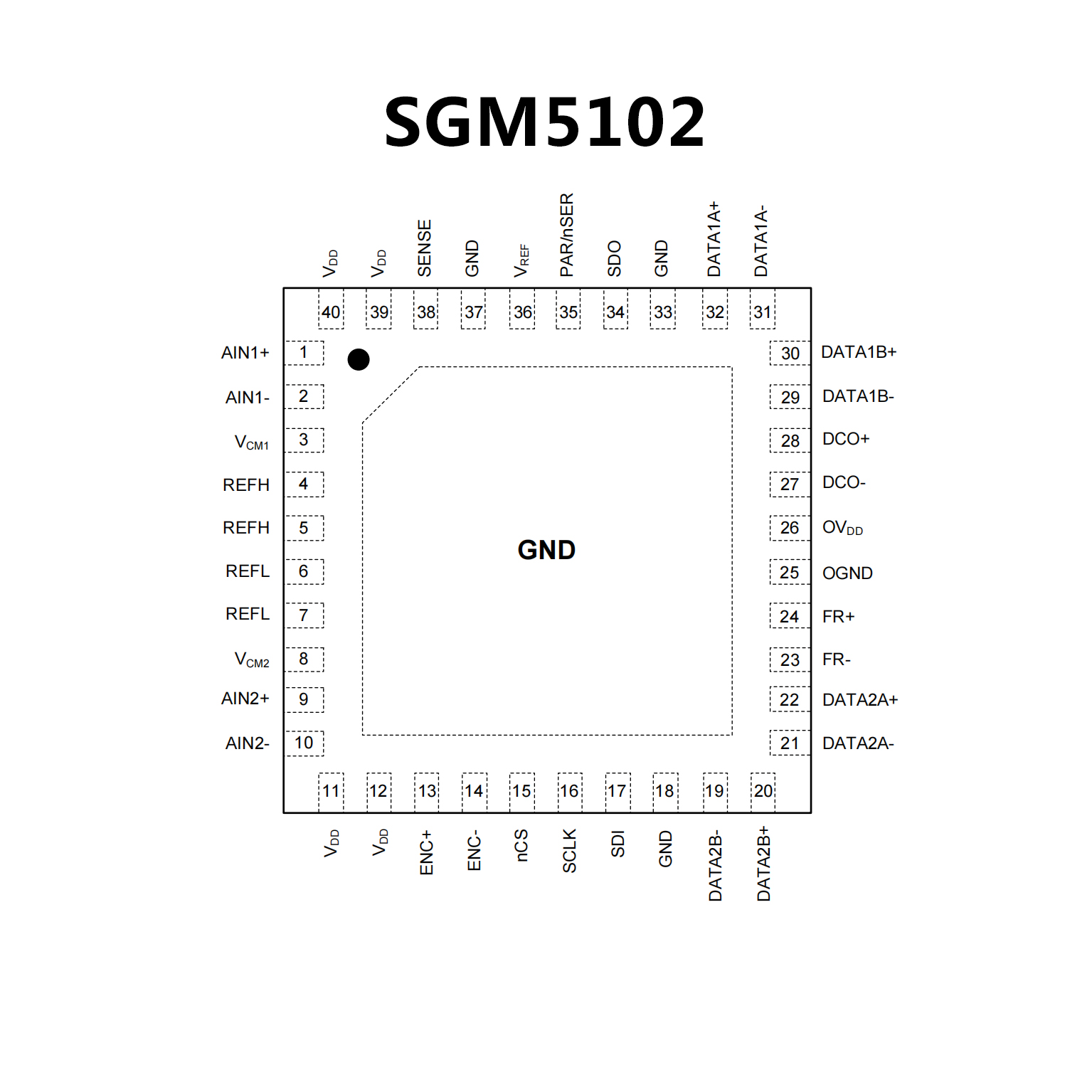

PIN CONFIGUTION
優勢替代
FEATURES
? Integrated dual 12-bit ADC
? Single 3 V supply operation (2.7 V to 3.6 V)
? SNR = 70 dB (to Nyquist, AD9238-65)
? SFDR = 80.5 dBc (to Nyquist, AD9238-65)
? Low power: 300 mW/channel at 65 MSPS
? Differential input with 500 MHz, 3 dB bandwidth
? Exceptional crosstalk immunity > 85 dB
? Flexible analog input: 1 V p-p to 2 V p-p range
? Offset binary or twos complement data format
? Clock duty cycle stabilizer
? Output datamux option
PIN CONFIGUTION
