12-Bit, 65Msps/40Msps/ 25Msps Low Power Dual ADCs, SGM5102 Replace LTC2263.
SGM5102
SGM5102.pdf
SGM5102.pdfFEATURES
? 2-Channel Simultaneous Sampling
? INL ±1LSB (TYP), DNL ±0.3LSB (TYP)
? SNR: 73.7dB
? SFDR: 90dB
? Low Power: 94mW Total
? 47mW per Channel
? Single Supply: 1.8V
? Serial LVDS Outputs: 1 or 2 Bits per Channel
? Selectable Input Ranges: 1VP-P to 2VP-P
? Full Power Bandwidth S/H: 800MHz
? Shutdown and Nap Modes
? Serial SPI Port for Configuration
? Available in a Green TQFN-6×6-40AL Package

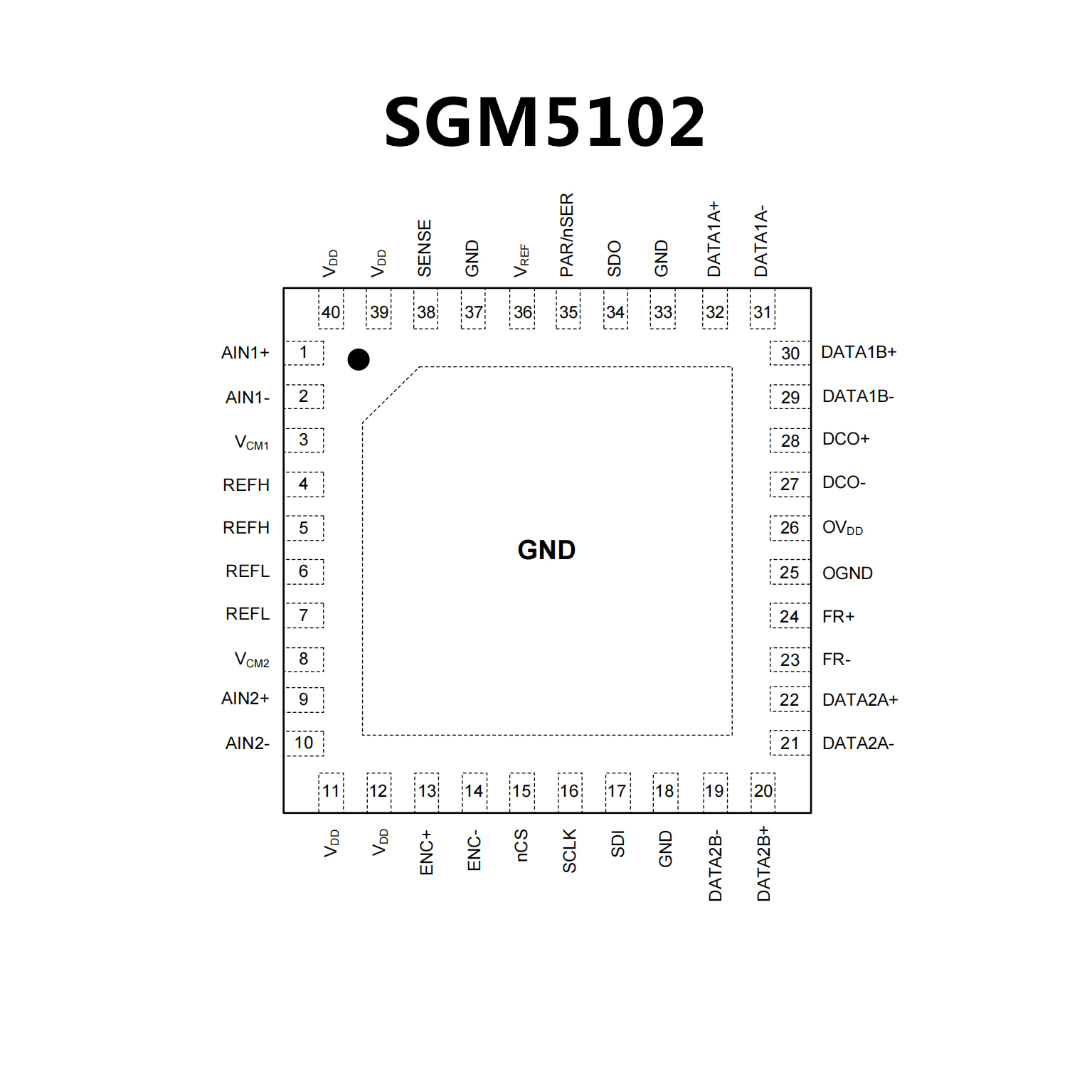

PIN CONFIGUTION
優勢替代
FEATURES
? 2-Channel Simultaneous Sampling ADC
? 71dB SNR
? 90dB SFDR
? Low Power: 167mW/112mW/94mW Total
? 83mW/56mW/47mW per Channel
? Single 1.8V Supply
? Serial LVDS Outputs: 1 or 2 Bits per Channel
? Selectable Input Ranges: 1VP-P to 2VP-P
? 800MHz Full Power Bandwidth S/H
? Shutdown and Nap Modes
? Serial SPI Port for Configuration
? Pin Compatible 14-Bit and 12-Bit Versions
? 40-Pin (6mm × 6mm) QFN Package

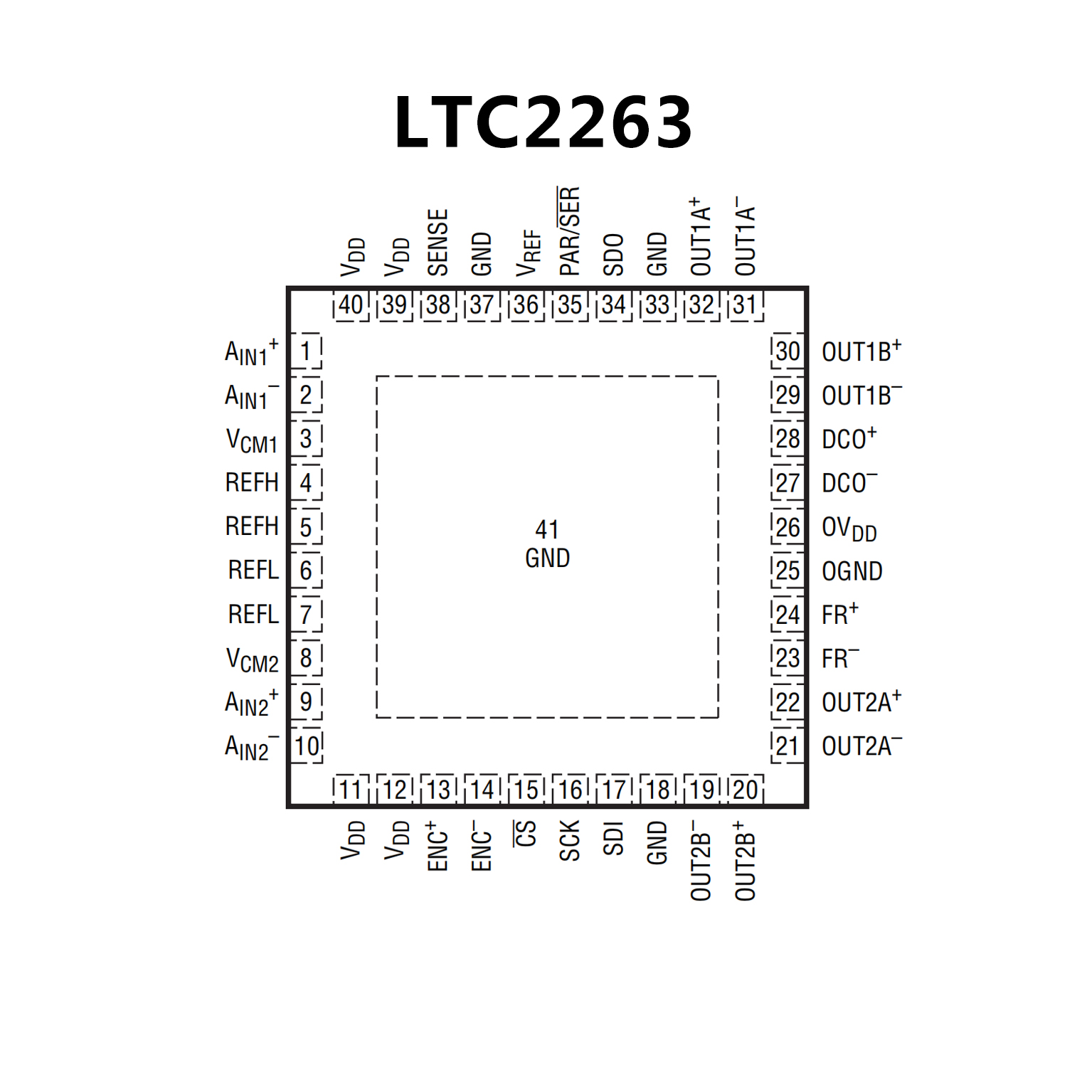

PIN CONFIGUTION
