Low-Power, SPI-Compatible, 16-Bit ADC with Internal Reference and Temperature Sensor, SGM51610S P2P ADS1118.
SGM51610S
SGM51610S.pdf
SGM51610S.pdfFEATURES
? Four Single-Ended or Two Differential Inputs
? Wide Supply Range: 2V to 5.5V
? Low Current Consumption:
Continuous Mode: 207μA (TYP)
Single-Shot Mode: Automatic Power-Down
? Programmable Output Data Rate: 5SPS to 960SPS
? Single-Cycle Settling
? 50/60Hz Line Rejection
? Robust Encryption for Factory Mode Entry
? Internal PGA
? Internal Oscillator
? Internal Low-Drift Voltage Reference
? Internal Temperature Sensor:
0.2℃ (TYP) Error at 0℃ to 70℃
? Available in Green MSOP-10 and UTQFN-2×1.5-10L
Packages

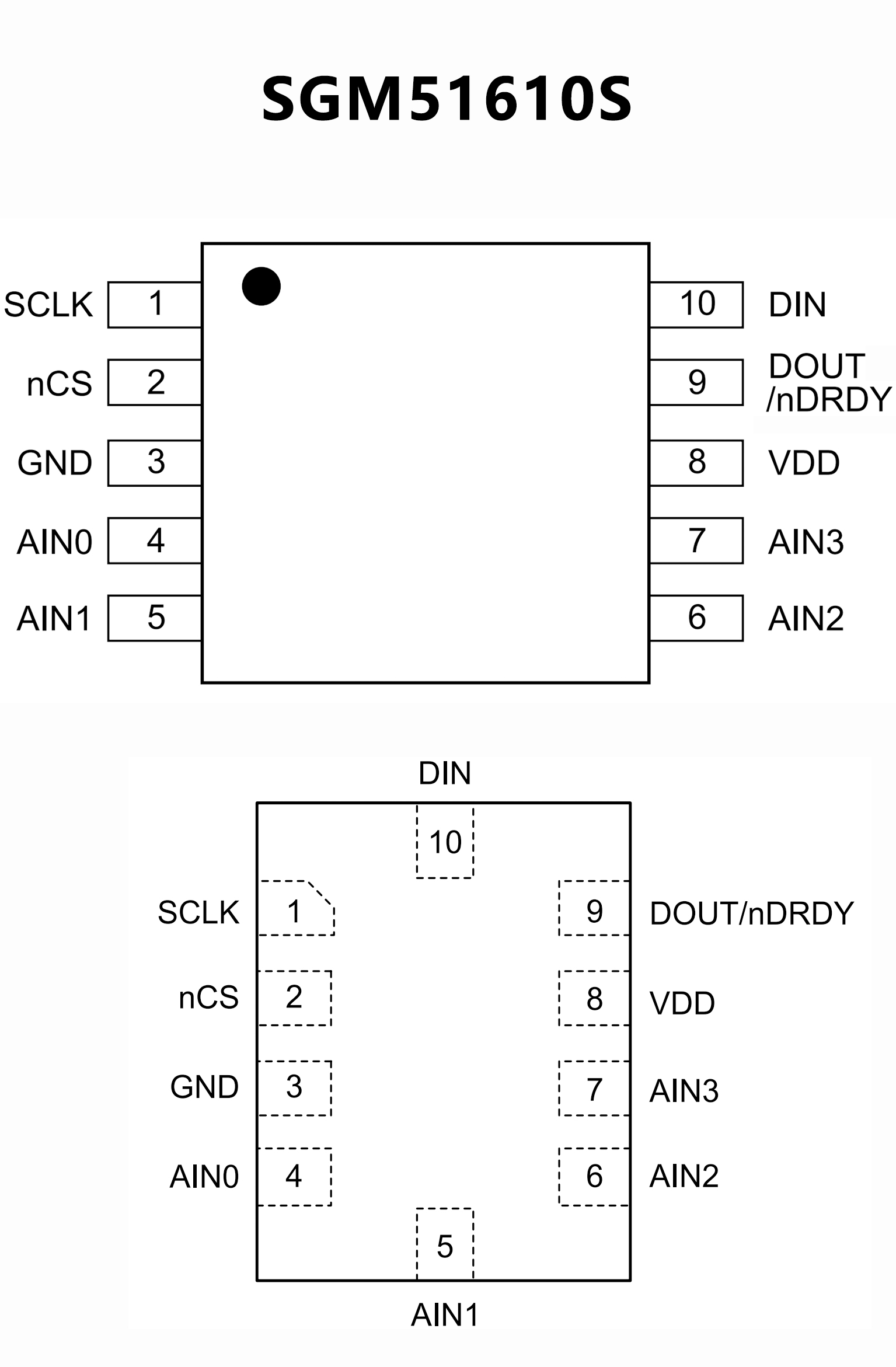

PIN CONFIGUTION
優勢替代
FEATURES
? Ultra-Small QFN Package: 2mm × 1,5mm × 0,4mm
? Wide Supply Range: 2.0V to 5.5V
? Low Current Consumption:
– Continuous Mode: Only 150μA
– Single-Shot Mode: Auto Shutdown
? Programmable Data Rate: SPS to 860SPS
? Single-Cycle Settling
? Internal Low-Drift Voltage Reference
? Internal Temperature Sensor:
– 0.5°C Max Error
? Internal Oscillator
? Four Single-Ended or Two Differential Inputs

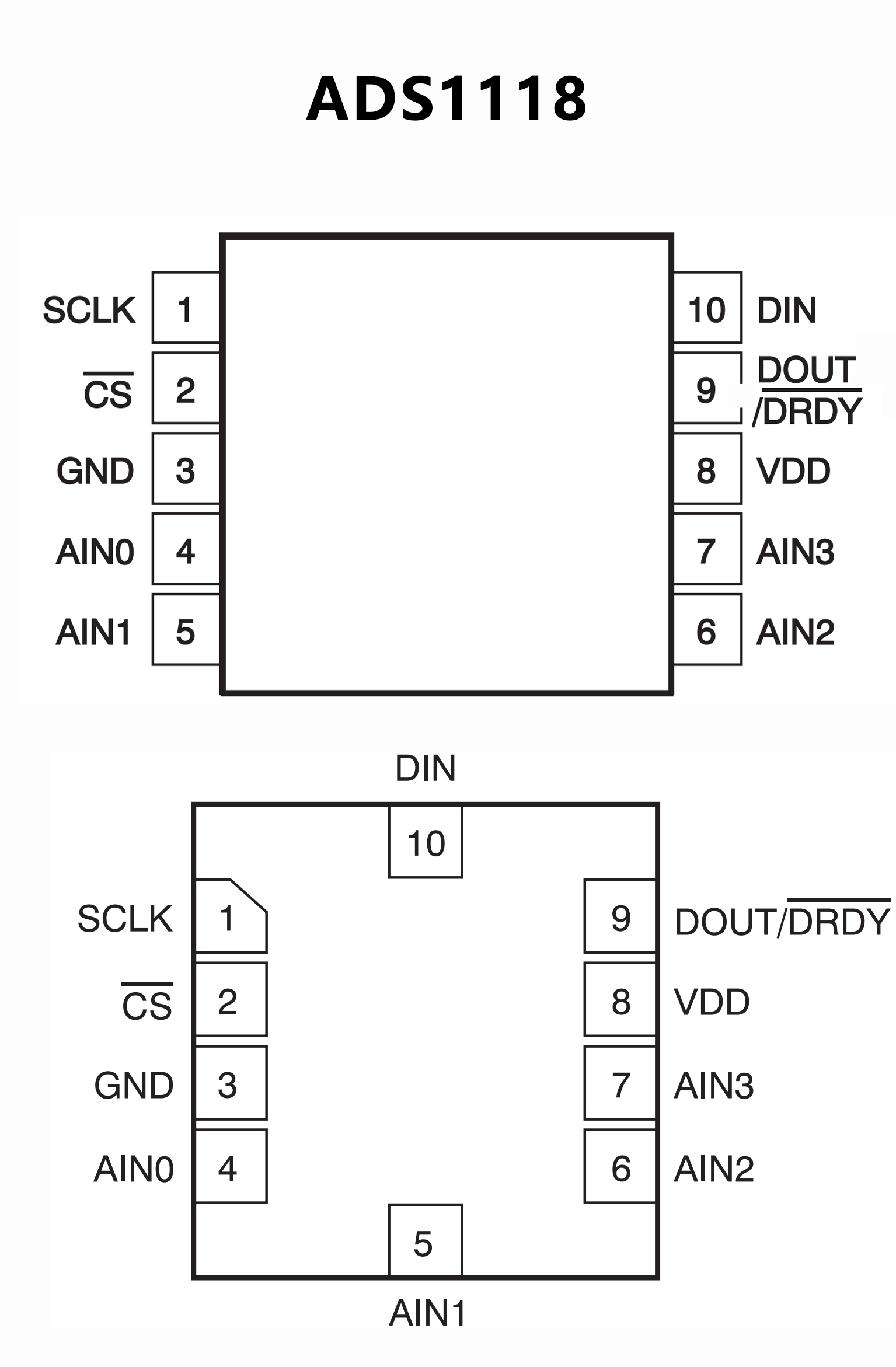

PIN CONFIGUTION
