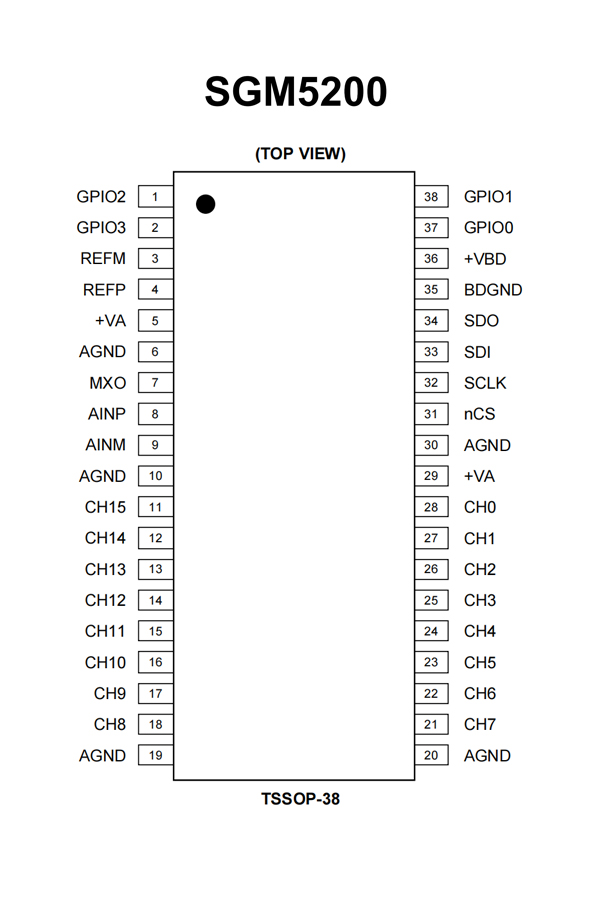

SGM5200.pdf? 1MHz Sample Rate
? 12-Bit Resolution
? 16 Channels
? Zero Latency
? 20MHz Serial Interface
? Analog Power Supply Range: 2.7V to 5.25V
? Digital I/O Power Supply Range: 1.7V to 5.25V
? Two Software Selectable Unipolar, Input Ranges
Range 1: 0V to VREF
Range 2: 0V to 2 × VREF
? Auto and Manual Modes for Channel Selection
? Two Programmable Alarm Thresholds per Channel
? Four Individually Configurable GPIOs in TSSOP
Package and One GPIO in TQFN Package
? Typical Power Dissipation:
24mW (VA = 5V, VBD = 3V) at 1MSPS
? Power-Down Current: 1.4μA (TYP)
? Input Bandwidth: 45MHz (TYP) at -3dB
? Available in Green TSSOP-38 and TQFN-5×5-32L
Packages

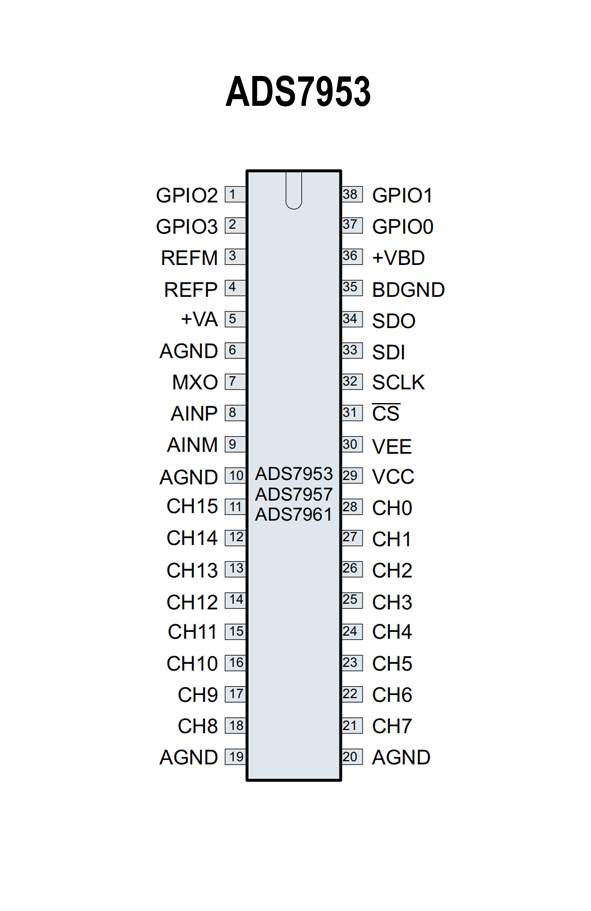

? 1-MHz Sample Rate Serial Devices
? Product Family of 12/10/8-Bit Resolution
? Zero Latency
? 20-MHz Serial Interface
? Analog Supply Range: 2.7 to 5.25V
? I/O Supply Range: 1.7 to 5.25V
? Two SW Selectable Unipolar, Input Ranges: 0
to 2.5V and 0 to 5V
? Auto and Manual Modes for Channel Selection
? 12,8,4-Channel Devices can Share 16 Channel
Device Footprint
? Two Programmable Alarm Levels per Channel
? Four Individually Configurable GPIOs
? Typical Power Dissipation: 14.5 mW (+VA = 5V,
+VBD = 3V) at 1 MSPS
? Power-Down Current (1 μA)
? Input Bandwidth (47 at 3dB)
? 30-Pin and 38-Pin TSSOP Packages
