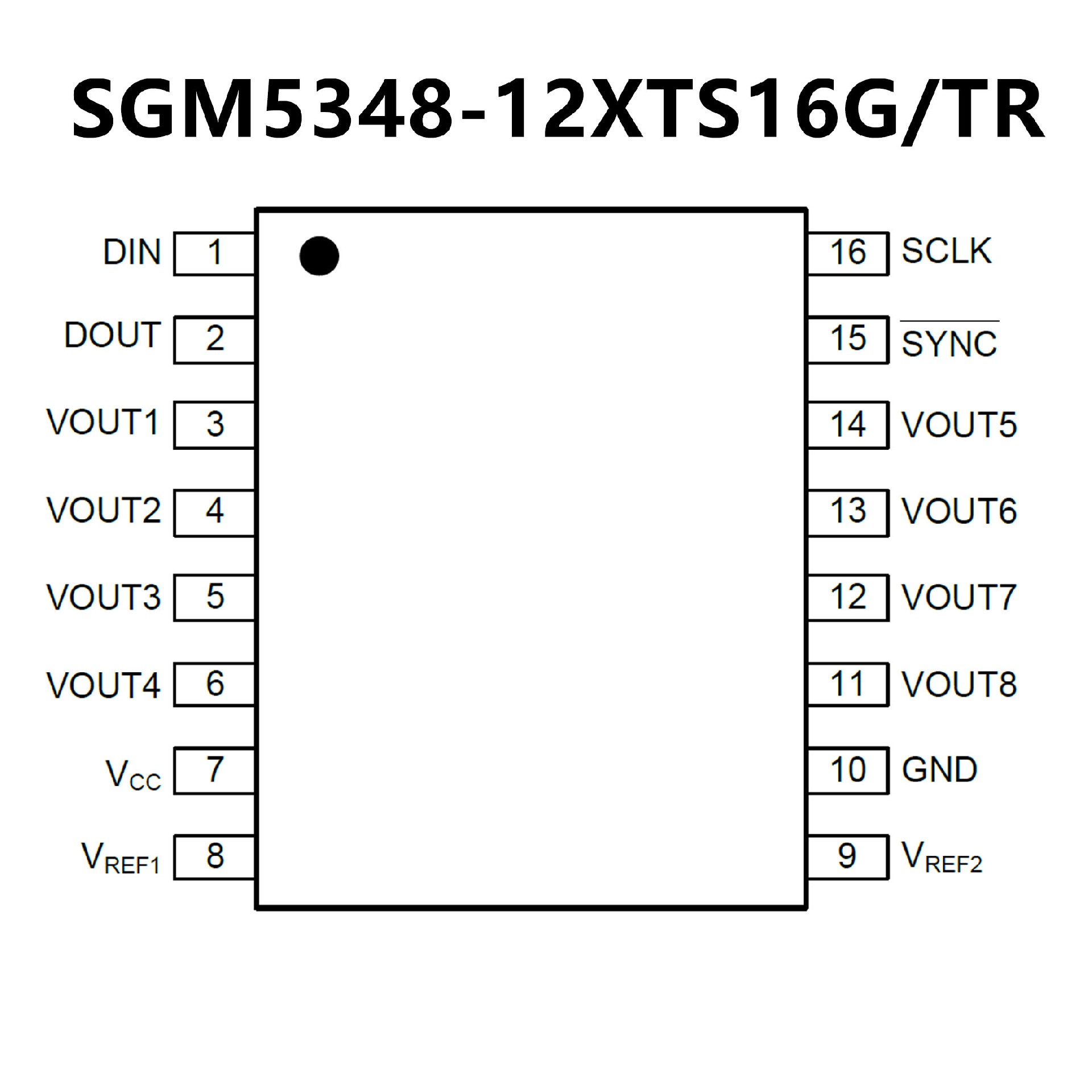

SGM5348.pdf? Low Power Consumption (0.5mW/CH)
? Integrating 8 Channels of 12-Bit DAC
? Built-In Rail-to-Rail Output Amplifier:
Sink/Source Current with Short Current Control
? Daisy-Chain Capability
? Simultaneous 8 Channels Output Updating
? Individual Channel Power-Down Capability
0.6μA ICC for Power-Down Mode
? 0.1% Gain Error for All Channels
? Interface Sees No Quiescent Current when VBUS < VCC
? Power-On Reset: Output Reset to GND
? Serial Data Input: 40MHz Operation
? TTL Compatible Input Logic Level
? Wide Power Supply Range: 2.7V to 5.5V
? Dual Reference Voltages with Range of 0.5V to VCC
? -40℃ to +125℃ Operating Temperature Range
? Available in Green TSSOP-16 and TQFN-3×3-16L
Packages

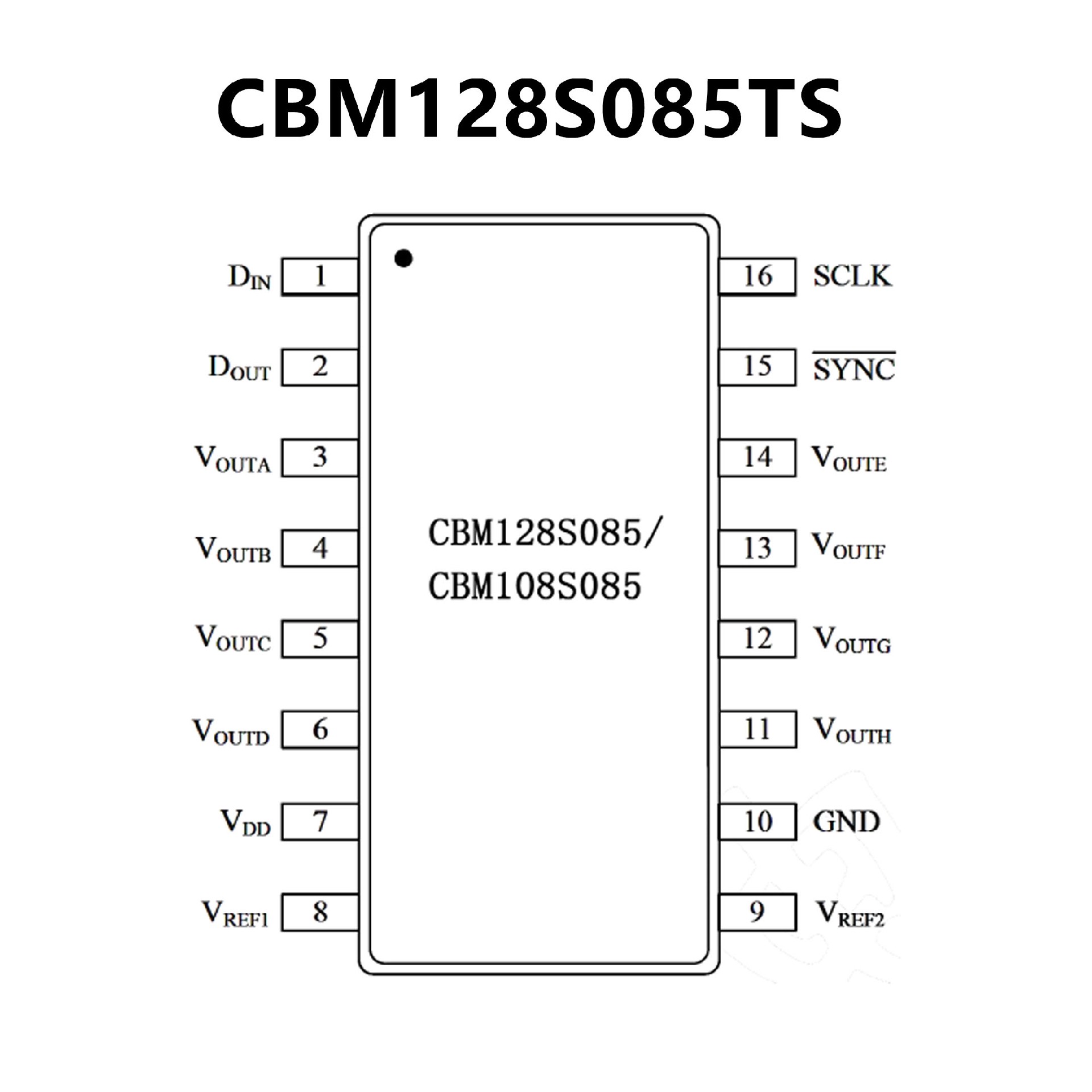

? 8 通道，TSSOP 封裝，保證單調性
? 低功耗工作: 540uA @ 3V, 600μA @ 5V
? 軌到軌電壓輸出
? 菊花鏈工作模式
? 多通道同時輸出更新
? 單通道選擇性休眠
? 2.7V ~ 5.5V 供電范圍
? 兩路0.5V ~ VA 參考電壓
? -40℃ ~ +125℃ 工作溫度范圍
? 上電和斷電兩種復位方式，復位至0V
