8 Channels, 8-Bit Digital-to-Analog Converter with Output Operational Amplifier, SGM5348-8 Replace DAC088S085.
FEATURES

? Low Power Consumption (0.5mW/CH)
? Integrating 8 Channels of 8-Bit DAC
? Built-in Rail-to-Rail Output Amplifier:
  Sink/Source Current with Short Current Control
? Daisy-Chain Capability
? Simultaneous 8 Channels Output Updating
? Individual Channel Power-Down Capability
  0.6μA (TYP) ICC for Power-Down Mode
? 0.1% (TYP) Gain Error for All Channels
? Interface Sees No Quiescent Current when VBUS < VCC
? Power-On Reset: Output Reset to GND
? Serial Data Input: Up to 40MHz Operation
? TTL Compatible Input Logic Level
? Wide Power Supply Range: 2.8V to 5.5V
?&nbsp;Dual Reference Voltages with Range of 0.5V to VCC
? -40℃ to +125℃ Operating Temperature Range

? Available in a Green TSSOP-16 Package

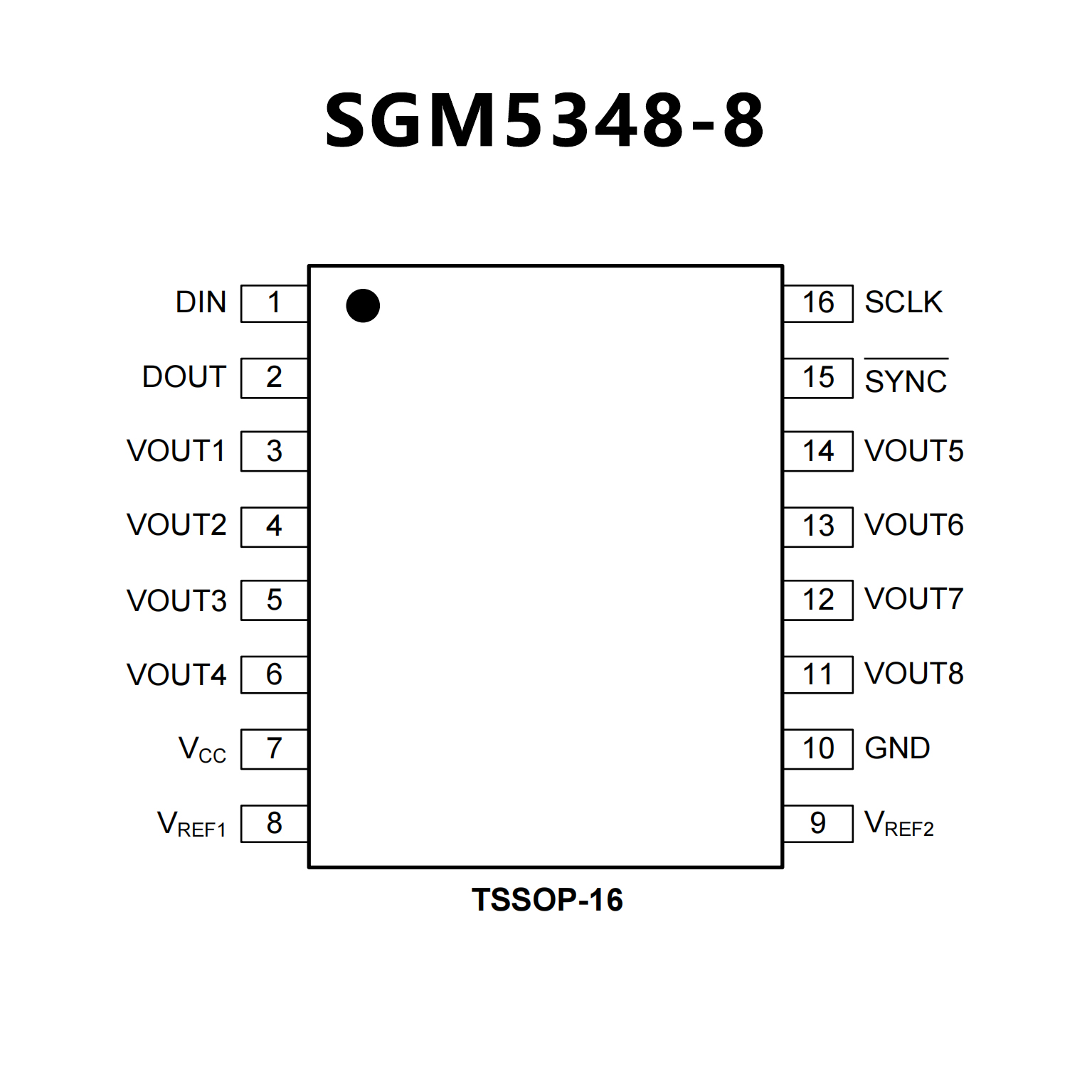

PIN CONFIGUTION
優勢替代
DAC088S085 DAC088S085.pdf

No.14579

FEATURES

? Ensured Monotonicity
? Low Power Operation
? Rail-to-Rail Voltage Output
? Daisy Chain Capability
? Power-On Reset to 0 V
? Simultaneous Output Updating
? Individual Channel Power Down Capability
? Wide Power Supply Range (2.7 V to 5.5 V)
? Dual Reference Voltages With Range of 0.5 V to VA
? Operating Temperature Range of –40°C to 125°C
? Industry's Smallest Package
? Key Specifications
  – Resolution: 8 Bits
  – INL: ±0.5 LSB (Maximum)
  – DNL: 0.15 / –0.1 LSB (Maximum)
  – Settling Time: 4.5 μs (Maximum)
  – Zero Code Error: 15 mV (Maximum)
  – Full-Scale Error: –0.75 %FSR (Maximum)
  – Supply Power :
    – Normal: 1.95 mW (3 V) / 4.85 mW (5 V) Typical
  &nbsp; – Power Down: 0.3 μW (3 V) / 1 μW (5 V) Typical

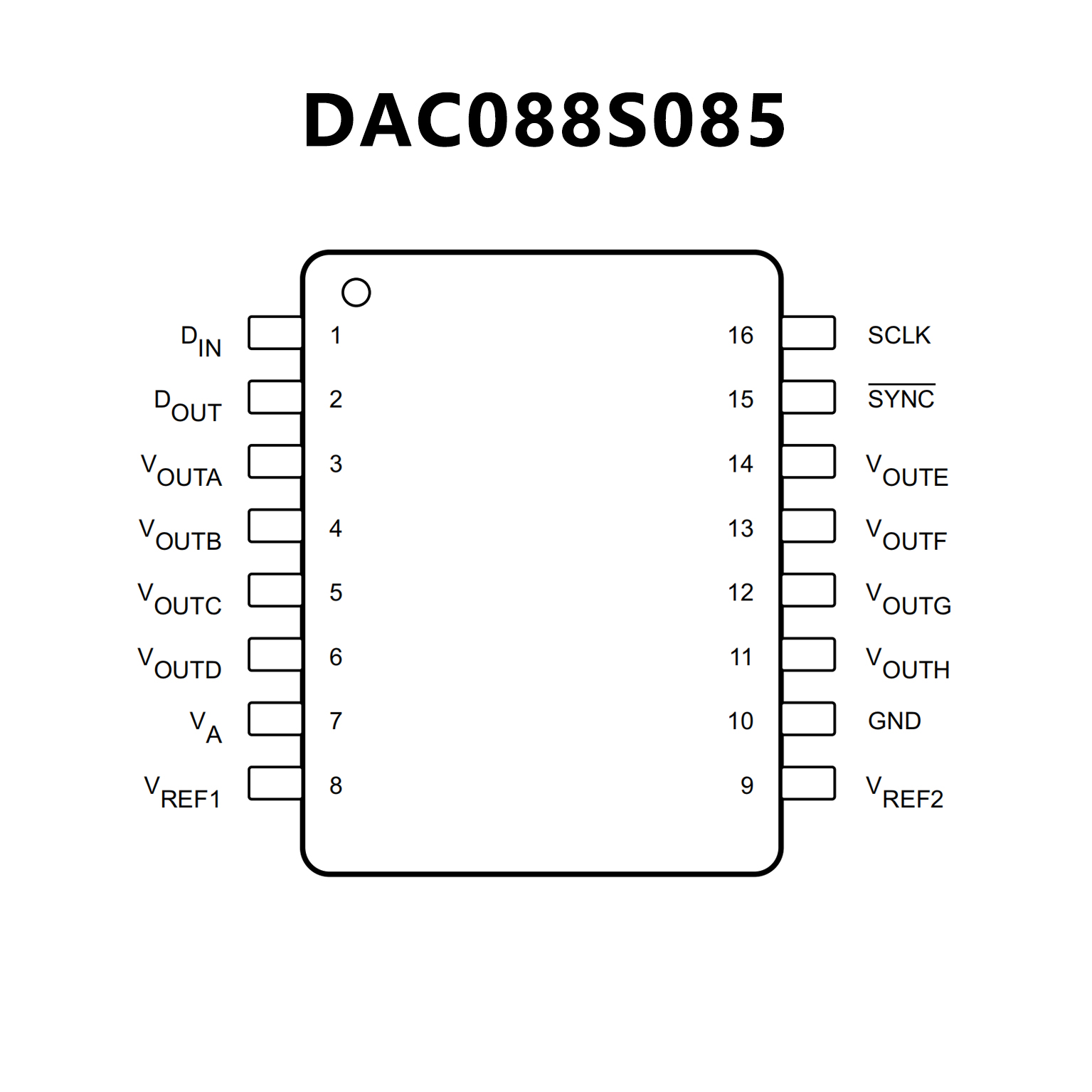

PIN CONFIGUTION
