8 Channels, 16-Bit, SPI Interface, Voltage-Output Digital-to-Analog Converter, SGM5349-16 Replace AD5668.
SGM5349-16
SGM5349-16.pdf
SGM5349-16.pdfFEATURES
? Power Supply Range: 2.7V to 5.5V
? Power Down to 1μA at 5.5V
? Monotonicity Guaranteed by Design
? Power-On Reset to Zero-Scale or Midscale
? 3 Power-Down Modes
? Hardware nLDAC Function
? nCLR Function to Programmable Code
? Rail-to-Rail Buffered Voltage-Output Operation
? Available in Green TSSOP-16 and TQFN-4×4-16L
Packages

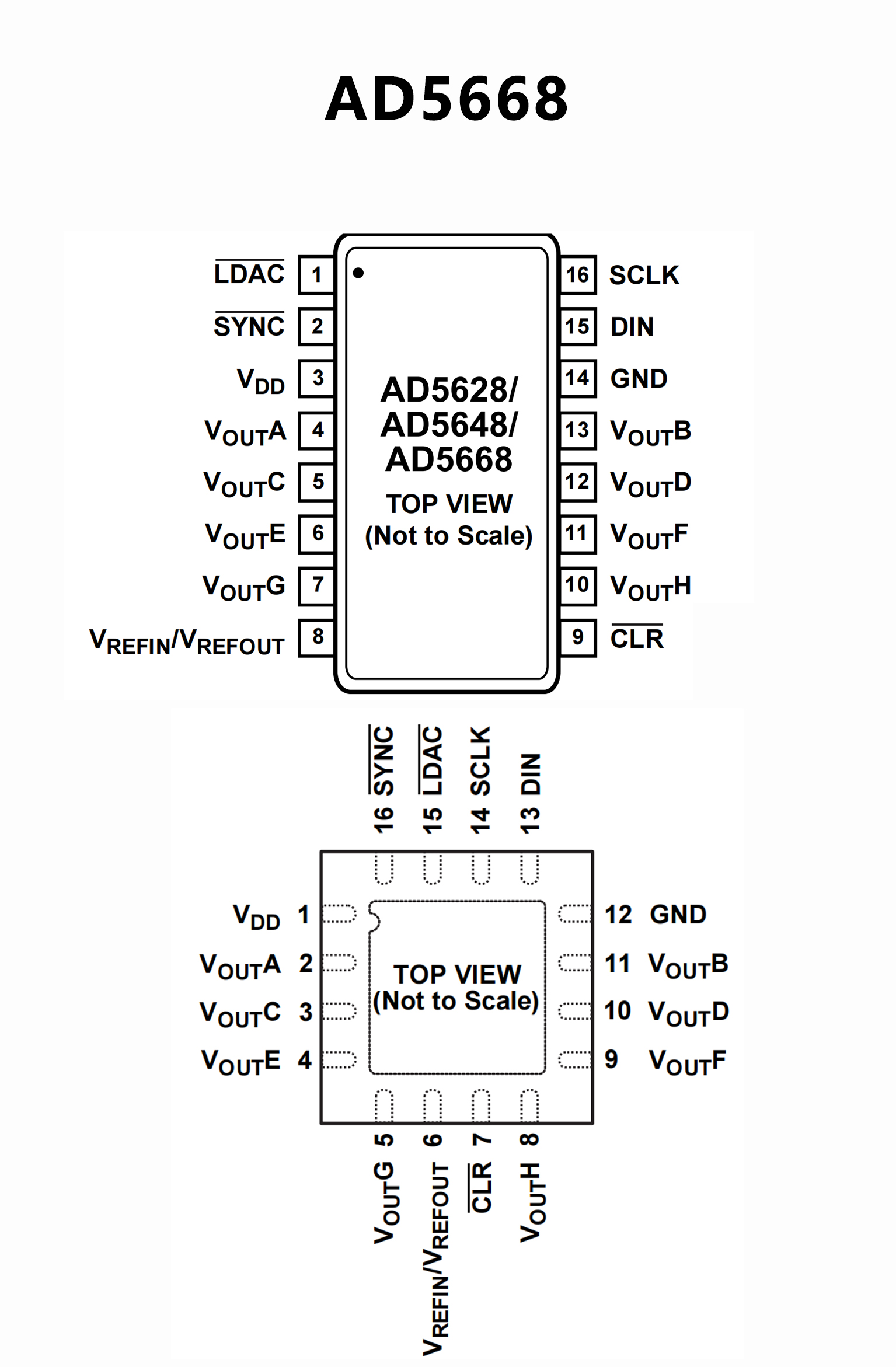

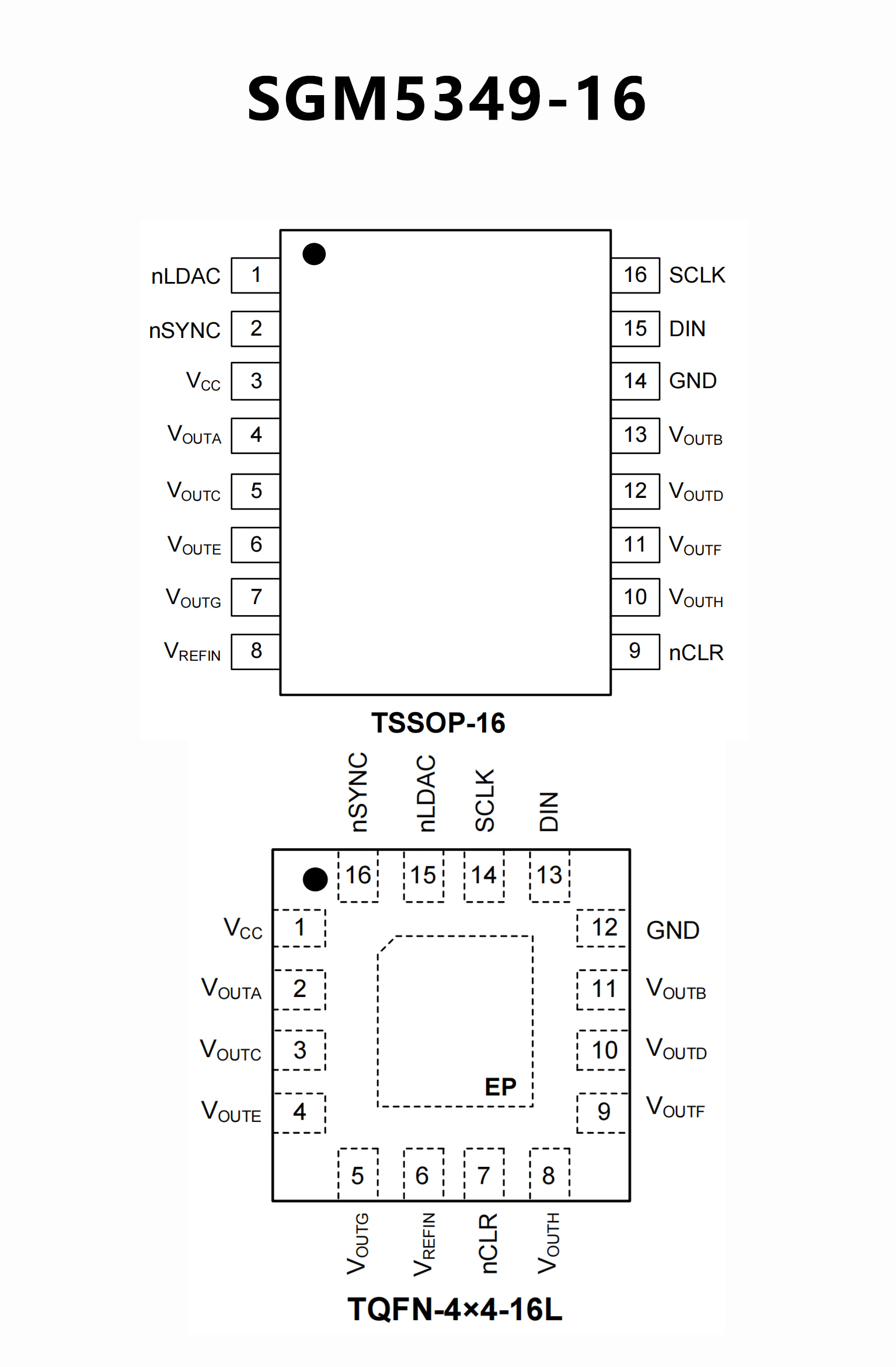

PIN CONFIGUTION
優勢替代
FEATURES
? Low power, small footprint, pin-compatible octal DACs
AD5668: 16 bits
AD5648: 14 bits
AD5628: 12 bits
? 14-lead/16-lead TSSOP, 16-lead LFCSP, and 16-ball WLCSP
? On-chip 1.25 V/2.5 V, 5 ppm/°C reference
? Power down to 400 nA at 5 V, 200 nA at 3 V
? 2.7 V to 5.5 V power supply
? Guaranteed monotonic by design
? Power-on reset to zero scale or midscale
? 3 power-down functions
? Hardware LDAC and LDAC override function
? CLR function to programmable code
? Rail-to-rail operation
PIN CONFIGUTION
