16-Bit, I2C Interface, Voltage-Output Digital-to-Analog Converter, SGM5355-16 Replace DAC8571.
SGM5355-16
SGM5355-16.pdf
SGM5355-16.pdfFEATURES
? Power Supply Range: 2.7V to 5.5V
? 16-Bit DAC, Monotonicity Guaranteed by Design
? 6LSB (TYP) Relative Accuracy
? Low Power Operation: 100μA (TYP) at 2.7V
? Power-On Reset to Zero-Scale
? 10μs (TYP) Settling Time
? I2C Serial Interface
? Rail-to-Rail Buffered Voltage-Output Operation
? Binary Code Input
? Power-Down Function
? Available in Green WLCSP-0.82×1.22-6B and
MSOP-8 Packages

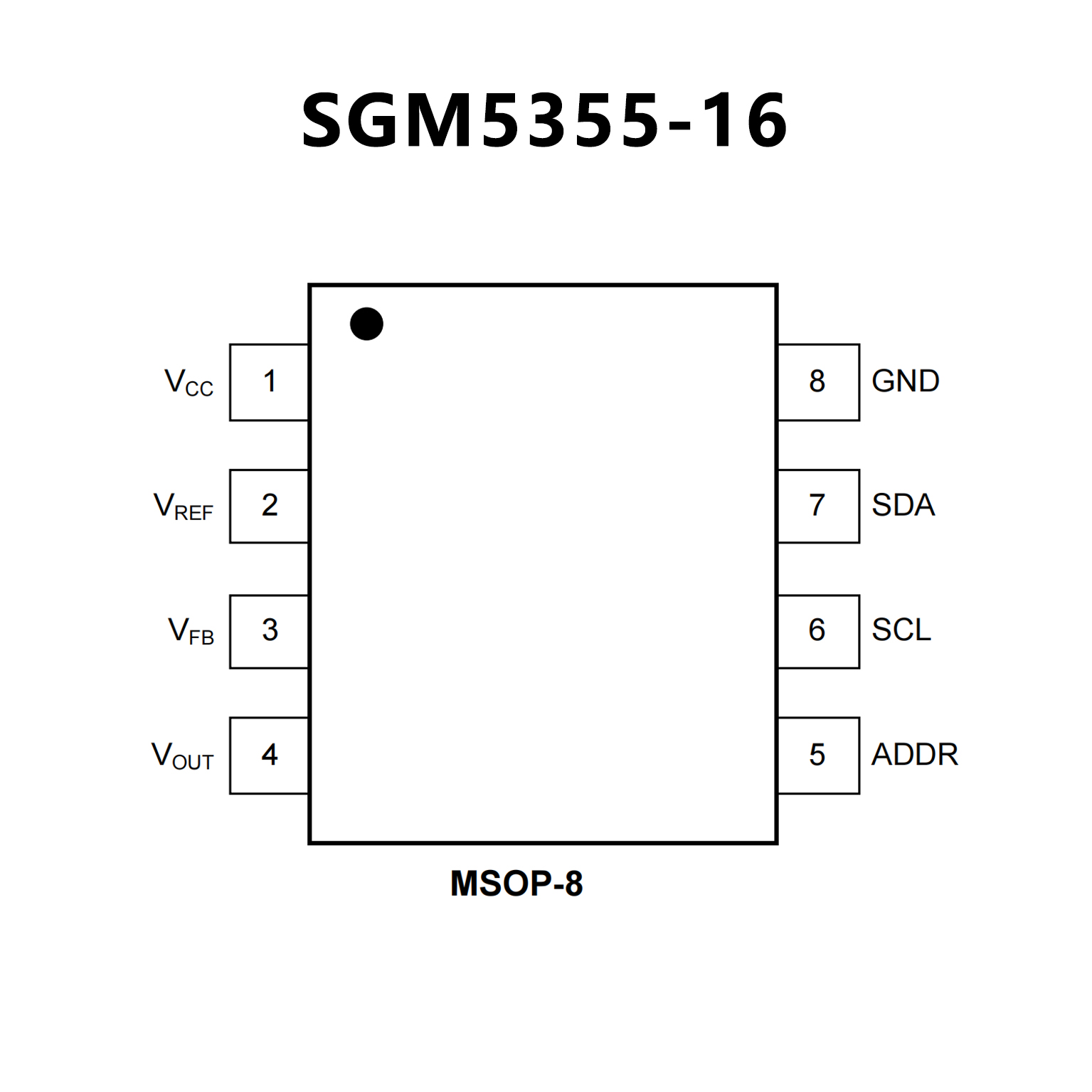

PIN CONFIGUTION
優勢替代
FEATURES
? Micropower Operation: 160 μA @ 5 V
? Power-On Reset to Zero
? Single Supply: +2.7 V to +5.5 V
? 16-Bit Monotonic
? Settling Time: 10 μs to ±0.003% FSR
? I2C? Interface With High-Speed Mode
? Supports Data Receive and Transmit
? On-Chip Rail-to-Rail Output Buffer
? Double-Buffered Input Register
? Supports Synchronous Multichannel Update
? Offset Error: ±1 mV max at 25&Deg;C
? Full-Scale Error: ±3 mV max at 25°C
? Small 8 Lead MSOP Package
PIN CONFIGUTION
