Dual Low Noise Operational Amplifier, SGM5532 Replace MC4558.
SGM5532
SGM5532.pdf
SGM5532.pdfFEATURES
? Ultra-Low Input Voltage Noise:
5nV/√Hz (TYP) at 1kHz
? Unity-Gain Bandwidth: 8.5MHz (TYP)
? High Slew Rate: 18V/μs (TYP)
? CMRR: 140dB (TYP)
? High Open-Loop Gain: 140dB (TYP)
? -40℃ to +85℃ Operating Temperature Range
? Available in a Green SOIC-8 Package

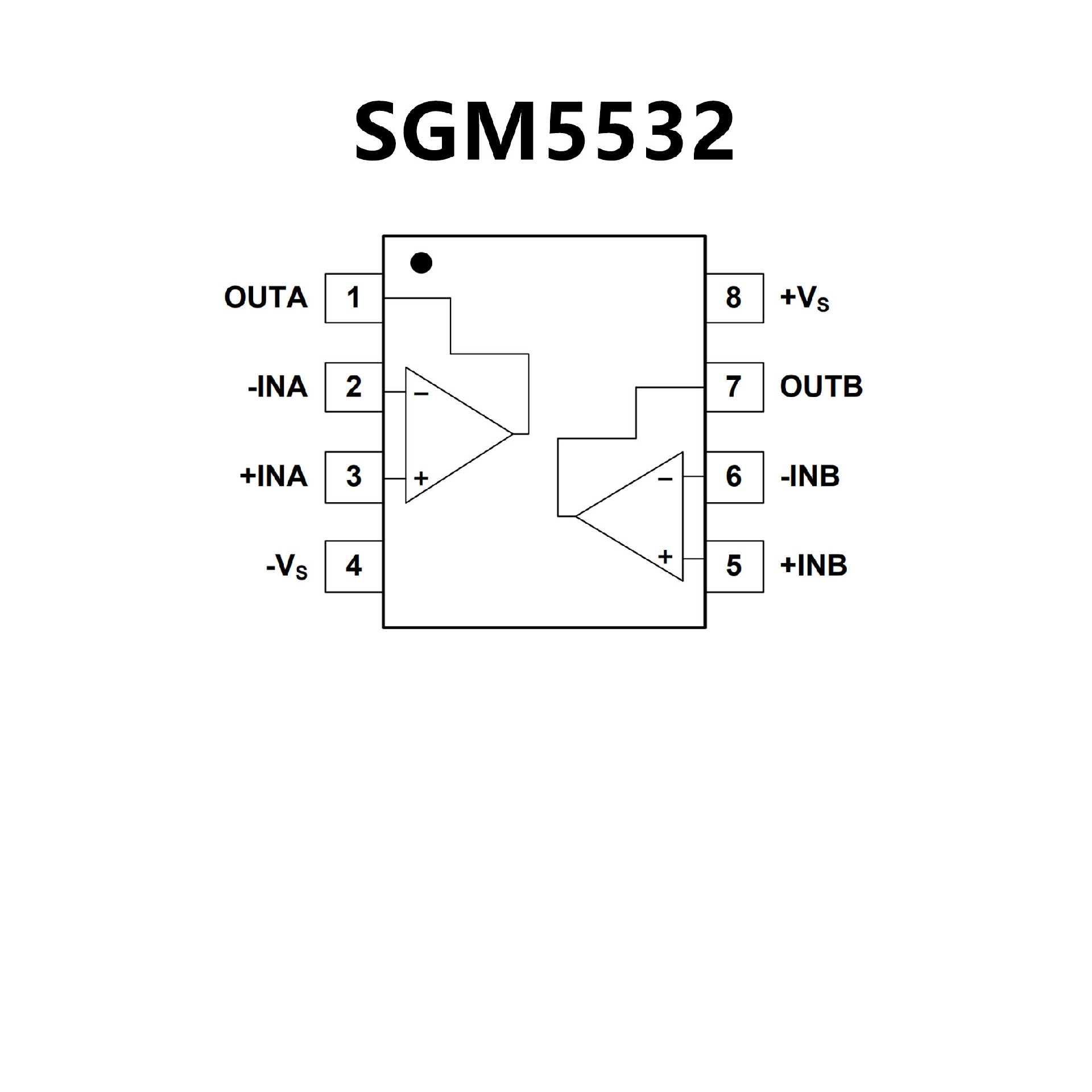

PIN CONFIGUTION
優勢替代
FEATURES
? Internally compensated
? Short-circuit protection
? Gain and phase match between amplifier
? Low power consumption
? Pin-to-pin compatible with MC1458/LM358
? Gain bandwidth (at 100 kHz): 5.5 MHz

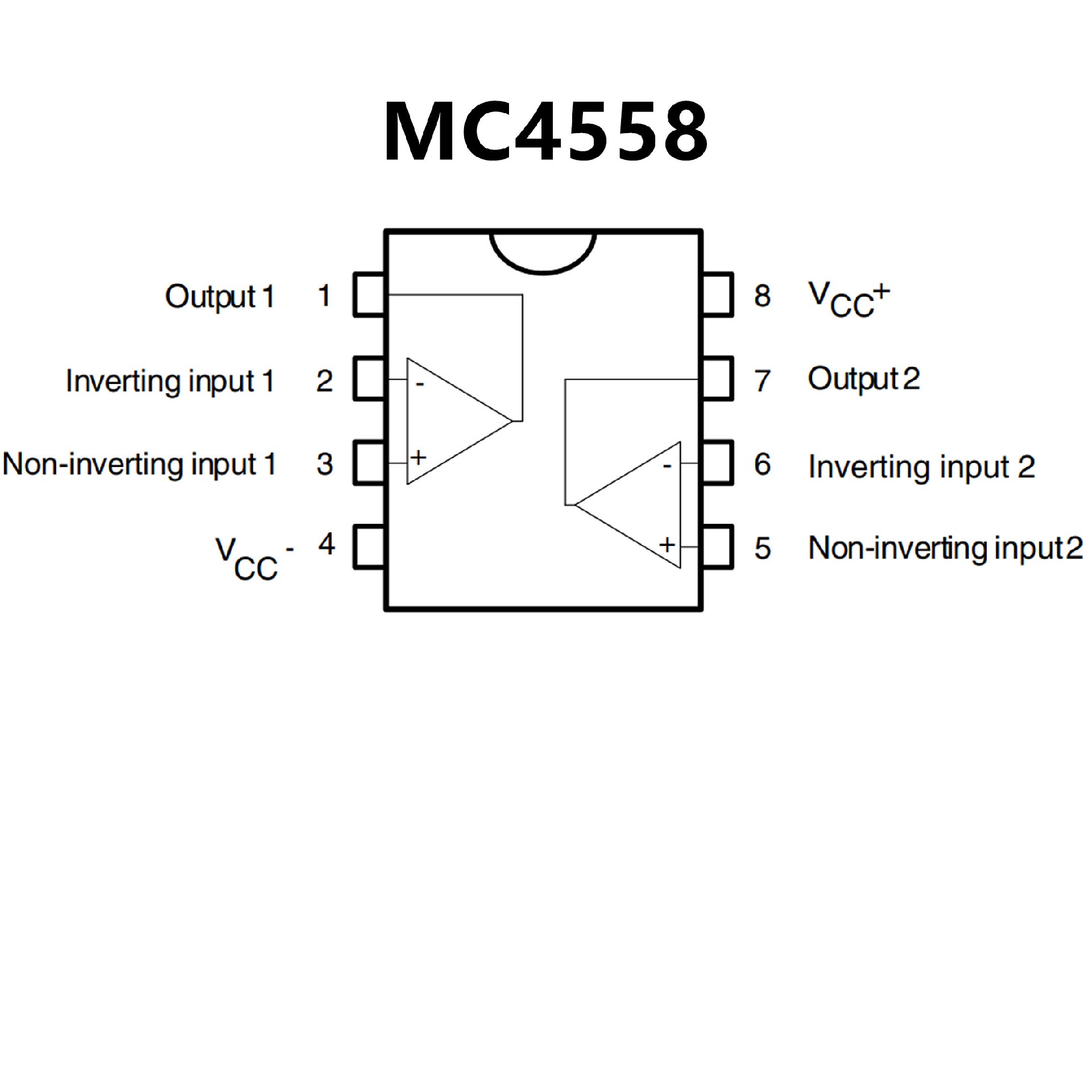

PIN CONFIGUTION
