Dual Low-Noise Operational Amplifier,SGM5532 Replace NJM2115.
SGM5532
SGM5532.pdf
SGM5532.pdfFEATURES
? Equivalent Input Noise Voltage:
5nV/ Hz (TYP) at 1kHz
? Unity-Gain Bandwidth: 8.5MHz (TYP)
? Common Mode Rejection Ratio: 140dB (TYP)
? High DC Voltage Gain: 140dB (TYP)
? High Slew Rate: 18V/μs (TYP)
? -40℃ to +85℃ Operating Temperature Range
? Available in a Green SOIC-8 Package

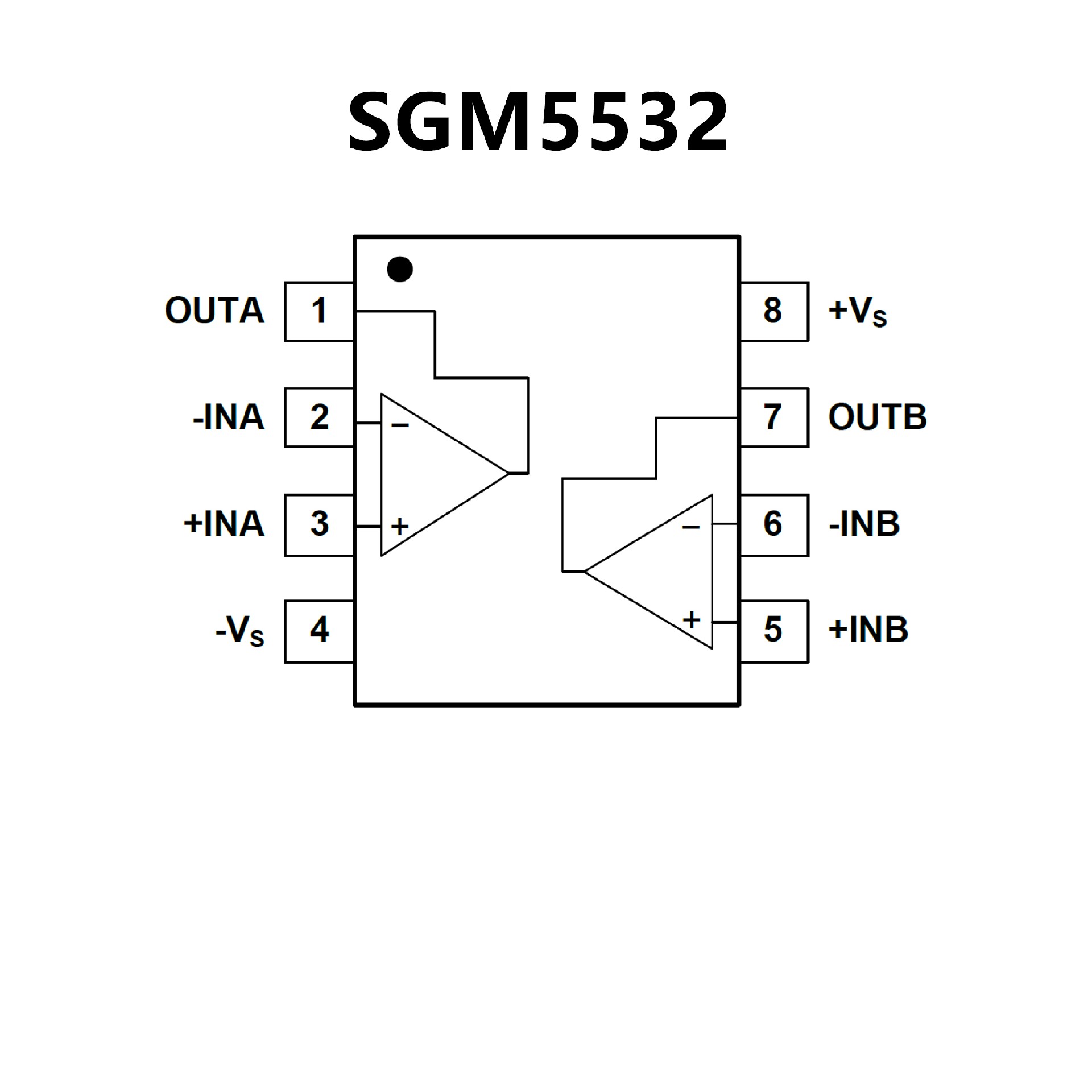

PIN CONFIGUTION
優勢替代
FEATURES
? Operating Voltage ( ±1V~±7V )
? Low Saturation Output Voltage
( ±2.0VP-P @ V+=±2.5V )
? Slew Rate ( 4V/μs typ. )
? Unity Gain Bandwidth ( 12MHz typ. )
? Package Outline DIP8,DMP8,SIP8,SSOP8,
MSOP8(TVSP8)MEET JEDEC MO-187-DA / THINTYPE
? Bipolar Technology

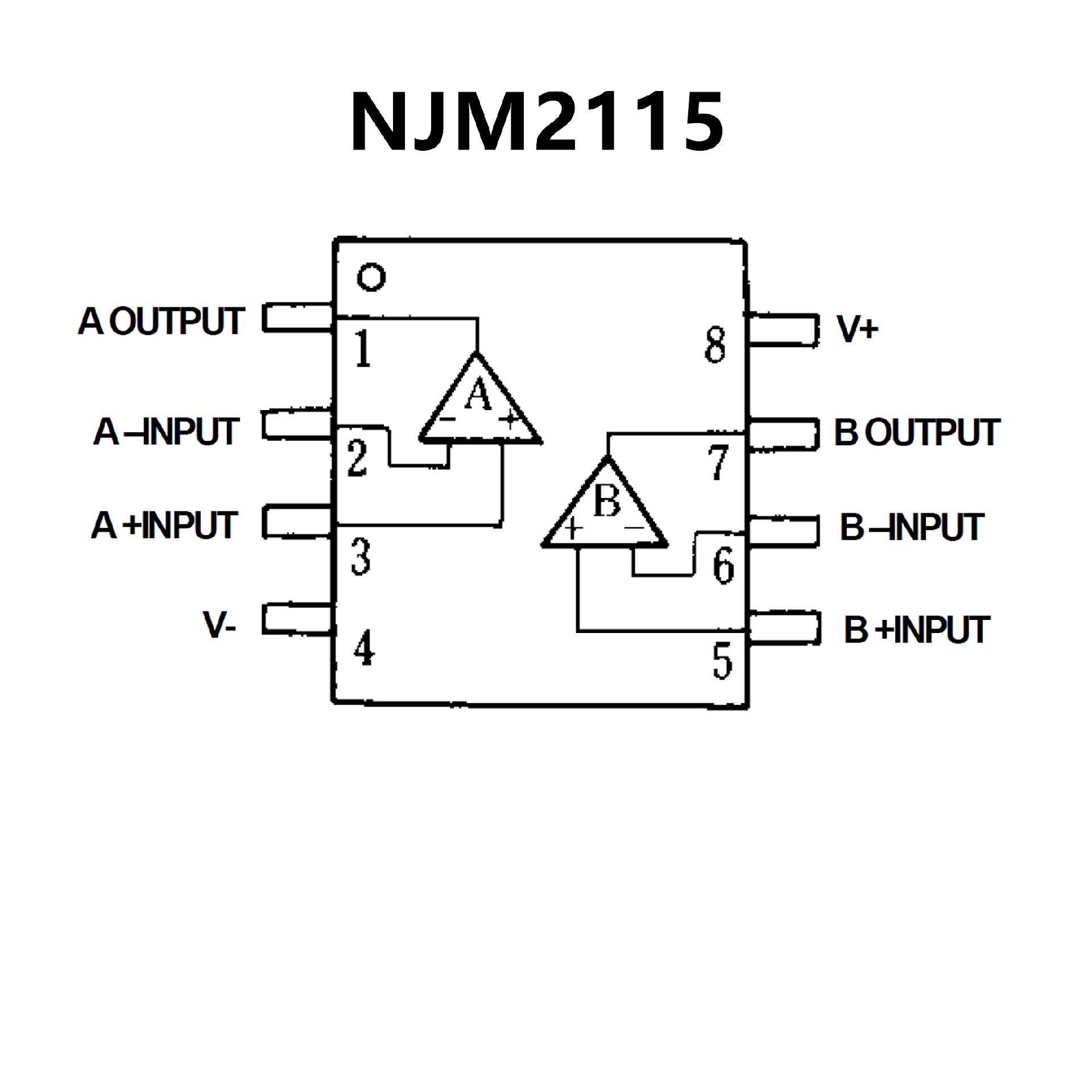

PIN CONFIGUTION
