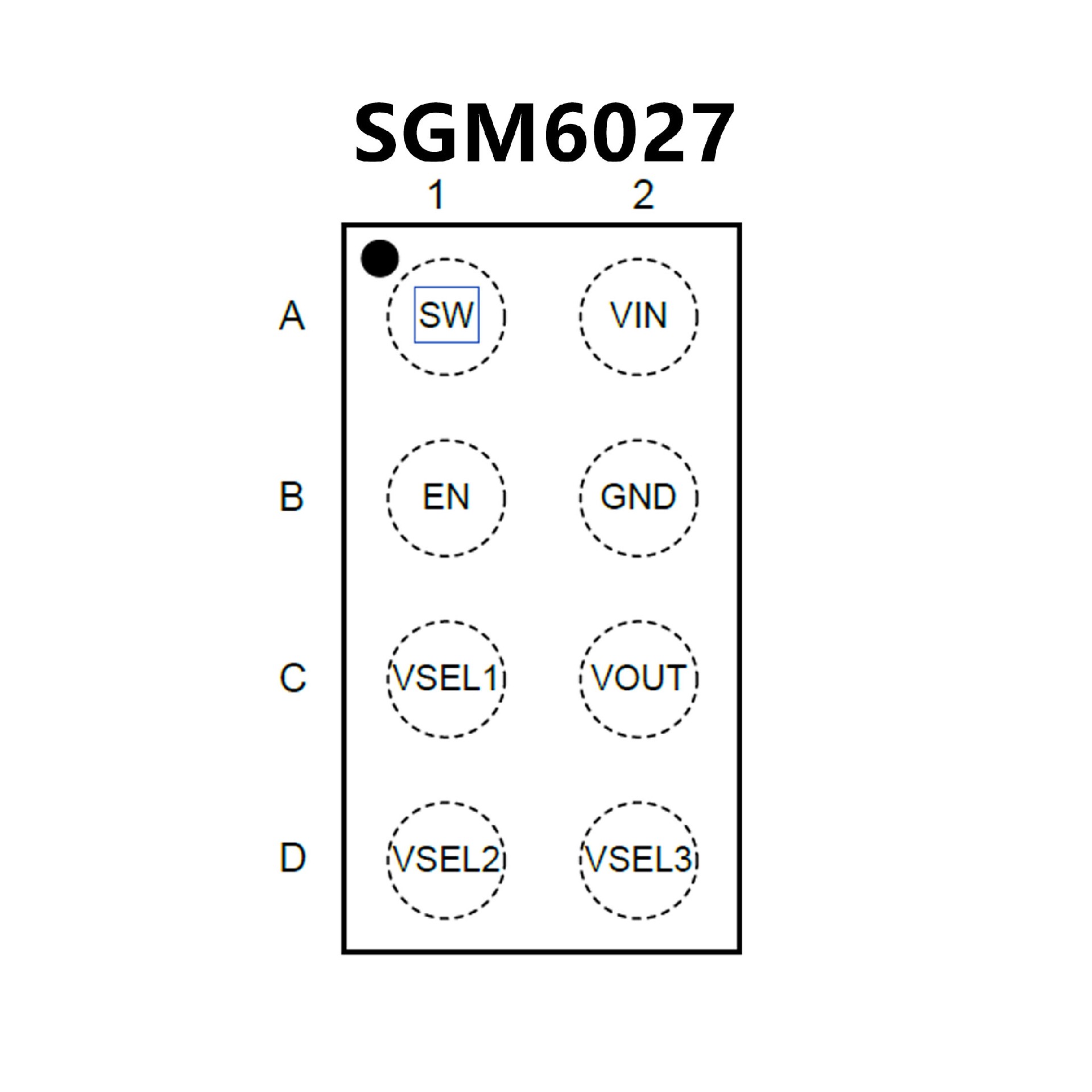

SGM6027.pdf? Input Voltage Range: 2.5V to 5.5V
? 8 Selectable Output Voltage Levels
SGM6027: 1.2V to 3.3V
SGM6027A: 0.7V to 3.1V
SGM6027B: 1.3V to 3.1V
? Output Current
SGM6027: 600mA Continuous, 1310mA Peak
SGM6027A: 600mA Continuous, 870mA Peak
SGM6027B: 600mA Continuous, 870mA Peak
? 580nA Typical Quiescent Current
? PFM Operation
? Up to 92% Efficiency
? Internal Compensation
? Enable Input
? Output Voltage Discharge
? Over-Current Protection (OCP)
? Under-Voltage Lockout (UVLO) Protection
? Over-Temperature Protection (OTP)
? Available in a Green WLCSP-0.8×1.6-8B Package

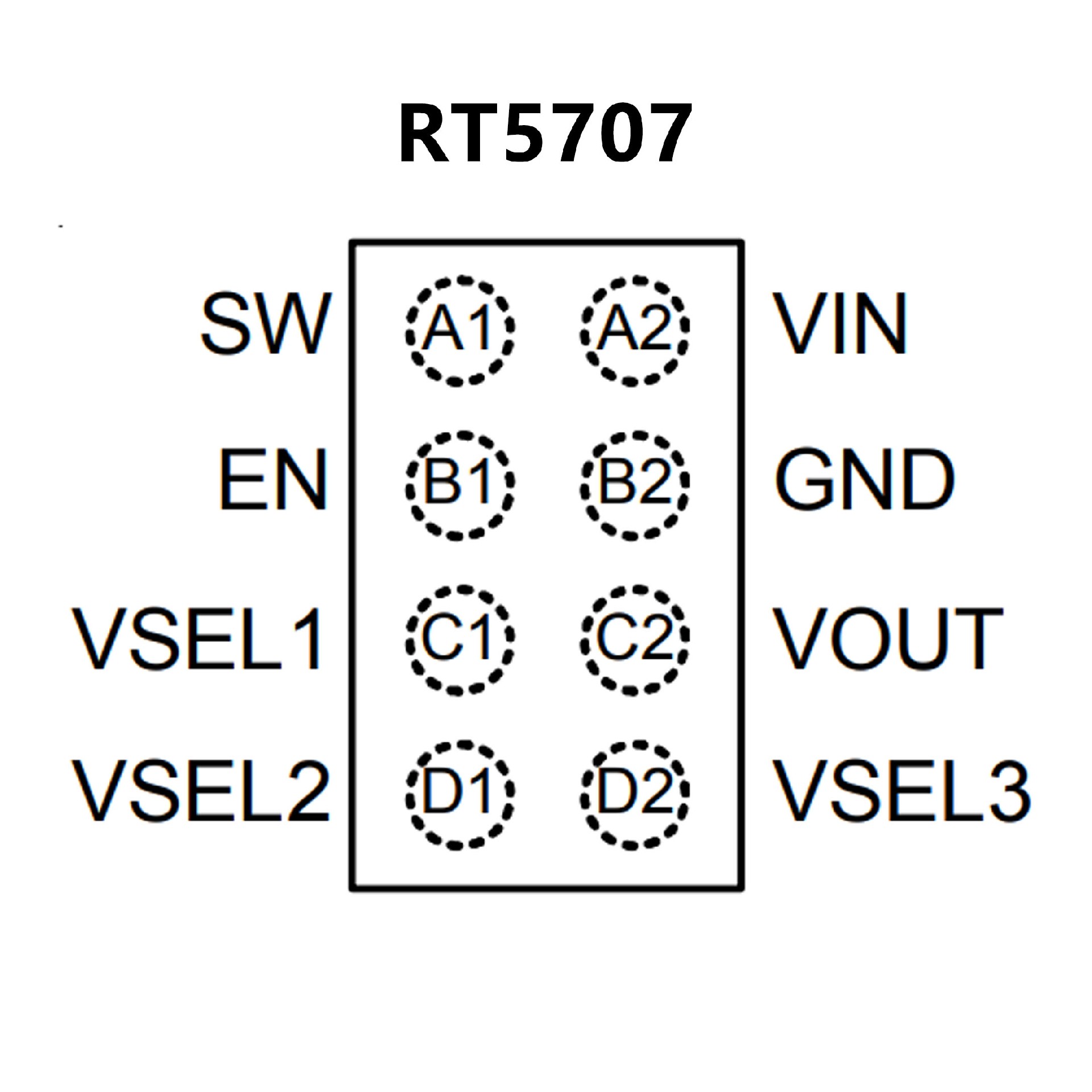

? Input Voltage Range : 2.2V to 5.5V
? Programmable Output Voltage 8-Level
? RT5707 1.2V to 3.3V
? RT5707A 0.7V to 3.1V
? Typ. 360nA Quiescent Current
? PSM Operation
? Up to 94% Efficiency
? Internal Compensation
? Output Voltage Discharge
? Over-Current Protection
? Over-Temperature Protection
? Output Current
? RT5707 600mA, Peak to 1A
? RT5707A 400mA, Peak to 0.5A
? Automatic Transition to 100%
Duty Cycle Operation
