SGM6027.pdf? Input Voltage Range: 2.5V to 5.5V
? 8 Selectable Output Voltage Levels
SGM6027: 1.2V to 3.3V
SGM6027A: 0.7V to 3.1V
SGM6027B: 1.3V to 3.1V
? Output Current
SGM6027: 600mA Continuous, 1310mA Peak
SGM6027A: 600mA Continuous, 870mA Peak
SGM6027B: 600mA Continuous, 870mA Peak
? 580nA Typical Quiescent Current
? PFM Operation
? Up to 92% Efficiency
? Internal Compensation
? Enable Input
? Output Voltage Discharge
? Over-Current Protection (OCP)
? Under-Voltage Lockout (UVLO) Protection
? Over-Temperature Protection (OTP)
? Available in a Green WLCSP-0.8×1.6-8B Package
? Input voltage range VIN from 2.15 V to 5.5 V
? Input voltage range down to 2.0 V once started
? output current
TPS62743 300 mA
TPS627431 400 mA
? 360-nA operational quiescent current
? Up to 90% efficiency at 10-μA output current
? Power save mode operation
? Selectable output voltages
Eight voltage options between 1.2 V to 3.3 V
? Output voltage discharge
? Low output voltage ripple
? Automatic transition to no ripple 100% mode
? RF friendly DCS-Control?
? Total solution size < 10 mm2

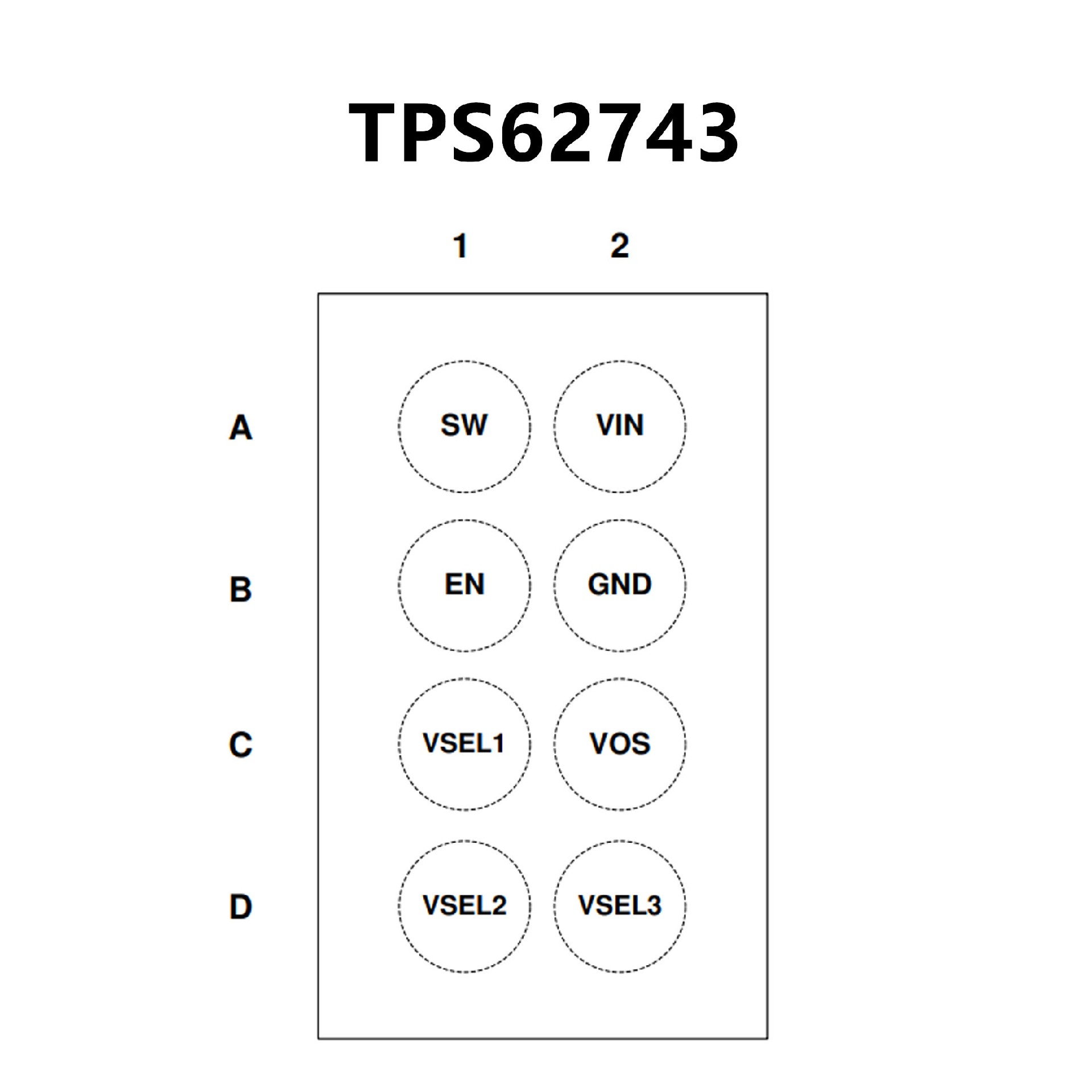

? Small 1.6-mm × 0.9-mm, 8-ball WCSP package
