SGM6061.pdf? Input Voltage Range: 3.8V to 55V
? Adjustable Output Range: 0.8V to 24V
? Up to 95% Efficiency
? PFM Mode at Light Loads
? Quiescent Current: 131μA (TYP)
? Less than 18μA Shutdown Current
? Internal HS Power MOSFET RDSON: 250mΩ (TYP)
? Adjustable Switching Frequency: up to 2MHz
? Adjustable Soft-Start Time
? Accurate EN Input Threshold
? Stable with Ceramic Capacitor

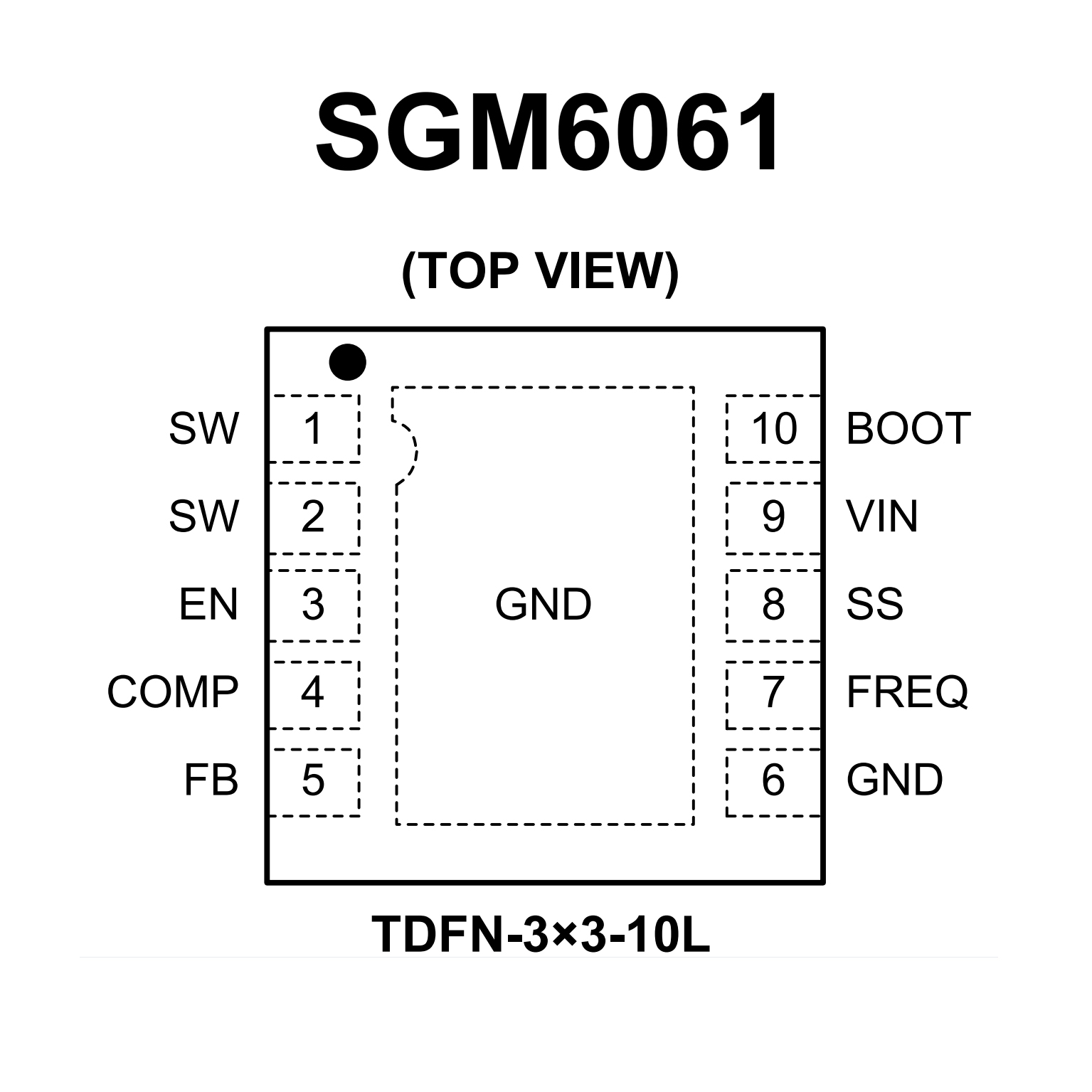

? Available in a Green TDFN-3×3-10L Package
? Guaranteed Industrial/Automotive
Temperature Range Limits
? Wide 3.8V to 55V Operating Input Range
? 300m? Internal Power MOSFET
? Up to 2MHz Programmable Switching
Frequency
? 140μA Quiescent Current
? Stable with Ceramic Capacitor
? External Soft-Start
? Up to 95% Efficiency
? Output Adjustable from 0.8V to 52V

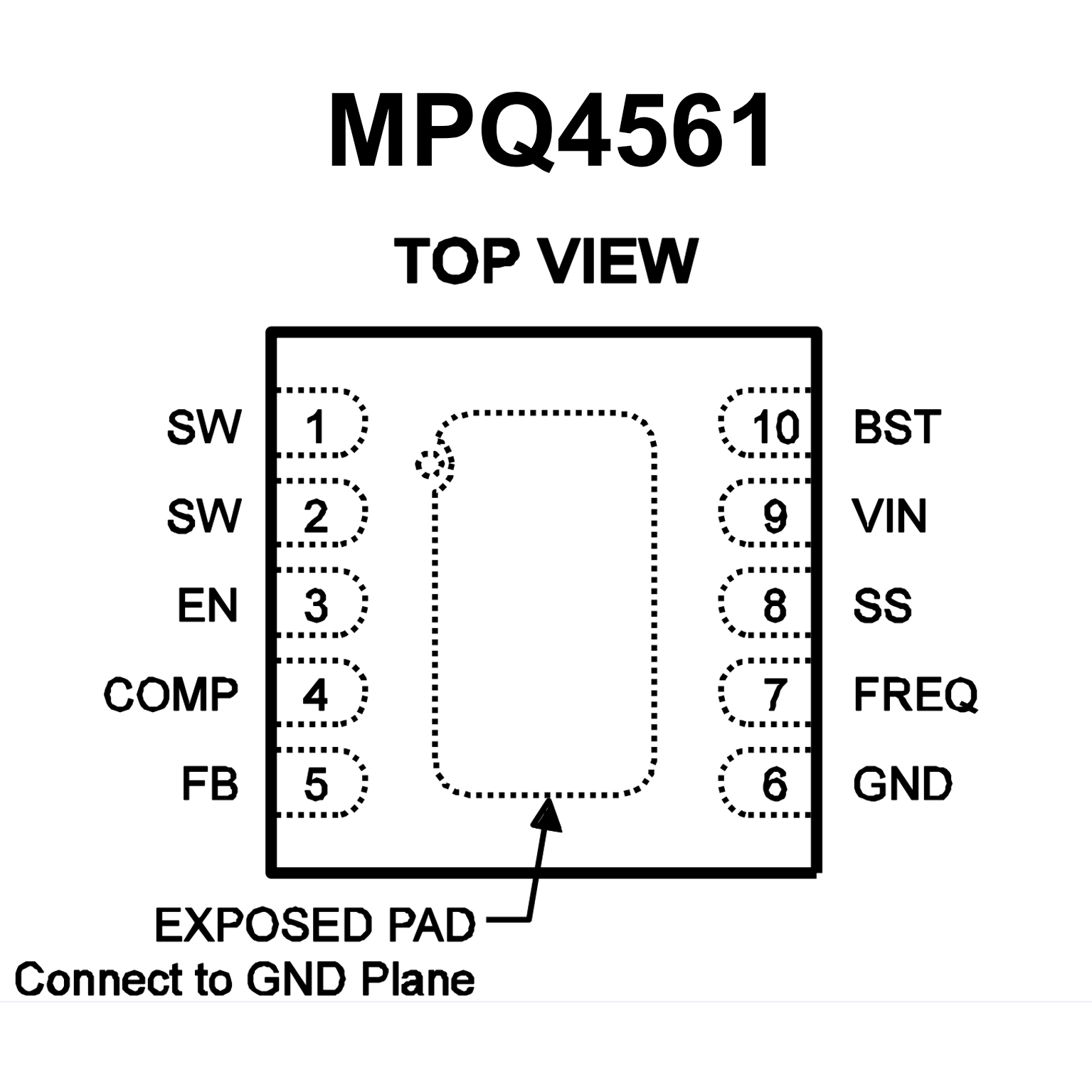

? Available in QFN10 (3mmx3mm) package
? AEC-Q100 Qualified
