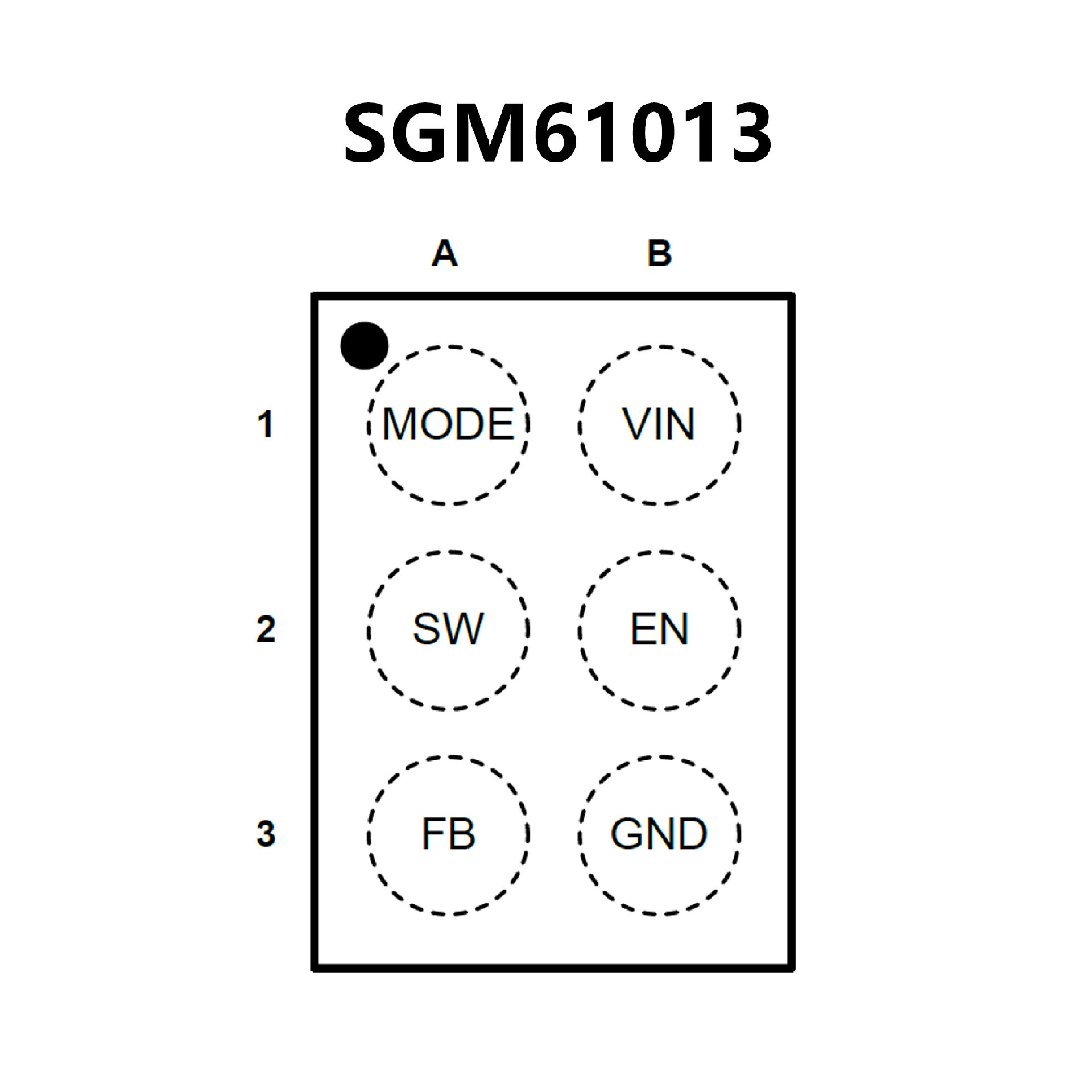

SGM61013.pdf? 2.3V to 5.5V Input Voltage Range
? Fixed Output Voltage Options
from 1.2V to 3.3V
? 1A Output Current
? 20μA (TYP) Quiescent Current
? Selectable PFM Light Load Operation
? Up to 95% Efficiency
? SGM61013A: 10MHz Switching Frequency
? SGM61013B: 6.5MHz/8MHz
Switching Frequency
? Fast Load Transient Response
? 100% Duty Cycle
? Logic Enable Input
? Soft-Start
? Input Under-Voltage Lockout
? Over-Current Protection
? Thermal Shutdown
? Active Output Discharge
? Available in a Green
WLCSP-0.9×1.2-6B Package

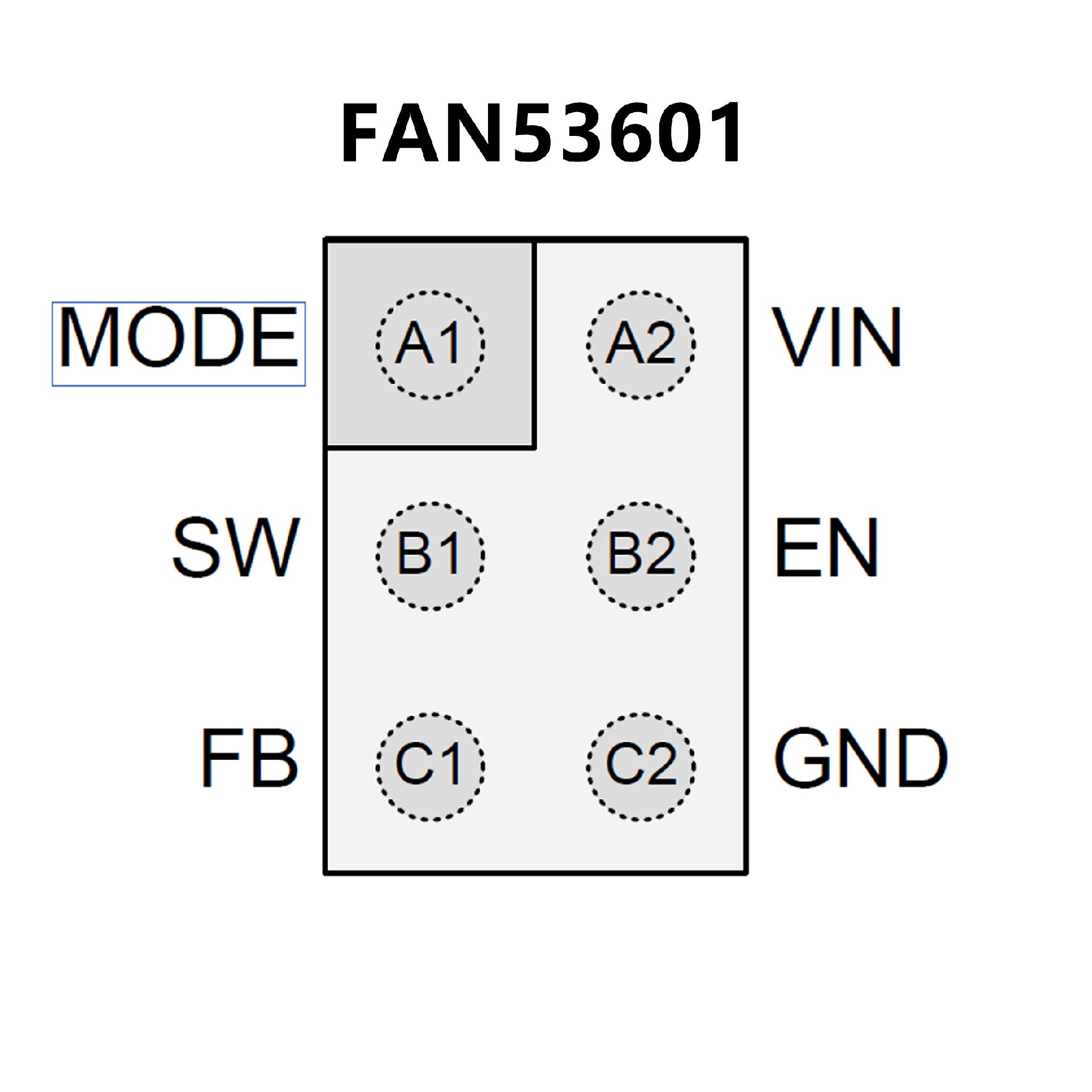

? 600 mA or 1 A Output Current Capability
? 24 μA Typical Quiescent Current
? 6 MHz Fixed-Frequency Operation
? Best-in-Class Load Transient Response
? Best-in-Class Efficiency
? 2.3 V to 5.5 V Input Voltage Range
? Low Ripple Light-Load PFM Mode
? Forced PWM and External Clock Synchronization
? Internal Soft-Start
? Input Under-Voltage Lockout (UVLO)
? Thermal Shutdown and Overload Protection
? Optional Output Discharge
? 6-Bump WLCSP, 0.4 mm Pitch
