SGM61020.pdf? 2.5V to 5.5V Input Voltage Range
? Adjustable Output Voltage from 0.6V to VIN
? Up to 95% Efficiency
? Low RDSON Switches (102mΩ/57mΩ)
? Power-Save Mode for Light Load Efficiency
? 42μA (TYP) Operating Quiescent Current
? 100% Duty Cycle for Low Dropout Operation
? 1.5MHz PWM Switching Frequency
? Power Good Output (SGM61020P Only)
? Over-Current Protection
? vThermal Shutdown Protection
? Input Under-Voltage Lockout (UVLO) Protection
? 40℃ to +125℃ Operating Temperature Range
? Small Packaging:

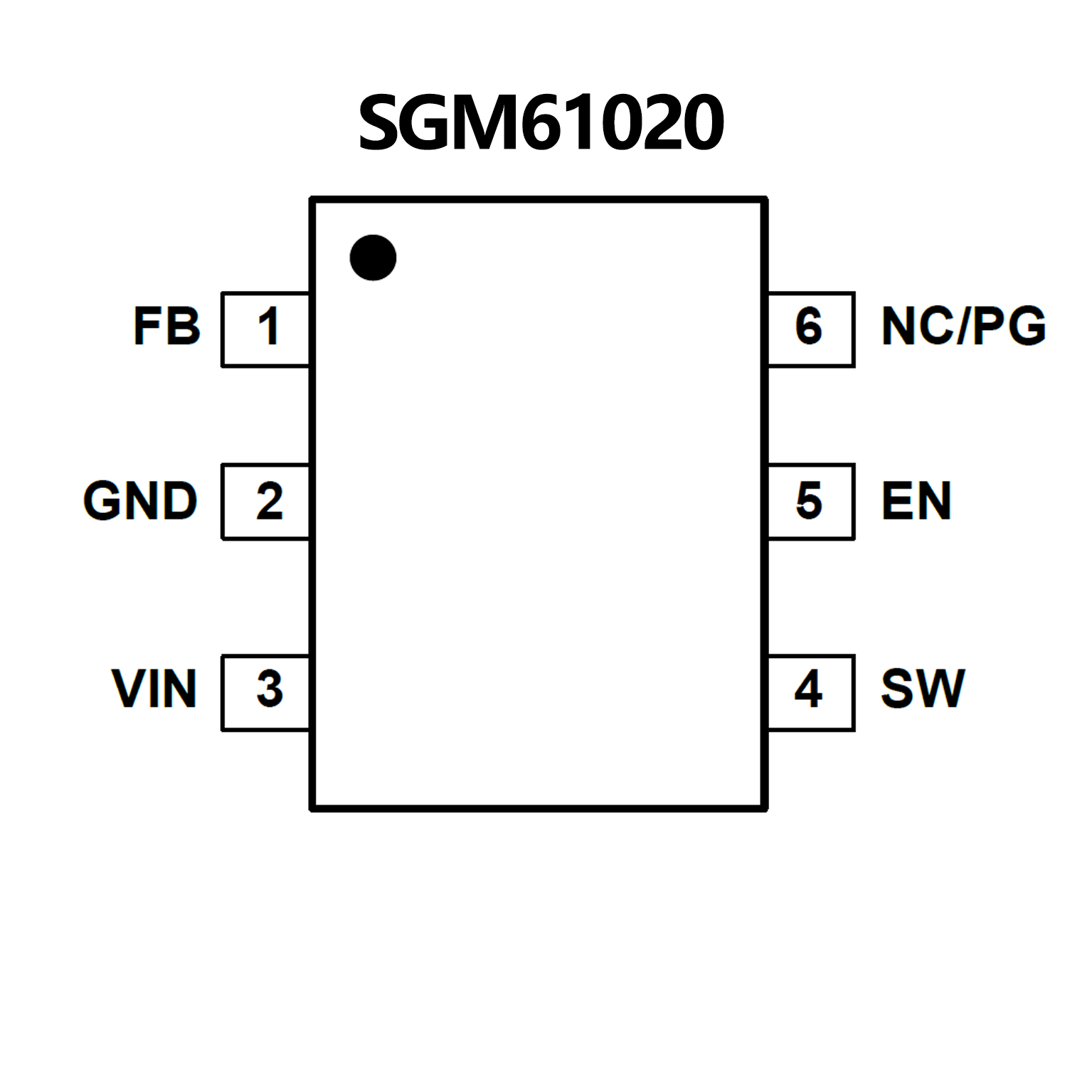

SGM61020: Available in Green SOT-23-5 andSOT-563-6 Packages
SGM61020P: Available in a Green SOT-563-6Package
? 2.7V to 6.0V operating input range
? Up to 1A output current
? Up to 92% peak efficiency
? Internal soft-start
? 1.5MHz switching frequency
? Input under voltage lockout
? Hot-plug in protection
? Short circuit protection
? Thermal protection
? Available in a SOT23-5 package
