SGM61030.pdf? 2.5V to 5.5V Input Voltage Range
? Adjustable Output Voltage from 0.6V to VIN
? Adaptive Off-Time Architecture
? Up to 95% Efficiency
? Low RDSON MOSFET Switches (43mΩ/24mΩ)
? 42μA (TYP) Operating Quiescent Current
? Ultra-Low Quiescent Current in Shutdown Mode
? Pulse-Skip Mode at Light Loads (SGM61030A)
? Continuous Current Mode (SGM61030B)
? 100% Duty Cycle Capability for Low Dropout
? Startup with Pre-biased Output
? Output Discharge Function
? Power Good Output
? Hiccup Mode Short-Circuit Protection
? Thermal Shutdown Protection
? Available in a Green TDFN-2×2-7L Package
? DCS-Control? Topology
? Up to 95% Efficiency
? 17-μA Operating Quiescent Current
? 31mΩ and 23mΩ Power MOSFET Switch
? 2.5-V to 6.0-V Input Voltage Range
? 0.8-V to VIN Adjustable Output Voltage
? Power Save Mode for Light Load Efficiency
? 100% Duty Cycle for Lowest Dropout
? Hiccup Short-Circuit Protection
? Output Discharge
? Power Good Output
? Thermal Shutdown Protection

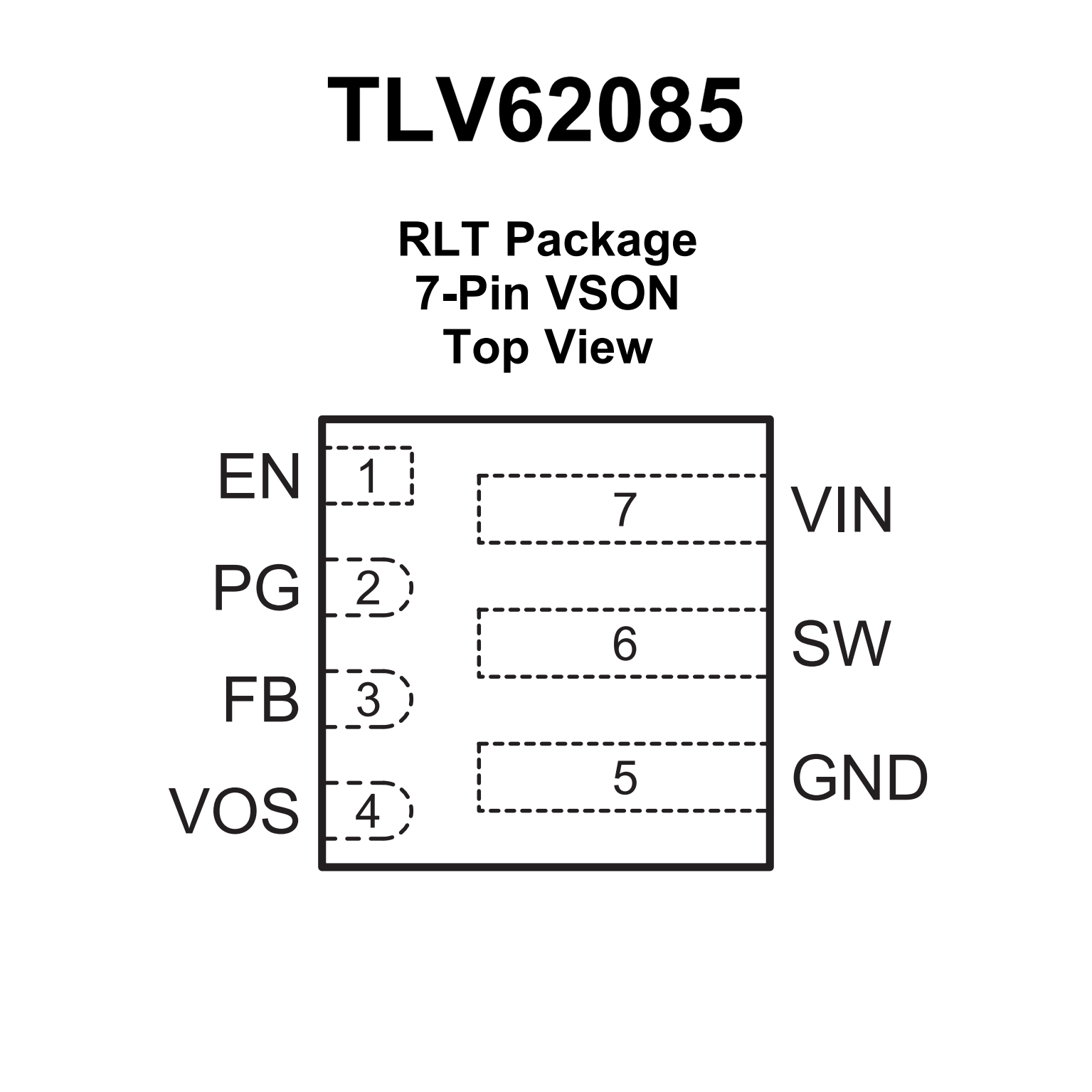

? Available in 2-mm × 2-mm VSON Package
? For Improved Feature Set, See TPS62085
? Create a Custom Design using the TLV62085 with
the WEBENCH? Power Designer
