SGM61032.pdf? 2.5V to 5.5V Input Voltage Range
? 0.6V to VIN Adjustable Output Voltage Range
? Up to 3A Output Current
? 95% Peak Efficiency
? 1.5MHz (TYP) Switching Frequency
? Low RDSON Internal Switches: 58.5mΩ/26.5mΩ
? Improved Light Load Efficiency with PSM
? Low Dropout with 100% Duty Cycle
? Reduce the IQ to 32μA (TYP) when Low Dropout
? 42μA Operating Quiescent Current
? 0.1μA (TYP) Shutdown Quiescent Current

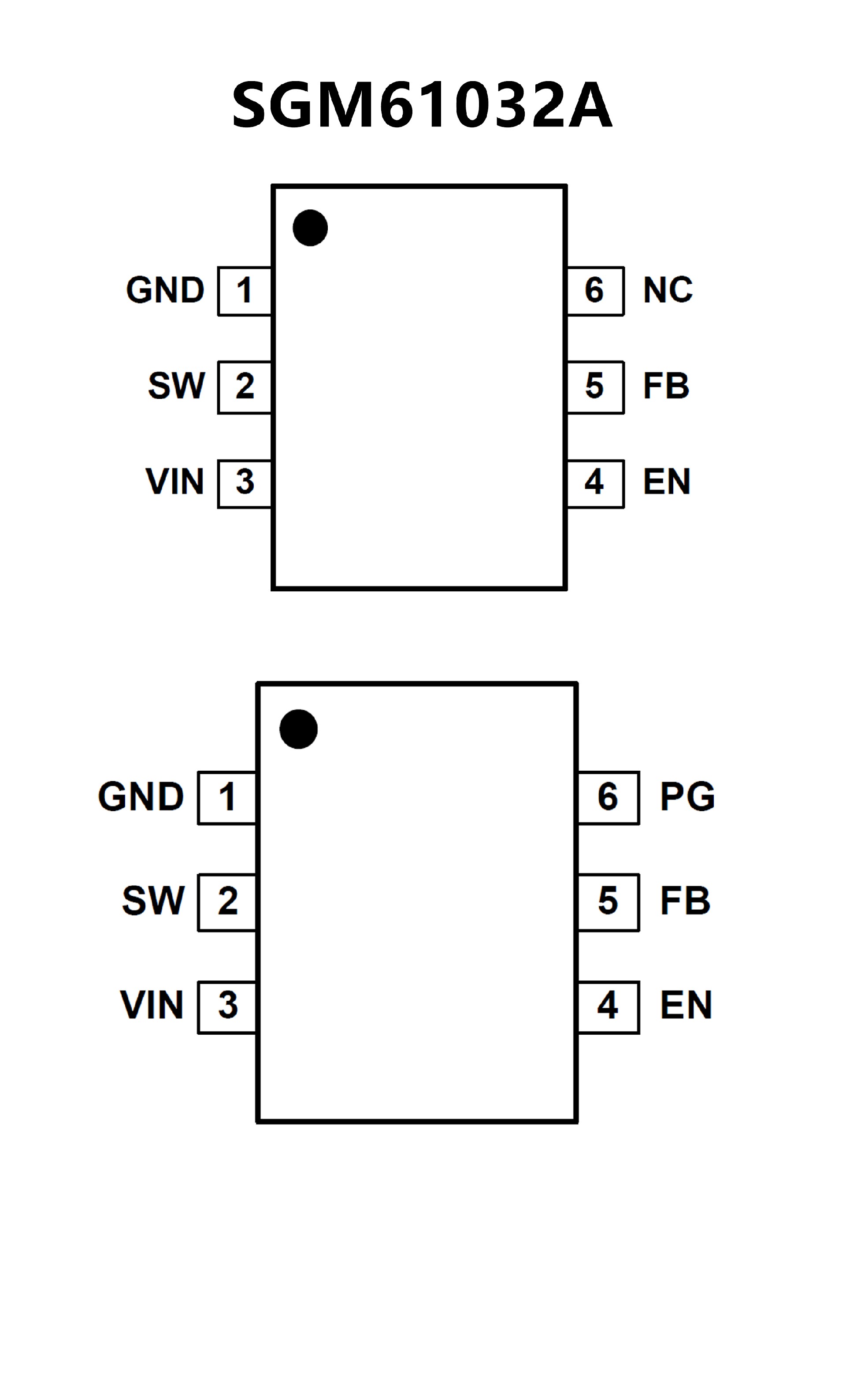

? PG Output (Except for the SGM61032A)
? Internal Soft-Start with Pre-biased Startup
? Output Discharge at Shutdown
? Hiccup Mode OCP/Short-Circuit Protection
? Thermal Shutdown Protection
? Available in a Green SOT-563-6 Package
? Up to 95% efficiency
? Low RDS(ON) power switches 56 mΩ / 32 mΩ
? 2.5-V to 5.5-V input voltage range
? Adjustable output voltage from 0.6-V to VIN
? Power save mode for light load efficiency
? 100% duty cycle for lowest dropout
? 35-μA operating quiescent current
? 1.5-MHz typical switching frequency
? Short circuit protection (HICCUP)
? Output discharge
? Power good output
? Thermal shutdown protection

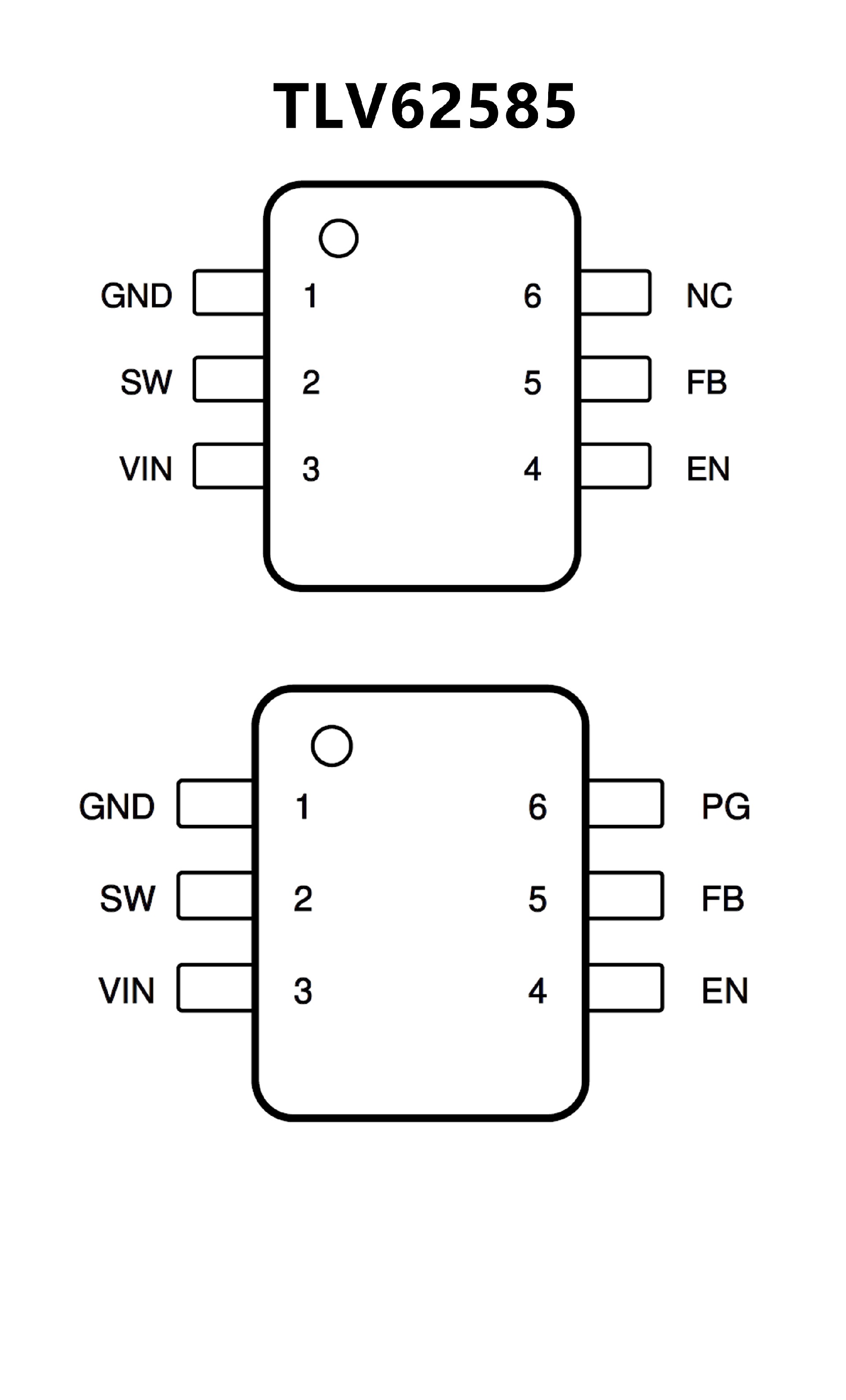

? Available in 2-mm × 2-mm QFN or 1.6-mm x 1.6-
mm SOT563 package
? Create a custom design using the TLV62585 with
the WEBENCH? Power Designer
