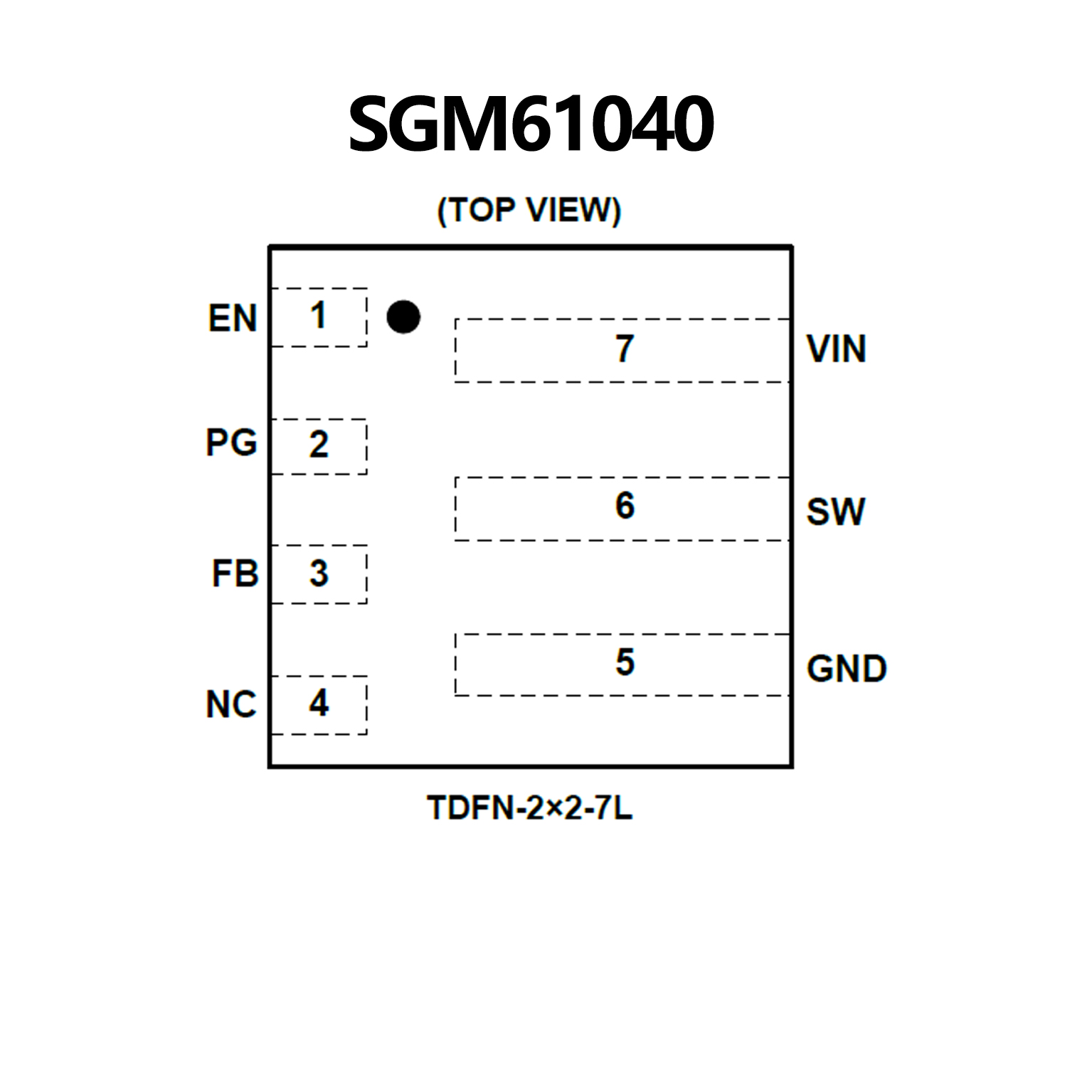

SGM61040.pdf? 2.5V to 5.5V Input Voltage Range
? Adjustable Output Voltage from 0.6V to VIN
? Adaptive Off-Time Architecture
? Up to 95% Efficiency
? Low RDSON MOSFET Switches (27mΩ/12mΩ)
? 42μA (TYP) Operating Quiescent Current
? Ultra-Low Quiescent Current in Shutdown Mode
? Power-Save Mode at Light Loads (SGM61040A)
? 100% Duty Cycle Capability for Low Dropout
? Startup with Pre-biased Output
? Output Discharge Function
? Power Good Output
? Hiccup Mode Short-Circuit Protection
? Thermal Shutdown Protection
? Available in a Green TDFN-2×2-7L Package
? Low RDS(ON) for Internal Switches
(Top/Bottom): 35/15 mΩ
? 2.7-5.5V Input Voltage Range
? 3MHz Switching Frequency Minimizes the
External Components
? Internal Soft-start Limits the Inrush Current
? Up to 92% Efficiency
? 4A Continuous Output Current Capability
? Shutdown Mode Draws<0.1μA Supply Current
? 100% Dropout Operation
? Power Good Indicator
? OCP/UVLO/OTP Protections
? RoHS Compliant and Halogen Free
? Compact Package: DFN2×2-8
