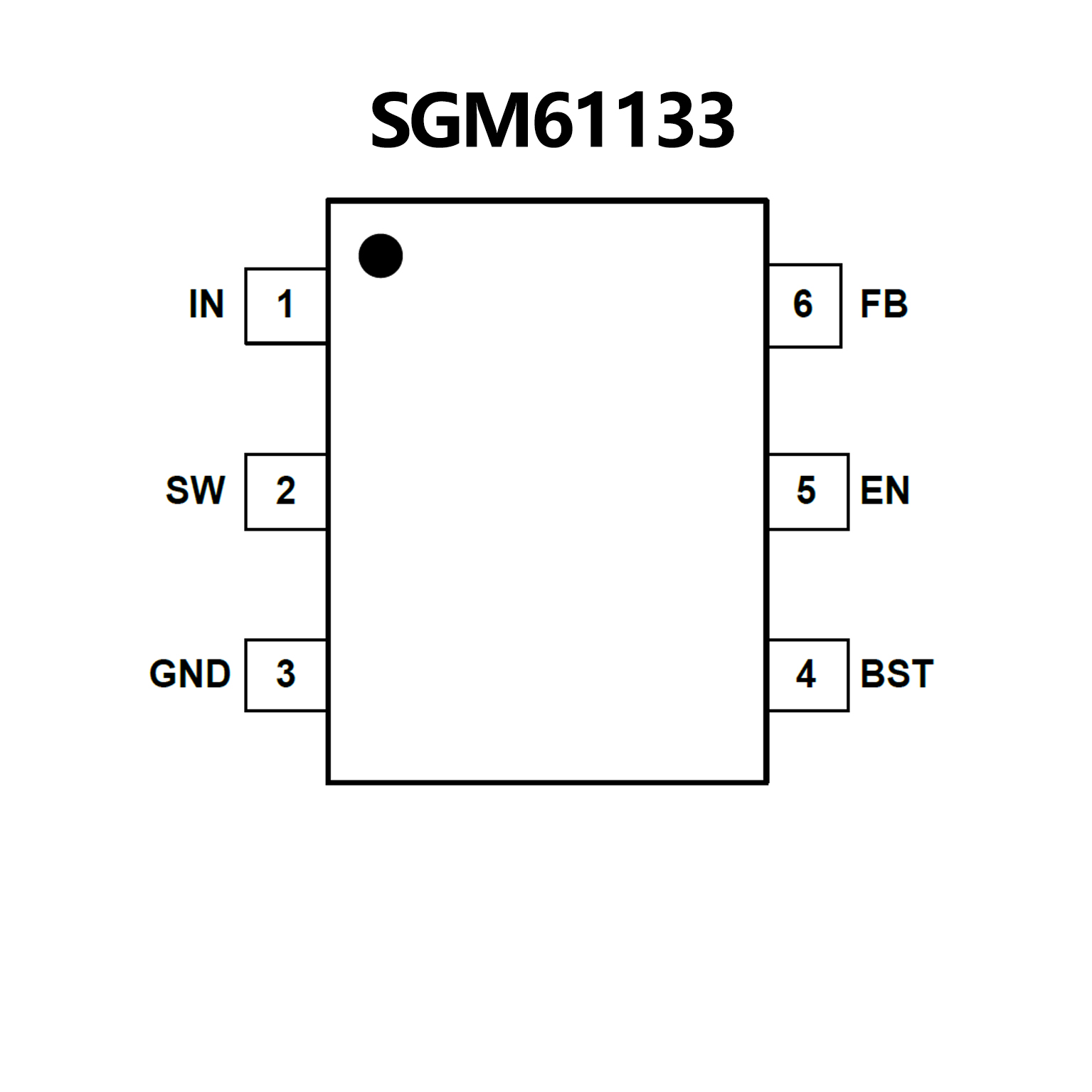

SGM61133.pdf? Wide Input Range: 4.5V to 17V
? Adaptive COT Control
? Ultra-Fast Load Transient Response
? High Efficiency PFM Mode at Light Load
? High Efficiency Synchronous Operation
? 200μA No Load IQ
? Low RDSON Internal Power FETs
? Capable of Delivering 3A
? No External Compensation Needed
? Thermal Shutdown and UVLO
? Available in a Green SOT-563-6 Package

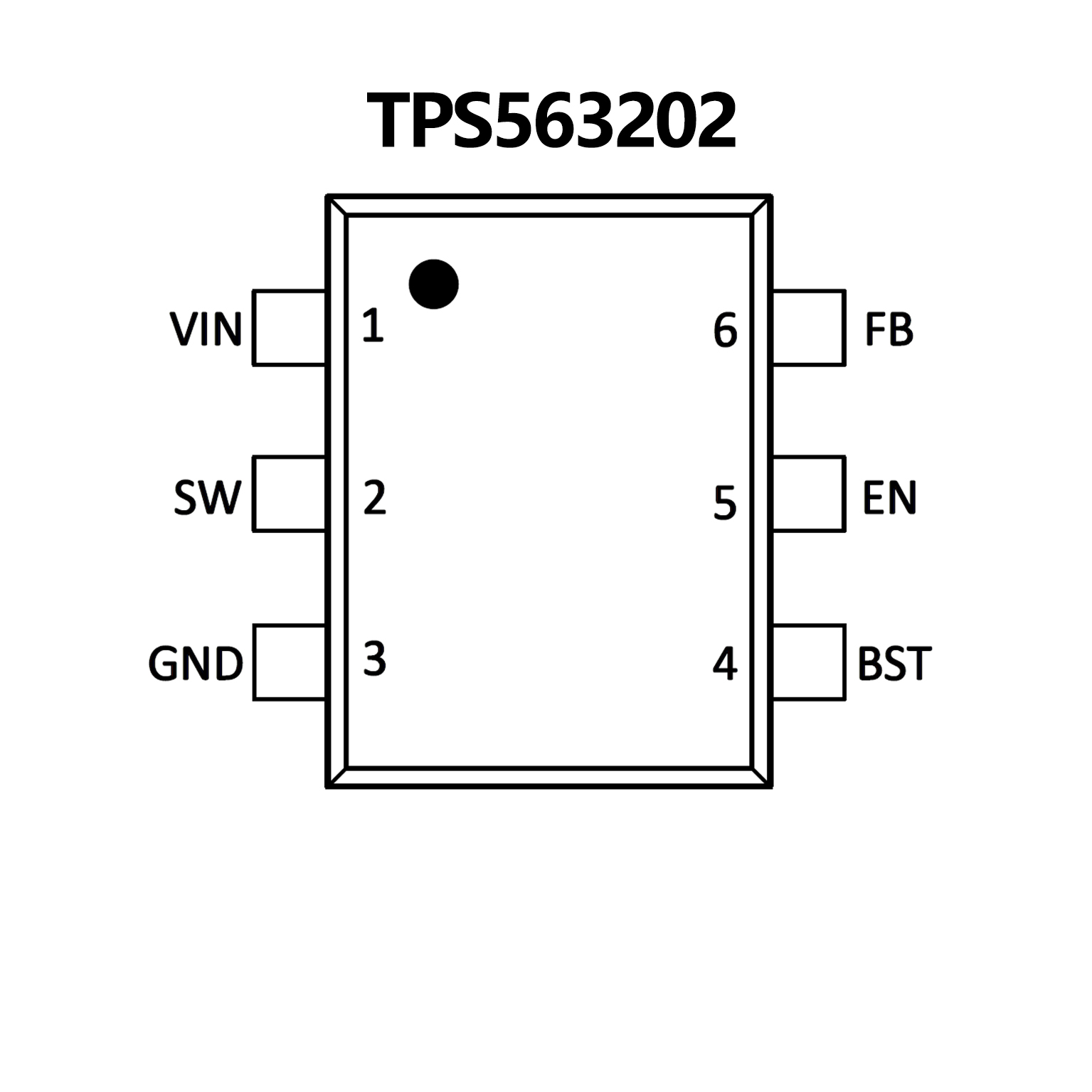

? 3-A converter integrated 95-mΩ and 57-mΩ FETs
? D-CAP2? mode control with fast transient response
? Input voltage range: 4.3 V to 17 V
? Output voltage range: 0.806 V to 7 V
? ECO mode at light loading
? Typical 580-kHz switching frequency
? Low Shutdown current less than 3 μA
? 2% feedback voltage accuracy (25 °C)
? Provide pre-bias function
? Cycle-by-cycle over current limit
? Hiccup-mode over current protection
? Non-latch UVP and TSD protections
? Fixed soft start: 1.2 ms
