SGM611A12.pdf? Integrated 13.5-mΩ and 4.5-mΩ MOSFETs
? Supports 12-A continuous IOUT
? 4.5-V start-up without external 5.0-V bias
? 0.6-V ±-1% reference voltage across full
temperature range
? 0.6-V to 5.5-V output voltage range
? Supports ceramic output capacitors
? D-CAP3? control mode for fast transient response
? Selectable forced continuous conduction mode
(FCCM) for tight output voltage ripple or autoskipping
Eco-mode for high light-load efficiency
? Selectable FSW of 400 kHz, 800 kHz, and 1.2 MHz
? Monotonic start-up into pre-biased outputs
? Two adjustable current limit settings with hiccup restart
? Optional external 5-V bias for enhanced efficiency
? Adjustable soft start with a default 1-ms soft start
time
? –40°C to 150°C operating junction temperature

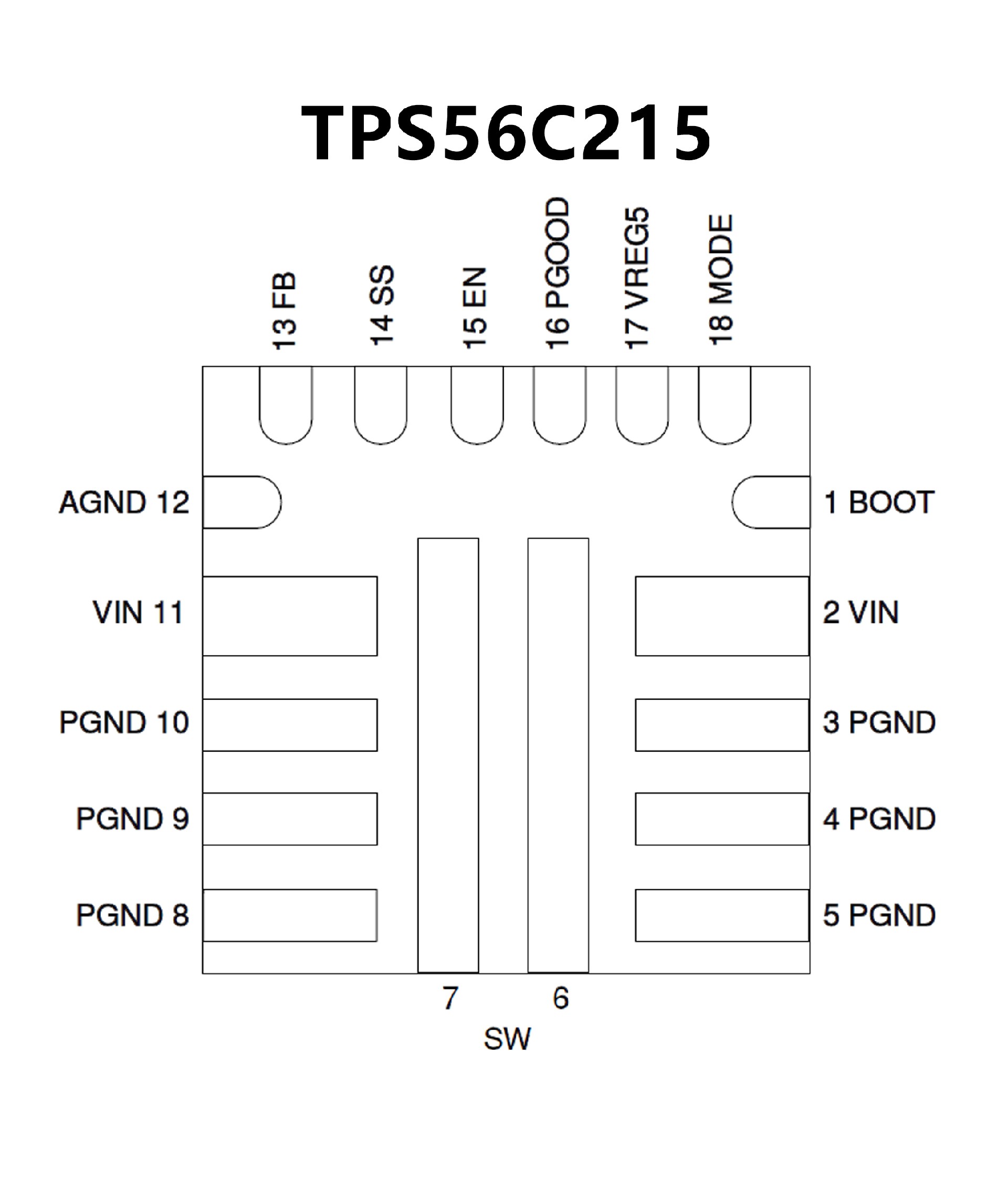

? Small 3.5-mm x 3.5-mm HotRod? QFN package
? Supported at the WEBENCH? design tool
