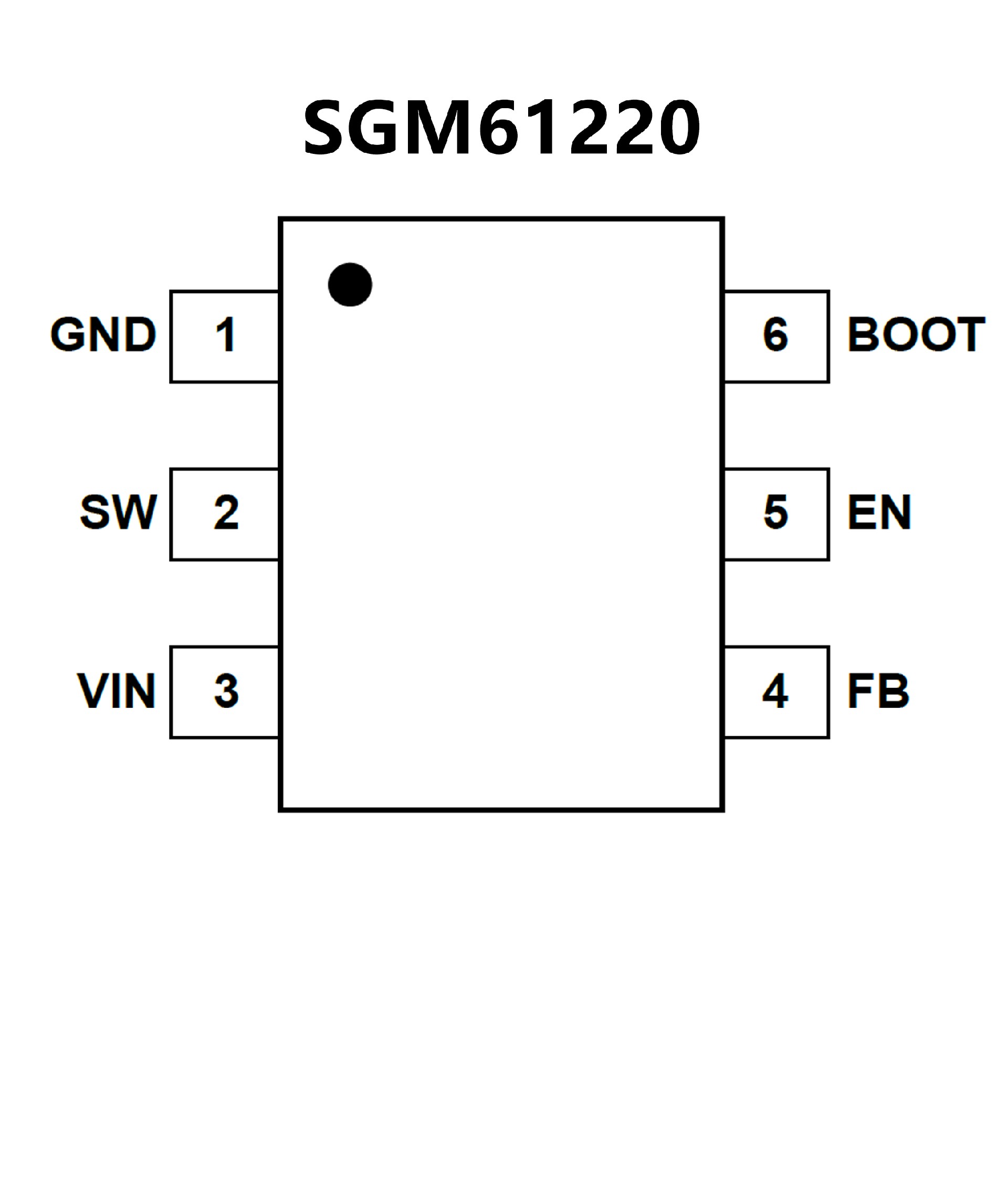

SGM61220.pdf? Wide 4.5V to 28V Input Voltage Range
? 2A Continuous Output Current
? Integrated 66mΩ/36mΩ Power MOSFETs
? Low Quiescent Current: 25μA (TYP)
? Shutdown Current: 2μA (TYP)
? 5ms Internal Soft-Start Time
? Fixed 410kHz Switching Frequency
? Pulse Skip Mode and PWM Mode
? Peak Current Mode Control
? Internal Loop Compensation
? Over-Current Protection for Both MOSFETs
? Output Over-Voltage Protection
? Adjustable Input Under-Voltage Lockout
? Thermal Shutdown with Auto Recovery
? Available in a Green TSOT-23-6 Package

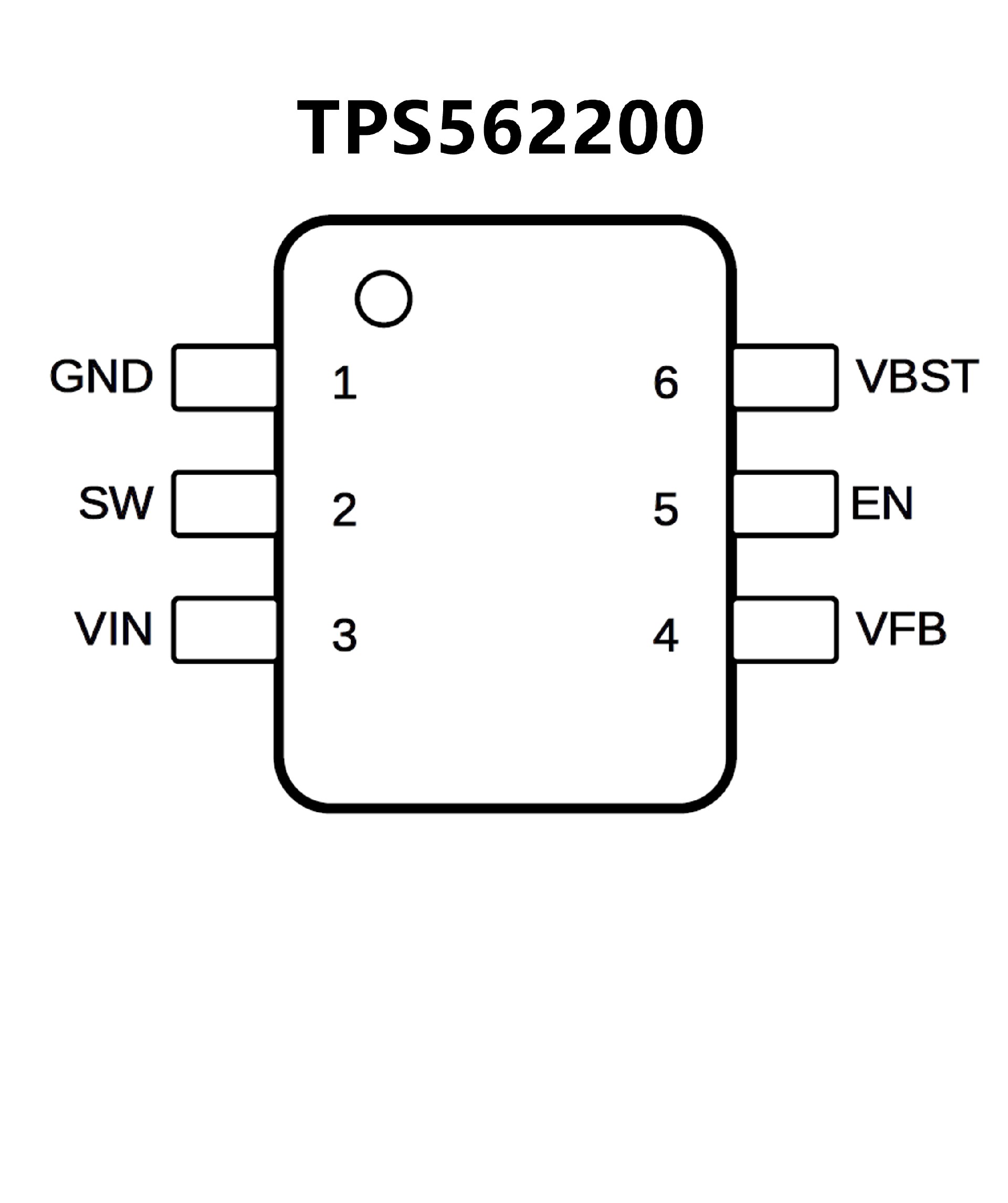

? TPS562200 - 2A converter with Integrated
122 mΩ and 72 mΩ FETs
? TPS563200 - 3A converter with Integrated 68 mΩ
and 39 mΩ FETs
? D-CAP2? Mode Control for Fast Transient
Response
? Input Voltage Range: 4.5 V to 17 V
? Output Voltage Range: 0.76 V to 7 V
? 650 kHz Switching Frequency
? Advanced Eco-mode? Pulse-skip
? Low Shutdown Current Less than 10 μA
? 1% Feedback Voltage Accuracy (25°C)
? Startup from Pre-Biased Output Voltage
? Cycle-By-Cycle Overcurrent Limit
? Hiccup-Mode Undervoltage Protection
? Non-latch OVP, UVLO and TSD Protections
? Fixed Soft Start: 1 ms
? Create a Custom Design with WEBENCH Tools
