SGM61230.pdf? Wide 4.5V to 28V Input Voltage Range
? 3A Continuous Output Current
? Integrated 66mΩ/36mΩ Power MOSFETs
? Low Quiescent Current: 25μA (TYP)
? Shutdown Current: 2μA (TYP)
? 5ms Internal Soft-Start Time
? Fixed 410kHz Switching Frequency
? Pulse Skip Mode and PWM Mode
? Peak Current Mode Control
? Internal Loop Compensation
? Over-Current Protection for Both MOSFETs
? Output Over-Voltage Protection
? Adjustable Input Under-Voltage Lockout
? Thermal Shutdown with Auto Recovery
? Available in a Green TSOT-23-6 Package
? 4.5-V to 28-V Wide Input Voltage Range
? Integrated 85-mΩ and 40-mΩ MOSFETs for 3-A,
Continuous Output Current
? Low 2-μA Shutdown, 300-μA Quiescent Current
? Internal 5-mS Soft-Start
? Fixed 350-kHz Switching Frequency
? Peak Current Mode Control
? Internal Loop Compensation
? Overcurrent Protection for Both MOSFETs with
Hiccup Mode Protection
? Over Voltage Protection
? Thermal Shutdown

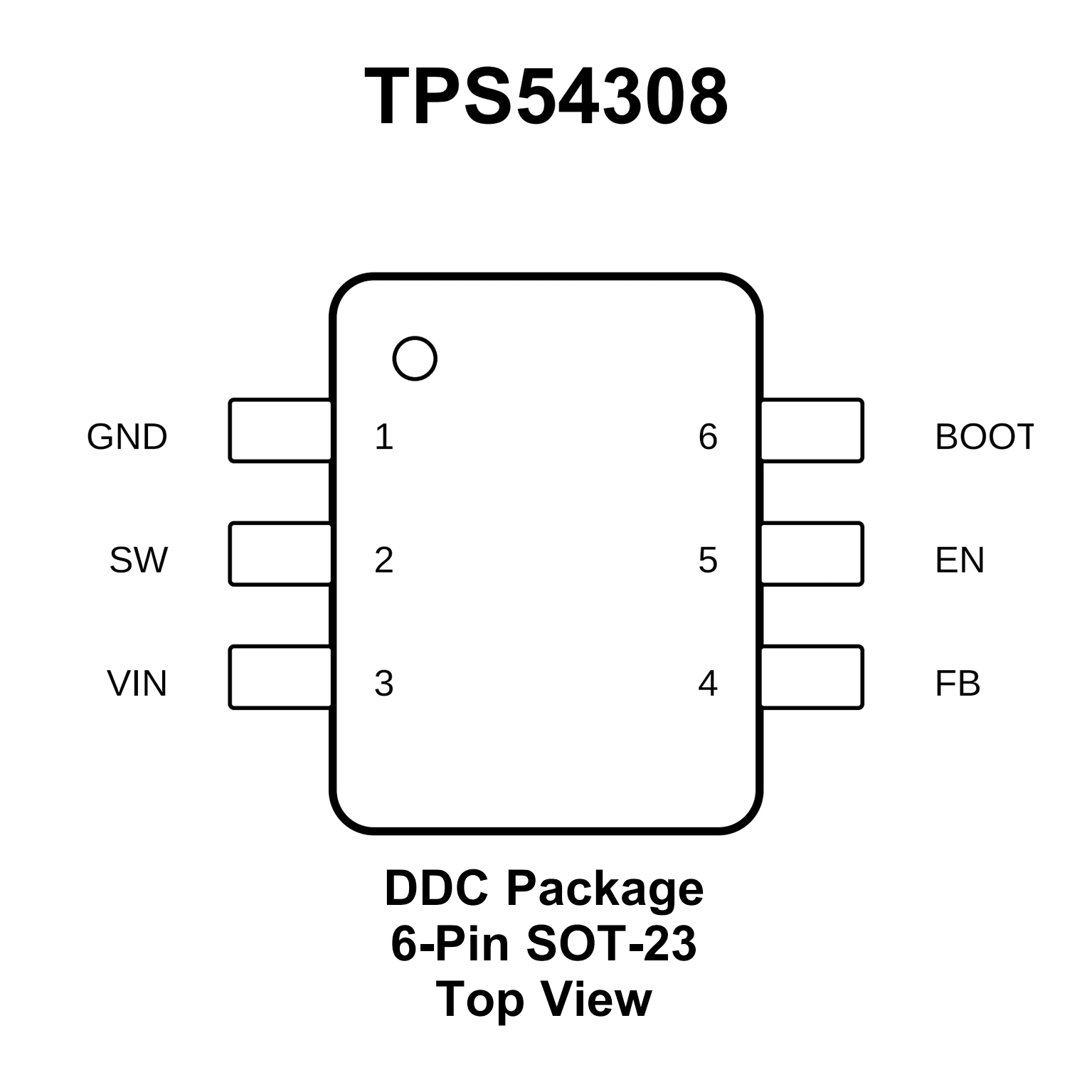

? SOT-23 (6) Package
? Create a Custom Design Using the TPS54308
With the WEBENCH Power Designer
