3.8V to 36V Input, 3A, Synchronous Buck Converter, SGM61330AQ Replace LMR33630-Q1.
SGM61330AQ SGM61330AQ.pdf
FEATURES

? Wide 3.8V to 36V Input Voltage Range

? Up to 3A Continuous Output Current

? SGM61330:

    1V to 24V Output Voltage Range

    PFM at Light Load Condition

? Fixed Switching Frequency

    SGM61330A: 400kHz

    SGM61330B: 1.4MHz

    SGM61330C: 2.1MHz

? Power-Good Flag and Precision Enable

? Integrated RDSON Switches:

    TQFN-2×3-12AL: 65m?/42m? (TYP)

    SOIC-8 (Exposed Pad): 78m?/55m? (TYP)

? High Efficiency at Light Load Condition

? Ultra-Low Shutdown Current: 2.1μA (TYP)

? Low Quiescent Current: 29μA (TYP)

? Peak Current Mode Control

? Cycle-by-Cycle Current Limit

? 4ms (TYP) Internal Soft-Start Time

? -40℃ to +125℃ Operating Temperature Range

? Available in Green TQFN-2×3-12AL and SOIC-8

  (Exposed Pad) Packages

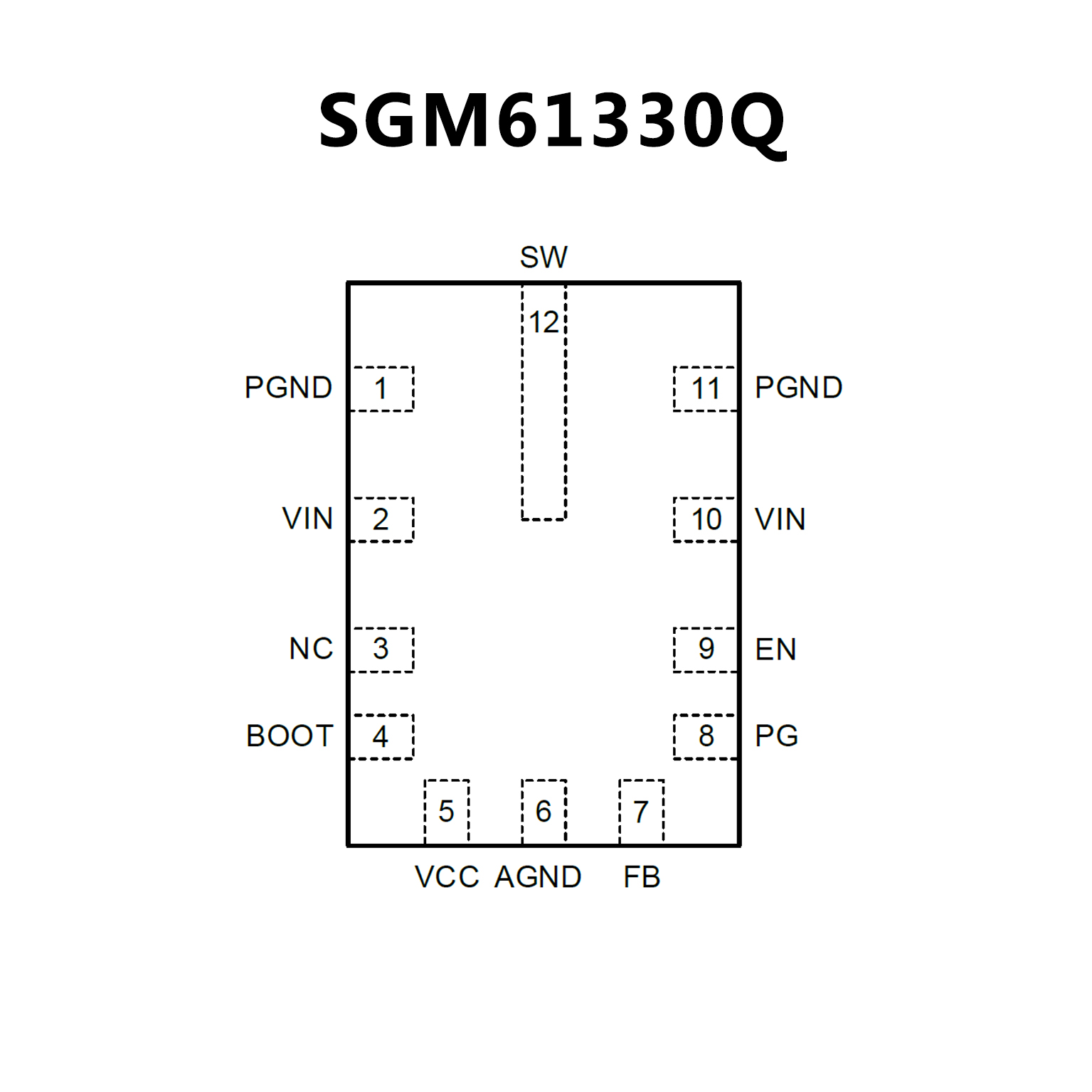

PIN CONFIGUTION
優勢替代
LMR33630-Q1 LMR33630-Q1.pdf

No.13872

FEATURES

? AEC-Q100 qualified for automotive applications:

  – Temperature grade 1: –40°C to +125°C, TA
? Functional Safety-Capable
  – Documentation available to aid functional safety
    system design
? Configured for rugged automotive applications
  – Input voltage range: 3.8 V to 36 V
  – Output voltage range: 1 V to 24 V
  – Output current: 3 A
  – 75-mΩ/50-mΩ RDS-ON power MOSFETs
  – Peak-current-mode control
  – Short minimum on-time of 68 ns
  – Frequency: 400 kHz, 1.4 MHz, 2.1 MHz
  – Integrated compensation network
? Low EMI and switching noise
  – HotRod? package
  – Parallel input current paths
? High power conversion at all loads
  – Peak efficiency > 95%
  – Low shutdown quiescent current of 5 μA
  – Low operating quiescent current of 25 μA
? Create a custom design using the LMR33630-Q1

  with the WEBENCH? Power Designer

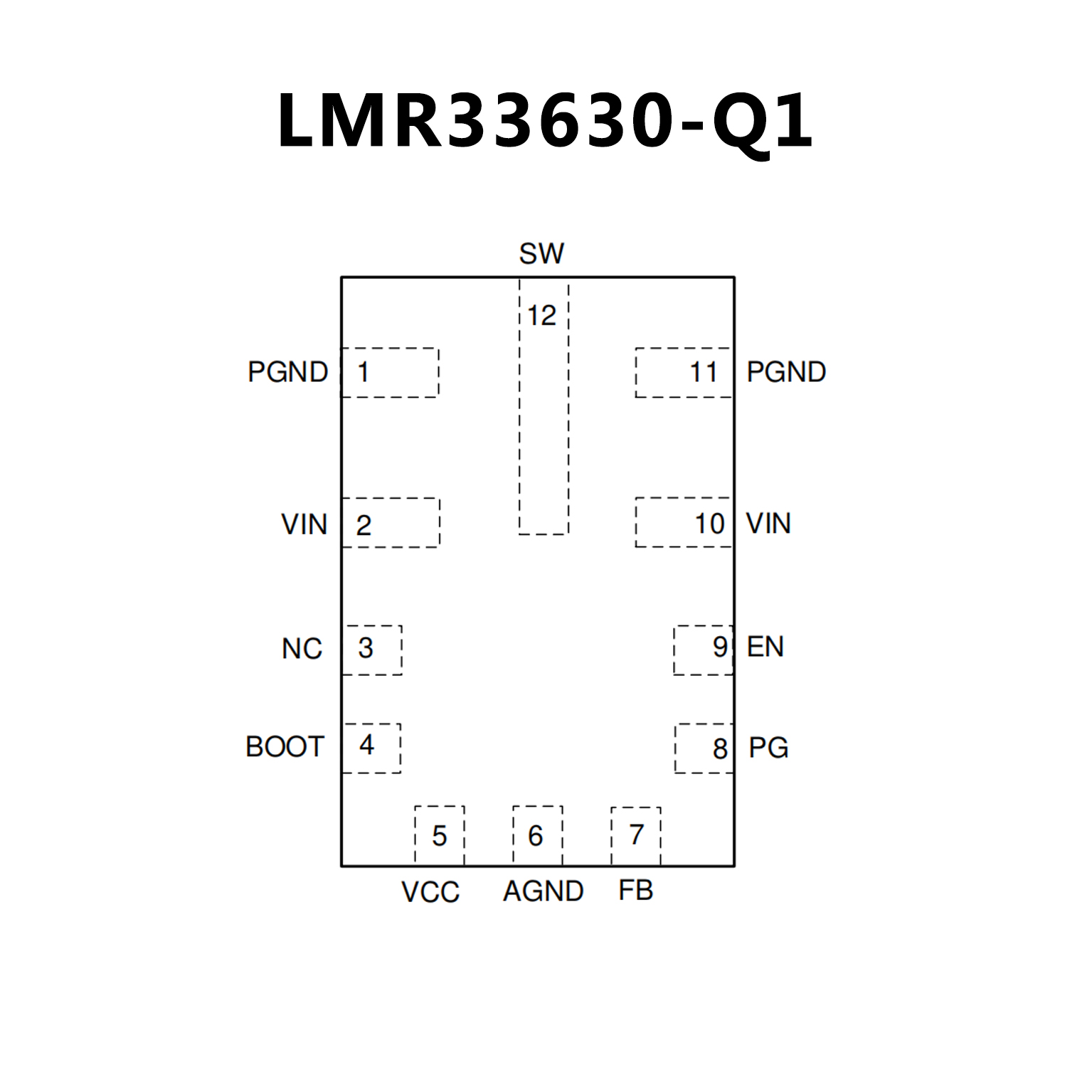

PIN CONFIGUTION
