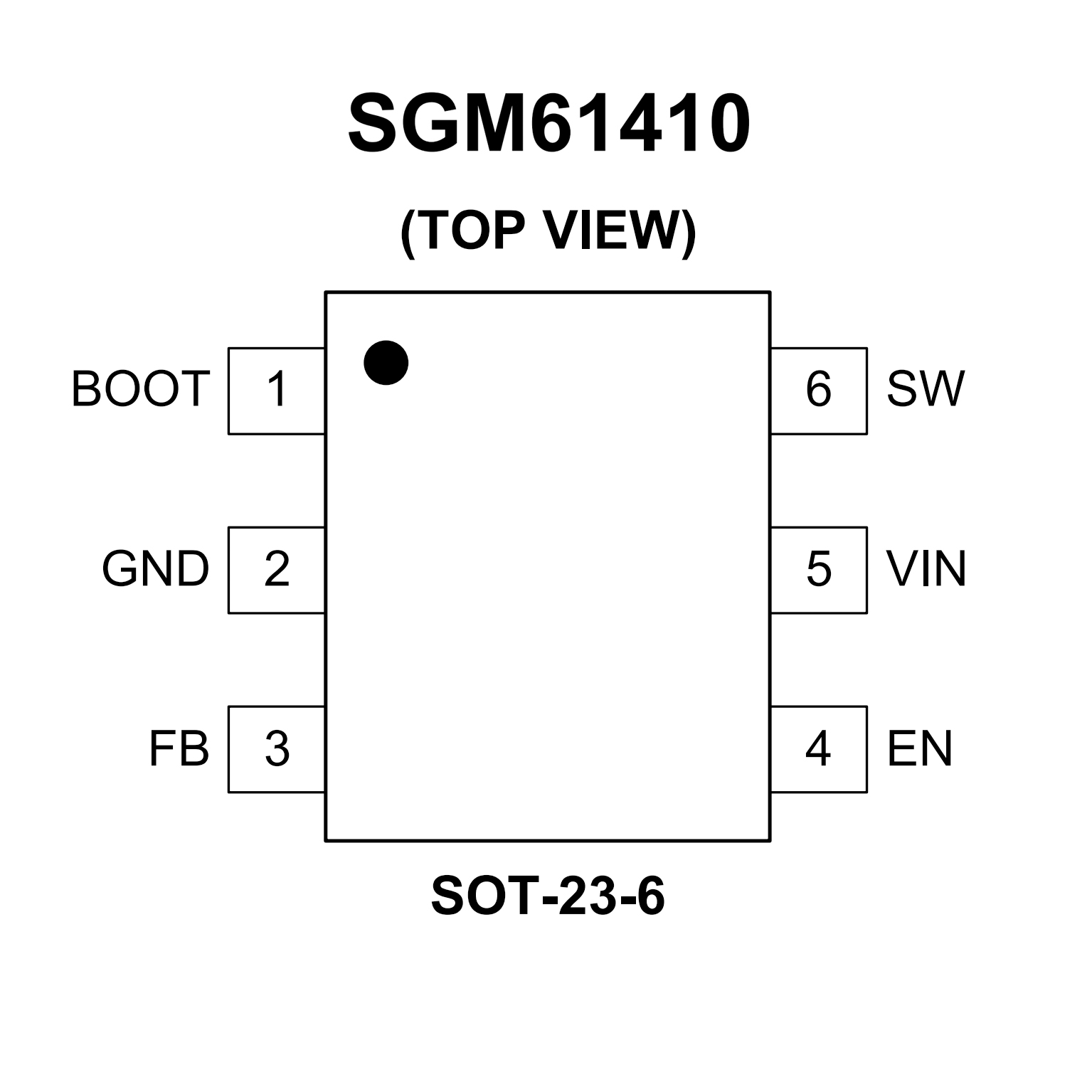

SGM61410.pdf? Wide 5V to 42V Operating Input Voltage Range
? 0.8V Internal Reference
? Low Quiescent Current: 14μA (TYP)
? Shutdown Current: 0.6μA (TYP)
? Current Output up to 600mA
? 1.2MHz Switching Frequency
? Internal Compensation and Soft-Start
? Simple Design and Minimal External Components
? Up to 95% Efficiency at 12V/400mA
? 0.8V to 20V Adjustable Output Voltage
? Current Limit and Short-Circuit Protection
? Output Over-Voltage Protection and Thermal
Shutdown
? Power-Save Mode and PWM Mode Operation
? Monotonic Startup with Pre-biased Output
? 90% Maximum Duty Cycle
? Available in a Green SOT-23-6 Package
? -40℃ to +125℃ Operating Temperature Range

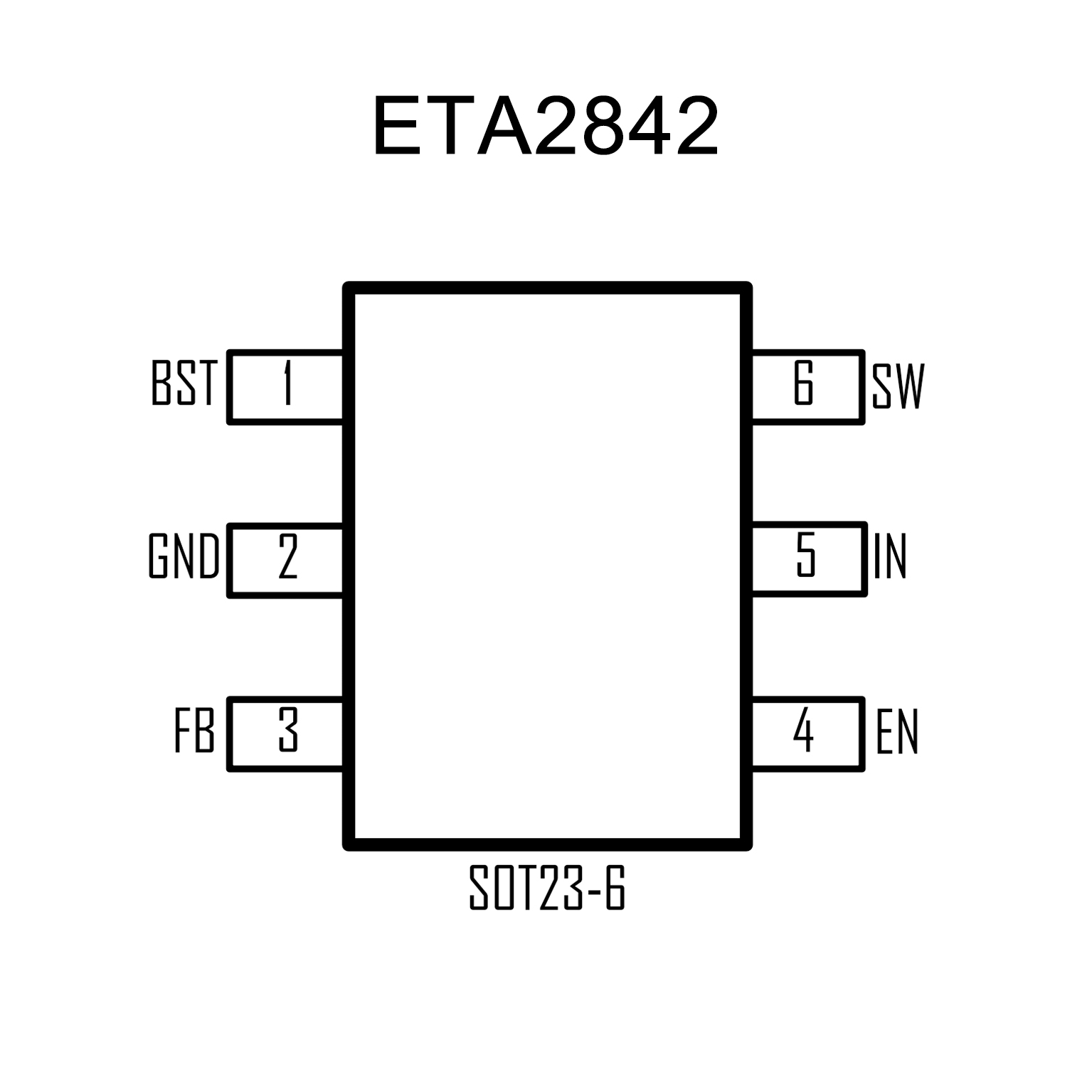

? Wide Input Operating Range from 4V to 38V
? Standoff Input Voltage: 42V
? Output up to 6V
? High Efficiency at 12V In 5V Out: Up to 91%:
? High Efficiency PFM mode at light load
? Capable of Delivering 1A
? No External Compensation Needed
? Current Mode control
? Logic Control Shutdown
? Thermal shutdown and UVLO
? Available in SOT23-6 Package
