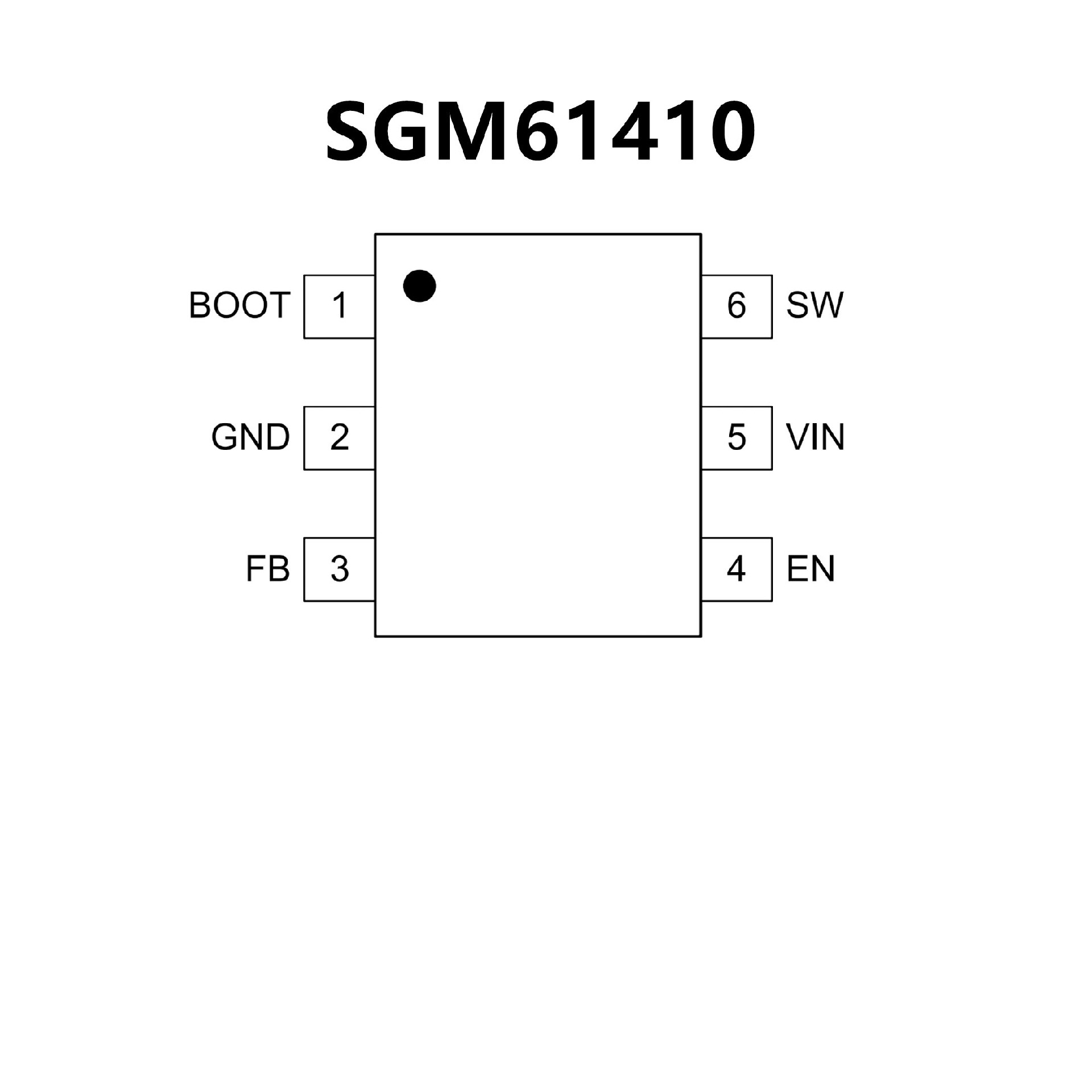

SGM61410.pdf? Wide 5V to 42V Operating Input Voltage Range
? 0.8V Internal Reference
? Low Quiescent Current: 14μA (TYP)
? Shutdown Current: 0.6μA (TYP)
? Current Output up to 600mA
?1.2MHz Switching Frequency
? Internal Compensation and Soft-Start
? Simple Design and Minimal External Components
? Up to 95% Efficiency at 12V/400mA
? 0.8V to 20V Adjustable Output Voltage
? Current Limit and Short-Circuit Protection
? Output Over-Voltage Protection and ThermalShutdown
? Power-Save Mode and PWM Mode Operation
? Monotonic Startup with Pre-biased Output
? 90% Maximum Duty Cycle
? Available in a Green SOT-23-6 Package
? -40℃ to +125℃ Operating Temperature Range

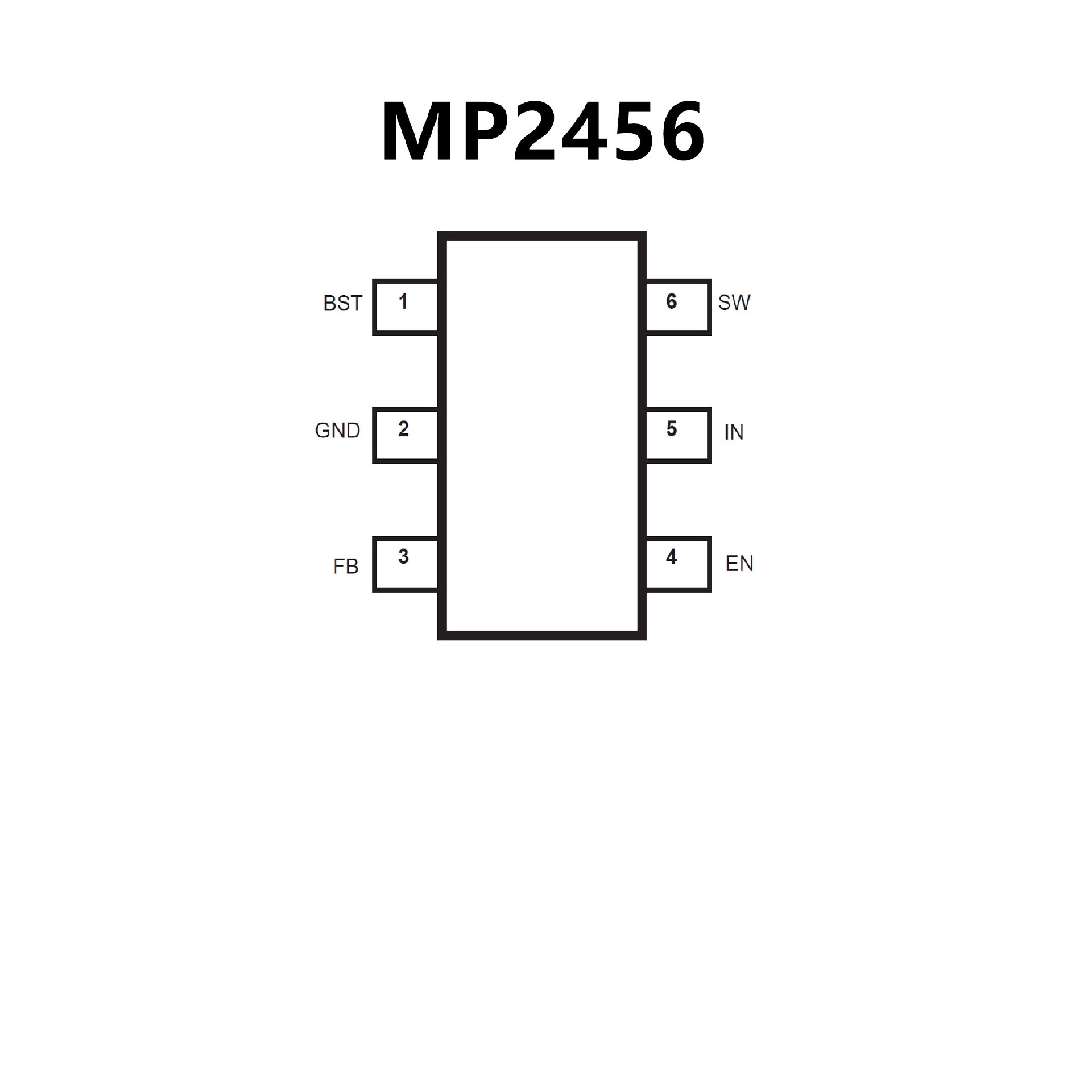

? 0.5A Peak Output Current
? 1? Internal Power MOSFET
? Capable to Start Up with Big Output Capacitor
? Stable with Low-ESR Ceramic Output Capacitors
? Up to 90% Efficiency
? 0.1μA Shutdown Mode
? Fixed 1.2MHz Frequency
? Thermal Shutdown
? Cycle-by-Cycle Over-Current Protection
? Wide 4.5V-to-50V Operating Input Range
? Output Adjustable from 0.81V to 0.9xVIN
? Available in a TSOT23-6 Package
