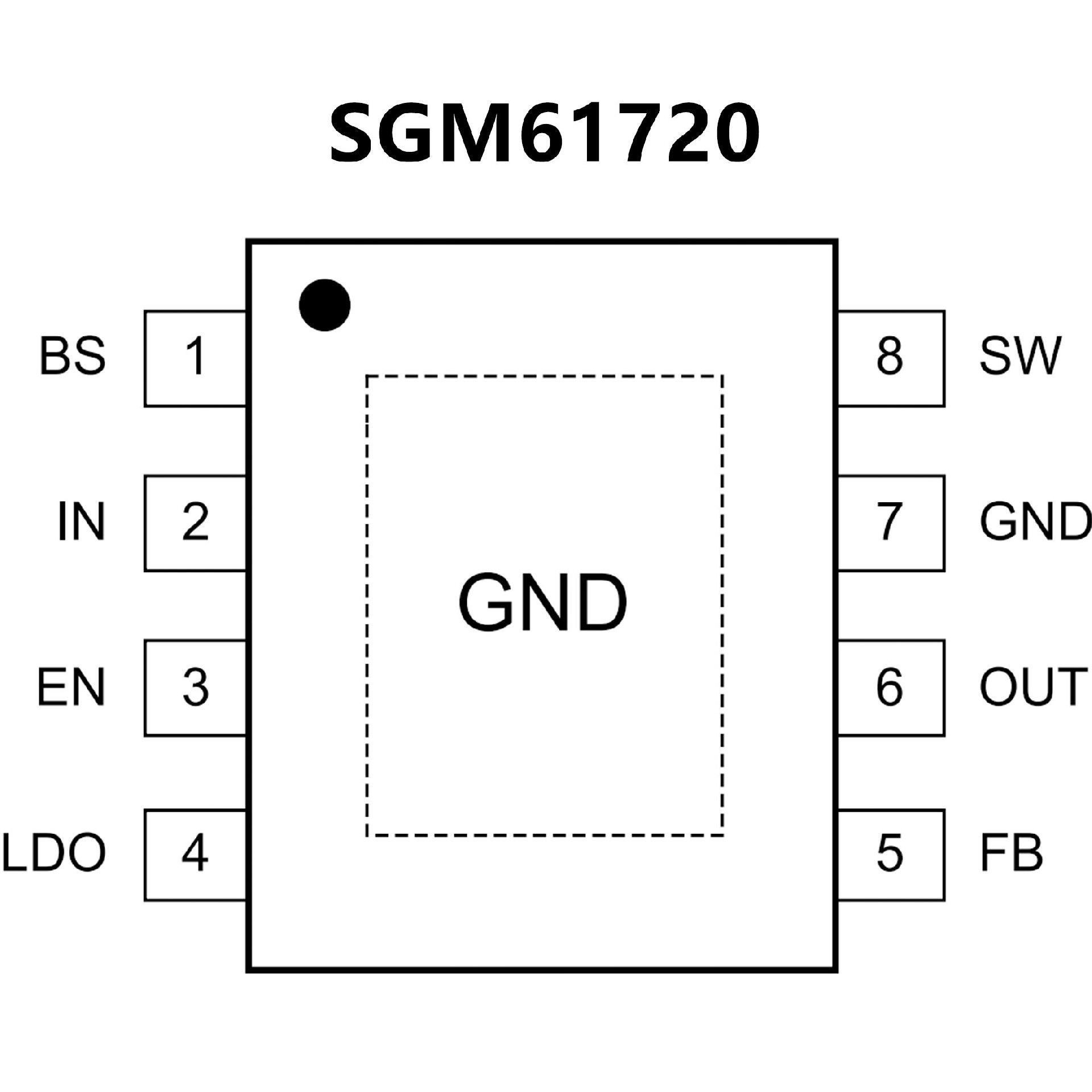

SGM61720.pdf? Integrated 100mΩ/75mΩ Power MOSFETs
? Wide 6V to 60V Input Voltage Range
? 2.5A/5V Output Current Capability
? Constant On-Time (COT) Control
? Power-Save Mode and PWM Mode
? 1ms Internal Soft-Start for Inrush Current Limit
? Up to 24V Adjustable Output Voltage
? Pre-biased Startup
? -40℃ to +125℃ Operating JunctionTemperature Range
? Available in a Green SOIC-8 (Exposed Pad)Package

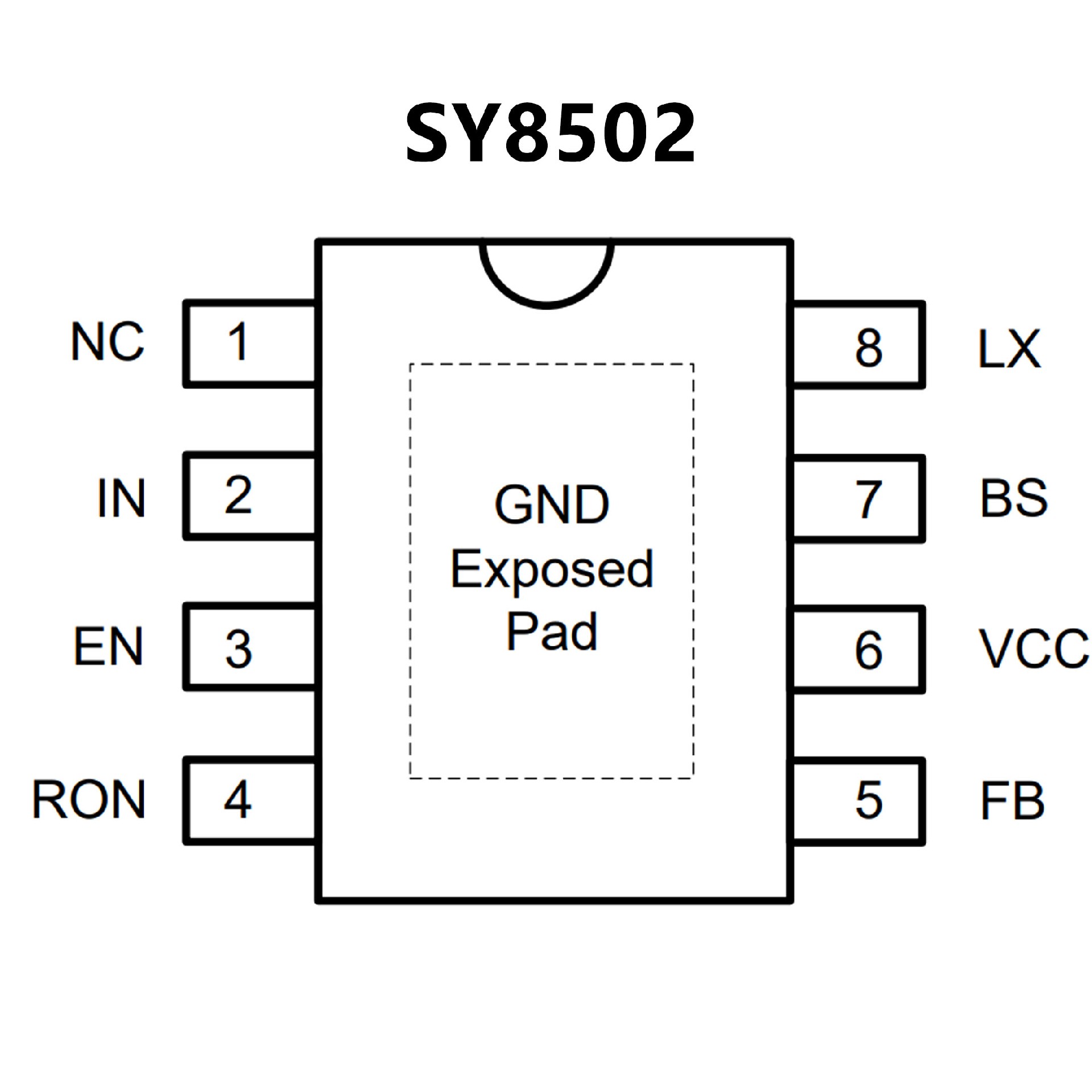

? Low RDS(ON) for Internal Switches
(Top/Bottom):500mΩ/240mΩ
? 7-85V Input Voltage Range
? 1.2A Continuous, 1.8A Peak
Output CurrentCapability
? Adjustable Switching Frequency
? Instant PWM Architecture to
Achieve FastTransient Responses
? Programmable Switching
Frequency Range:200~500 kHz
? 2ms Internal Soft-start Limits
the Inrush Current
? Precise ±2% 1.2V Reference
? RoHS Compliant and Halogen Free
? Compact Package: SO8E
