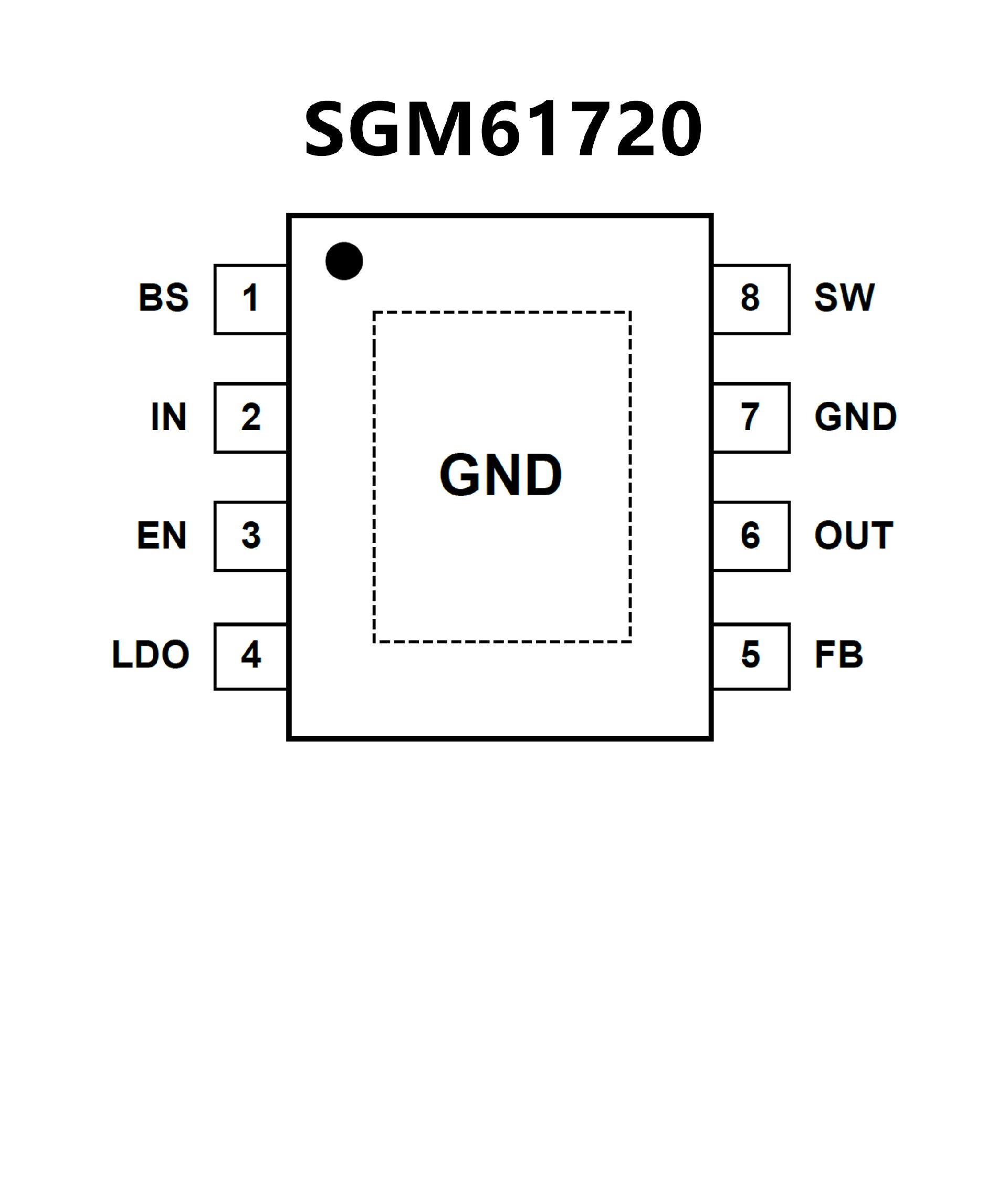

SGM61720.pdf? Integrated 100mΩ/75mΩ Power MOSFETs
? Wide 6V to 60V Input Voltage Range
? 2.5A/5V Output Current Capability
? Constant On-Time (COT) Control
? Power-Save Mode and PWM Mode
? 1ms Internal Soft-Start for Inrush Current Limit
? Up to 24V Adjustable Output Voltage
? Pre-biased Startup
? -40℃ to +125℃ Operating Junction
Temperature Range
? Available in a Green SOIC-8 (Exposed Pad)
Package

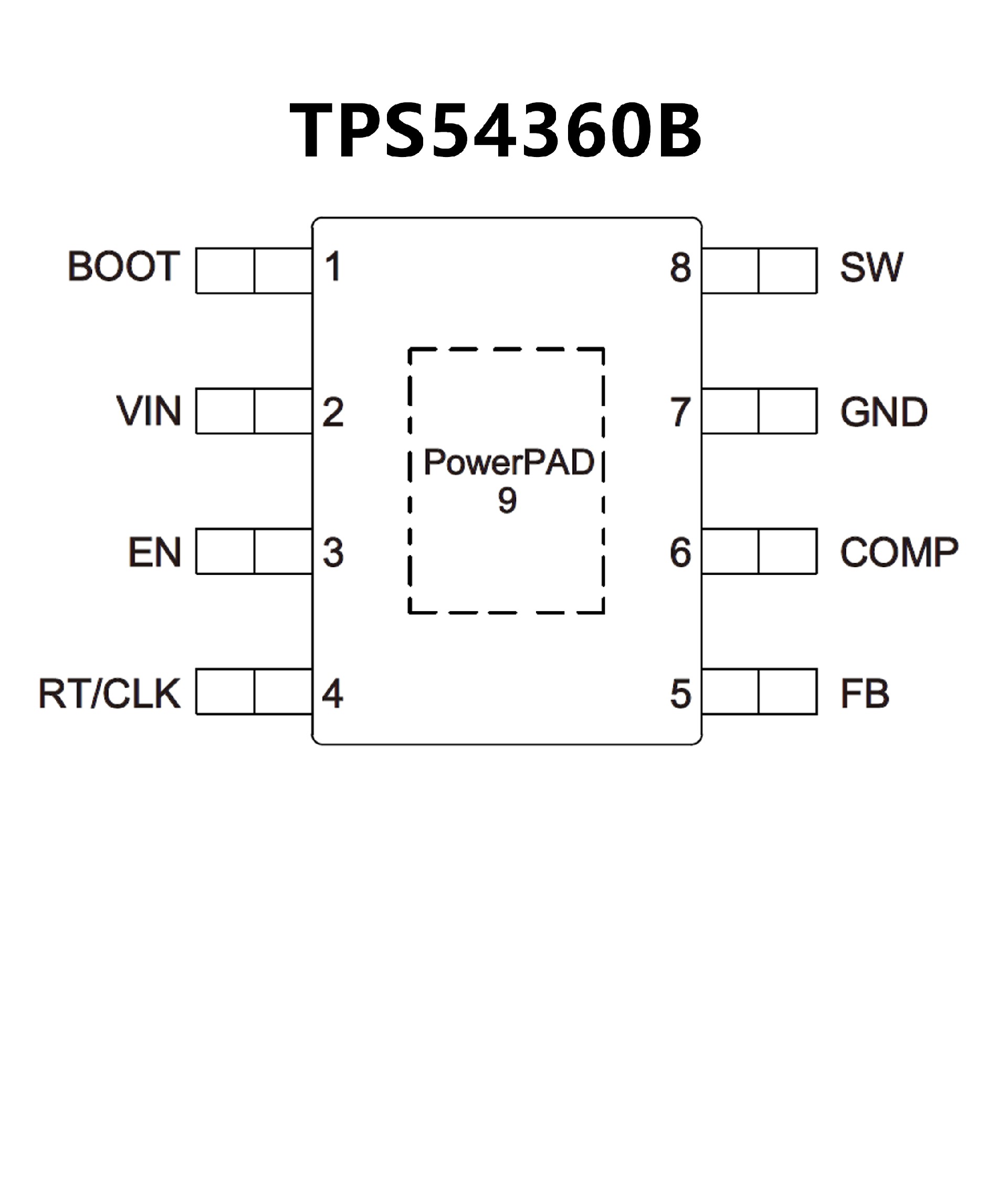

? 4.5-V to 60-V (65-V Abs Max) Input Range
? 3.5-A Continuous Current, 4.5-A Minimum Peak
Inductor Current Limit
? Current Mode Control DC/DC Converter
? 92-mΩ High-Side MOSFET
? High Efficiency at Light Loads with Pulse Skipping
Eco-mode?
? Low Dropout at Light Loads with Integrated BOOT
Recharge FET
? 146-μA Operating Quiescent Current
? 2-μA Shutdown Current
? 100-kHz to 2.5-MHz Fixed Switching Frequency
? Synchronizes to External Clock
? Adjustable UVLO Voltage and Hysteresis
? Internal Soft Start
? Accurate Cycle-by-Cycle Current Limit
? Thermal, Overvoltage, and Frequency Foldback
Protection
? 0.8 V 1% Internal Voltage Reference
? 8-Pin HSOIC with PowerPAD? Package
? –40°C to 150°C TJ Operating Range
? Create a Custom Design using the TPS54360B
with the WEBENCH? Power Designer
