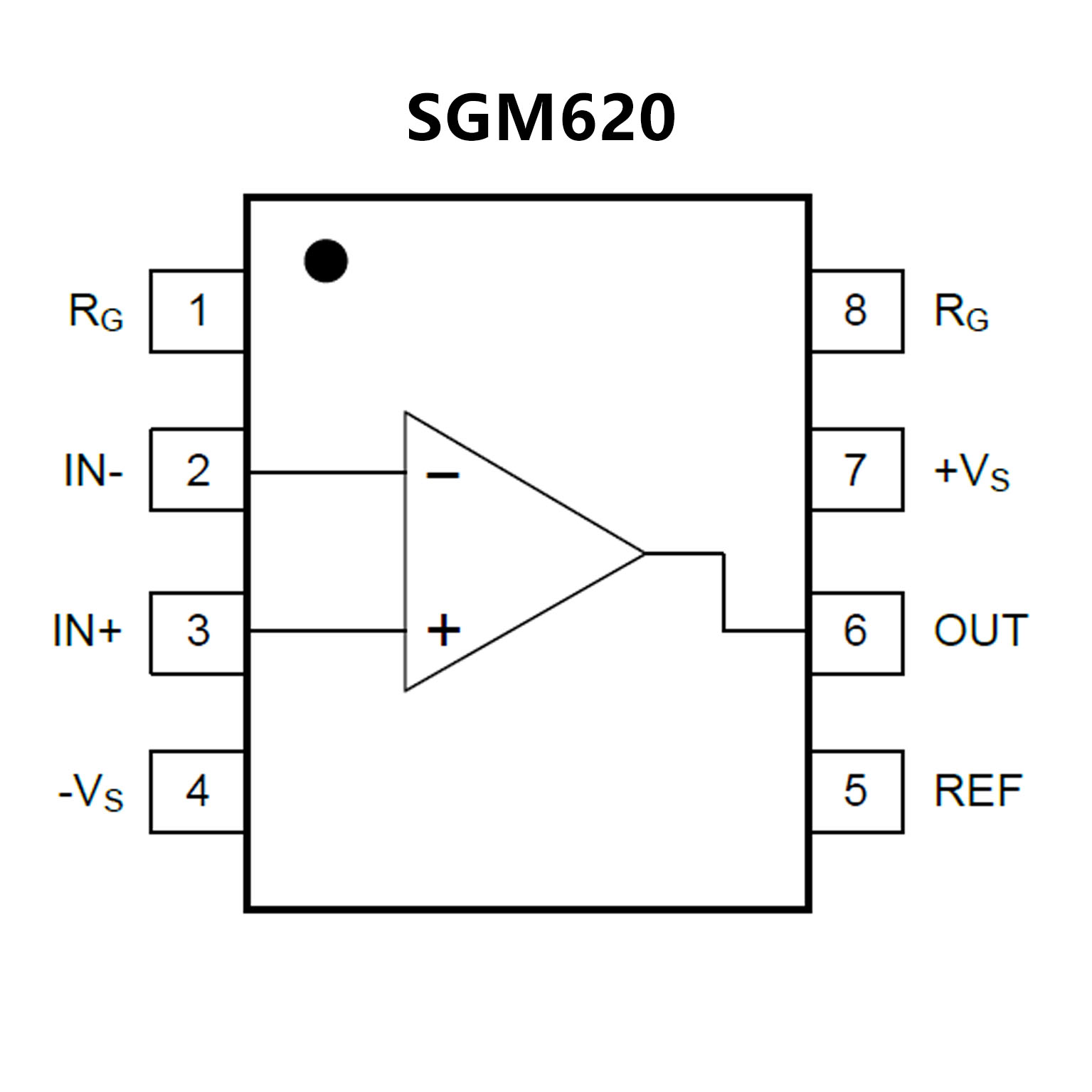

SGM620.pdf? Single External Resistor Gain Set
(Set Gain from 1 to 10000)
? Input Offset Voltage: 150μV (MAX)
? Input Bias Current: 15nA (TYP)
? Common Mode Rejection Ratio: 105dB (TYP) (G = 10)
? Input Voltage Noise: 6nV/√Hz at 1kHz
? 0.1Hz to 10Hz Voltage Noise: 0.4μVP-P
? Bandwidth: 140kHz (G = 100)
? Settling Time to 0.01%: 10μs (G = 100)
? Rail-to-Rail Output
? Support Single or Dual Power Supplies:
4.6V to 36V or ±2.3V to ±18V
? Low Power Supply Current: 1.3mA (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOIC-8 Package

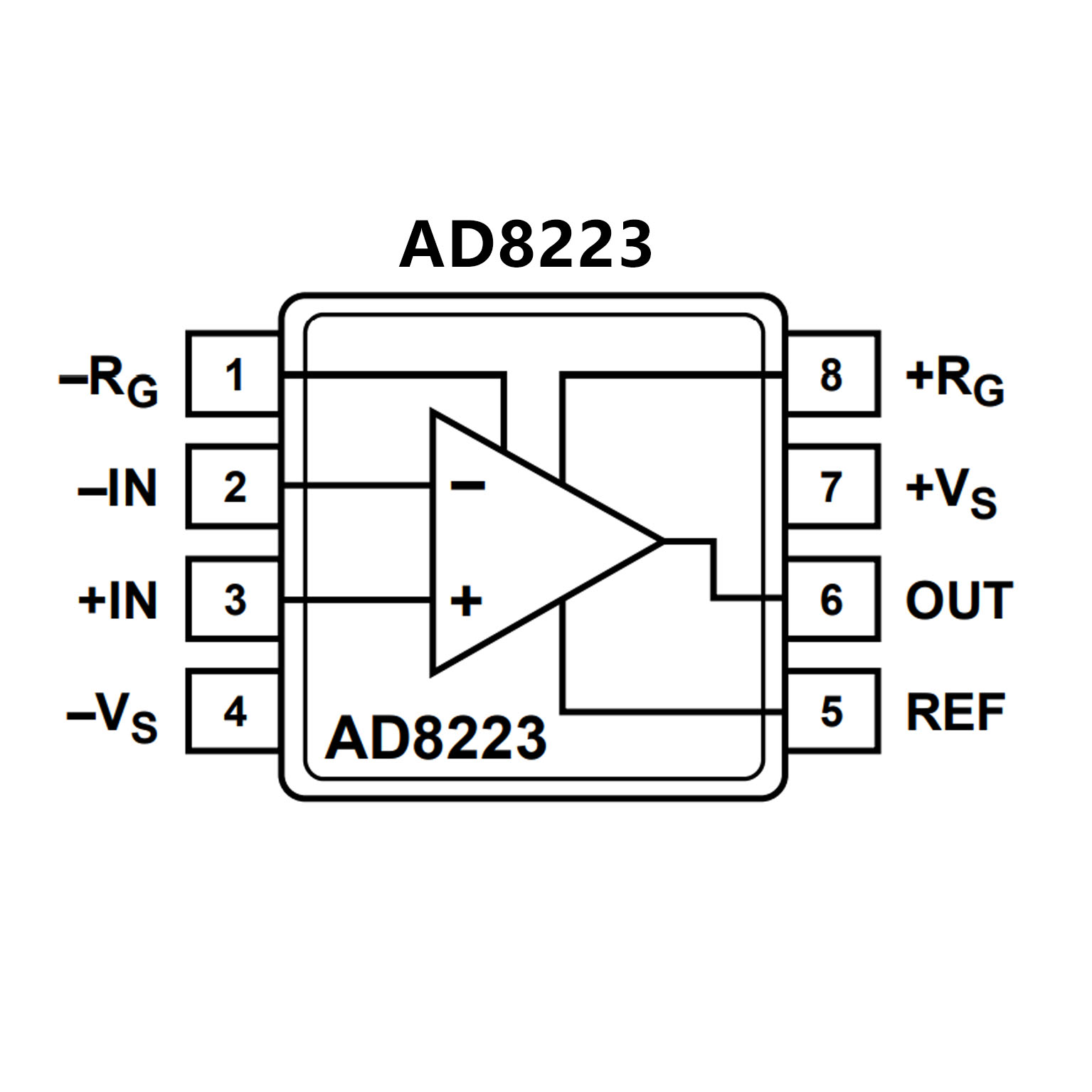

? Gain set with 1 resistor
? Gain = 5 to 1000
? Inputs
? Voltage range to 150 mV below negative rail
? 25 nA maximum input bias current
? 30 nV/√Hz, RTI noise @ 1 kHz
? Power supplies
? Dual supply: ±2 V to ±12 V
? Single supply: 3 V to 24 V
? 500 μA maximum supply current
