SGM660.pdf? 2.8V to 5.5V Input Voltage Range
? Adjustable Output Voltage:
-0.8V to -5.2V, 0.1V/Step
? Programmable Switching Current Limit:
810mA (Default)/620mA/435mA
? Programmable Switching Frequency:
1.8MHz/1.6MHz (Default)/1.4MHz
? No External Compensation
? Internal Soft-Start Function
? Shutdown Current: 1μA (MAX)
? Available in a Green WLCSP-0.9×1.3-6B Package
? Wide 2.7V to 7V Operating Input Range
Output Adjustable from -0.9V to -6V
? Up to 600mA Peak Output Current
? 300m? High Side MOSFET On Resistance
? Default 1.5MHz Switching Frequency
? Ground Reference Enable
? Cycle-by-Cycle Over Current Protection
? Short Circuit Protect with Hiccup Mode
? Output Voltage Discharge
? Output Over Voltage Protection

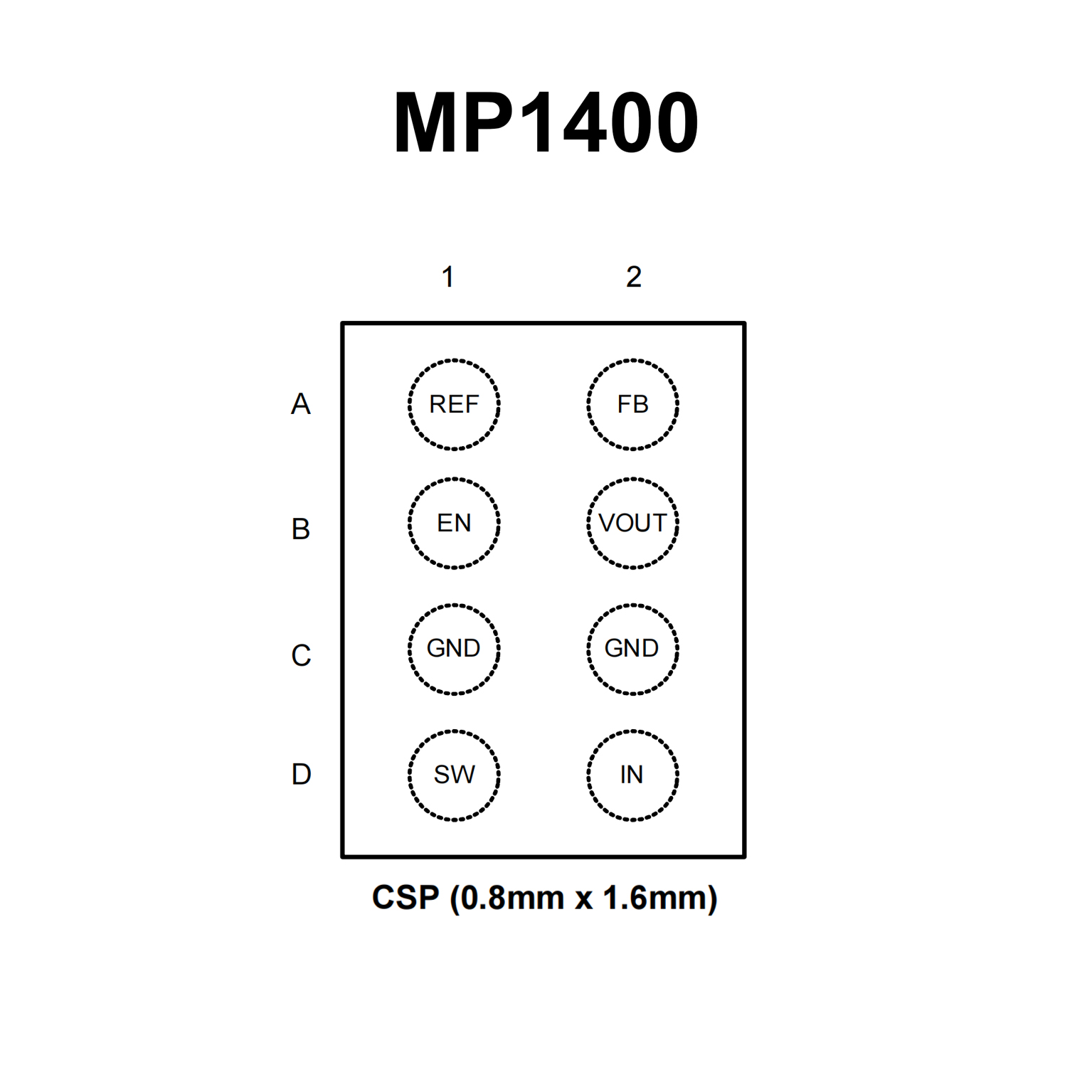

?Available in a 0.8mm x 1.6mm 8-ball CSP
Package
