Low-Power DC-DC Step-Up Converter,SGM6601YTN5G Replace WD3133.
SGM6601YTN5G
SGM6601YTN5G.pdf
SGM6601YTN5G.pdfFEATURES
? Input Voltage Range: 1.8V to 5.5V
? Adjustable Output Voltage Range up to 38V
? 400mA Internal Switch Current
? Up to 1MHz Switching Frequency
? 20μA Typical No-Load Quiescent Current
? 0.1μA Typical Shutdown Current
? Internal Soft-Start Function
? -40℃ to +85℃ Operating Temperature Range
? Available in Green TSOT-23-5 and TDFN-2×2-6L
Packages

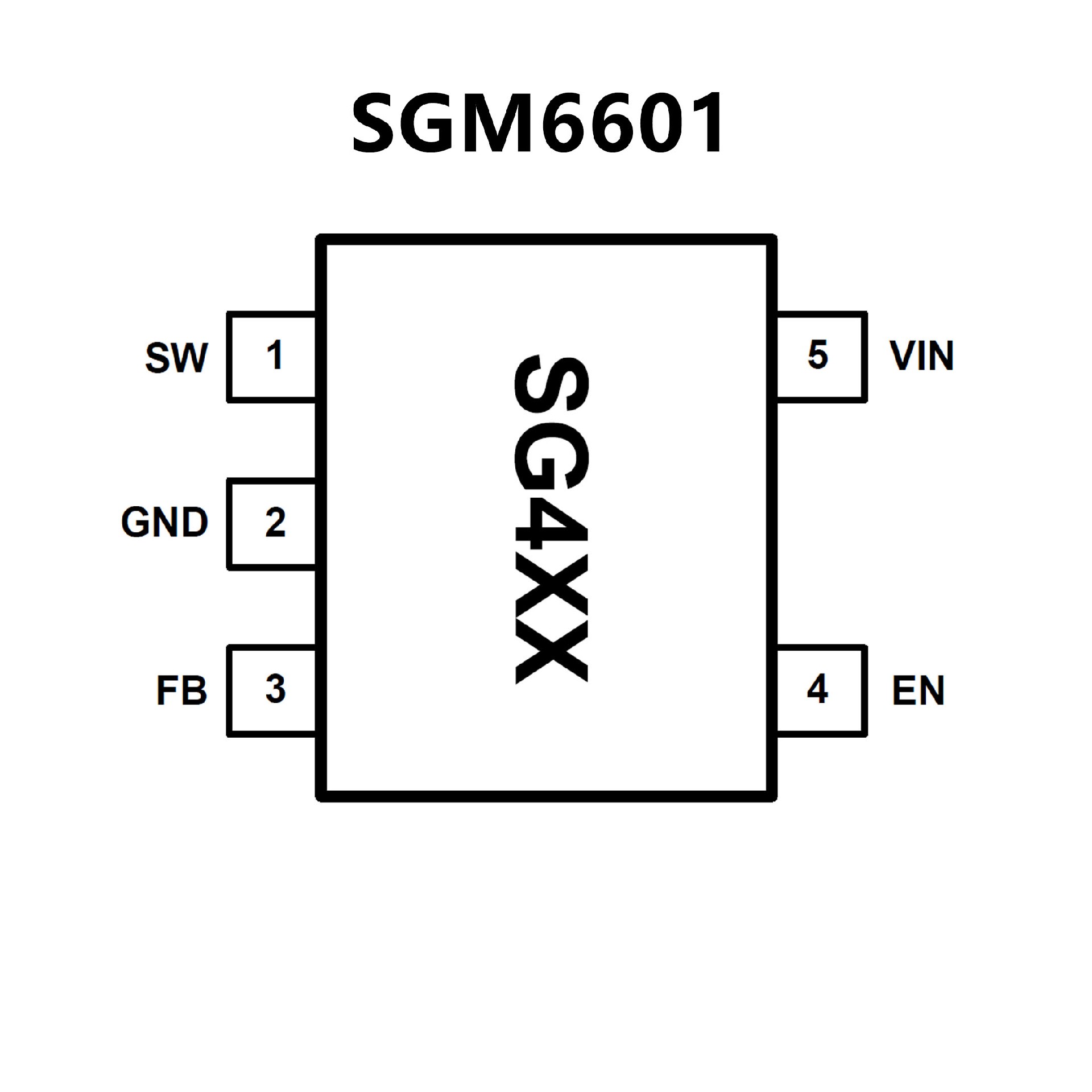

PIN CONFIGUTION
優勢替代
FEATURES
? Wide input voltage range from 2.7-V to 5.5-V
? 1.25-V (±2%) high accuracy reference voltage
? 1.2-MHz switching frequency
? Up to 93% efficiency
? Over 1-A (min.) power switch current limit
? Provide typical 12V / 200mA~300mA output from
3.3V~5V input
? Built-in Soft-Start

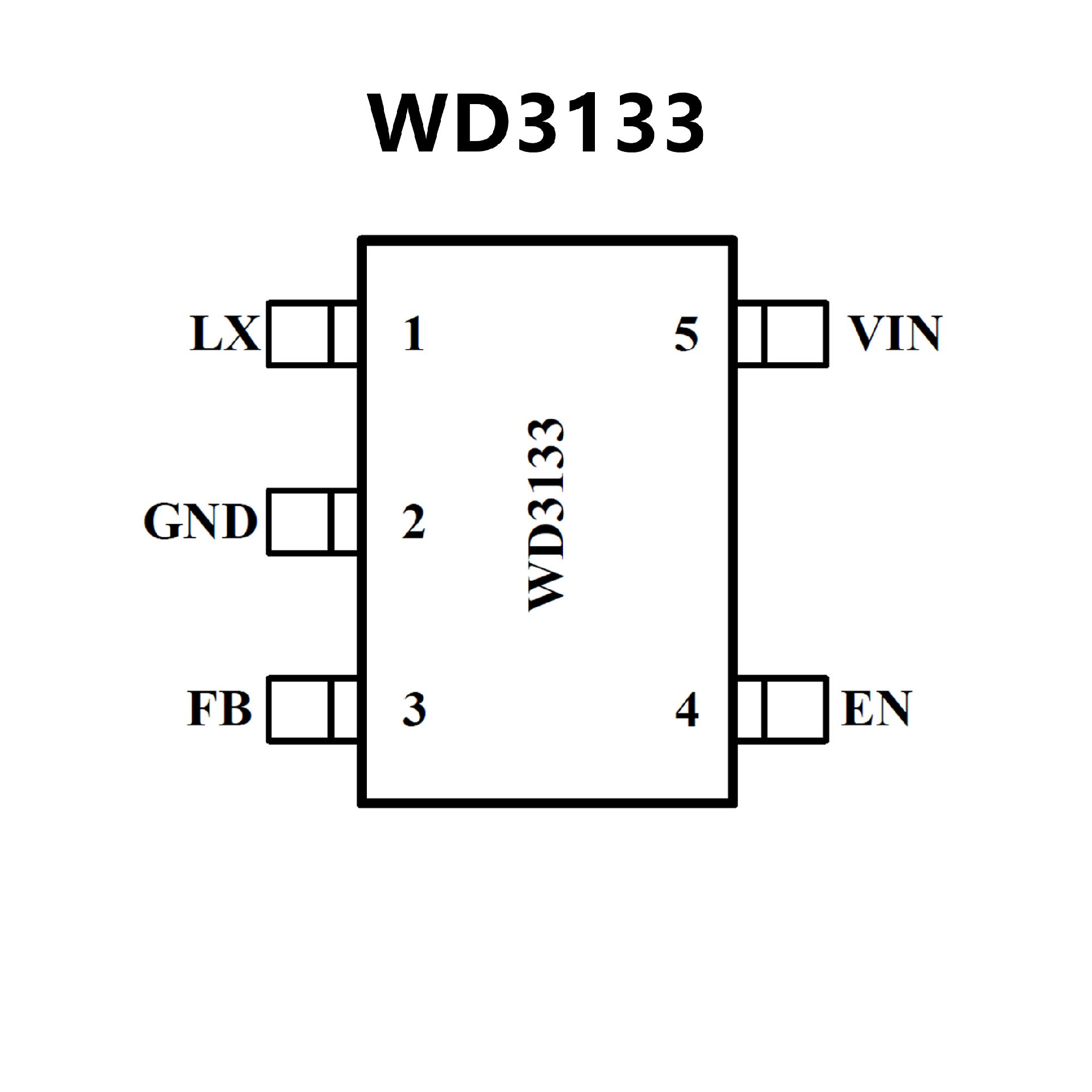

PIN CONFIGUTION
