SGM6603A-ADJ.pdf? 90% Efficient Synchronous Boost Converter
? Device Quiescent Current: 30μA (TYP)
? Less than 1μA Shutdown Current
? Input Voltage Range: 0.9V to 5.5V
? 3.3V and 5.0V Fixed Output Voltages
? Adjustable Output Voltage Up to 5.5V
? Output Voltage Clamping: 6V
? Power-Save Mode for Improved
Efficiency at LowOutput Power
? Load Disconnect During Shutdown
? Over-Temperature Protection
? Available in Green SOT-23-6 Package
? -40℃ to +85℃ Operating
Temperature Range

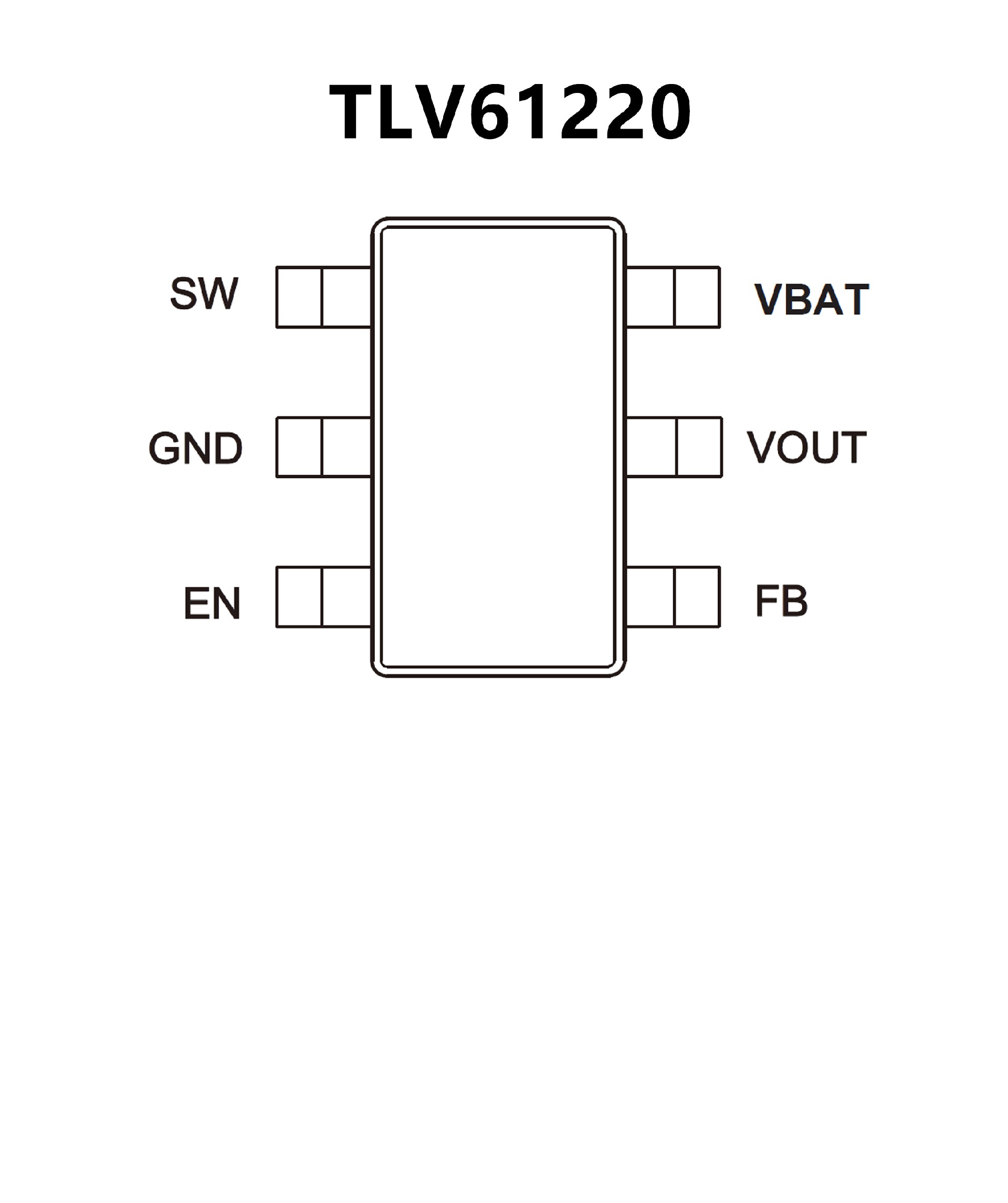

? Up to 95% Efficiency at Typical
Operating Conditions
? 5.5-μA Quiescent Current
? Startup Into Load at 0.7-V Input Voltage
? Operating Input Voltage from 0.7 V to 5.5 V
? Pass-Through Function during Shutdown
? Minimum Switching Current 200 mA
? Protections:
Output Overvoltage
Overtemperature
Input Undervoltage Lockout
? Adjustable Output Voltage
from 1.8 V to 5.5 V
? Small 6-pin Thin SOT-23 Package
