SGM6604.pdf? 1.85V to 5V Input Voltage Range, 1.6V after Start-up
? Output Voltage up to 20V
? Integrated Isolation Switch
? 1.12A (TYP) Switch Current
? Up to 92% Efficiency at 3.6V Input and 12V Output
? Ultra-Low Shutdown Current:
1.5μA (MAX) at VIN = 3.6V
? Auto Power-Save Operation Mode at Light Load
? Internal 6ms Soft-Start Time
? True Disconnection between Input and Output
during Shutdown
? Output Short-Circuit Protection (SCP)
? Output Over-Voltage Protection (OVP)
? Thermal Shutdown Protection
? -40℃ to +85℃ Operating Temperature Range

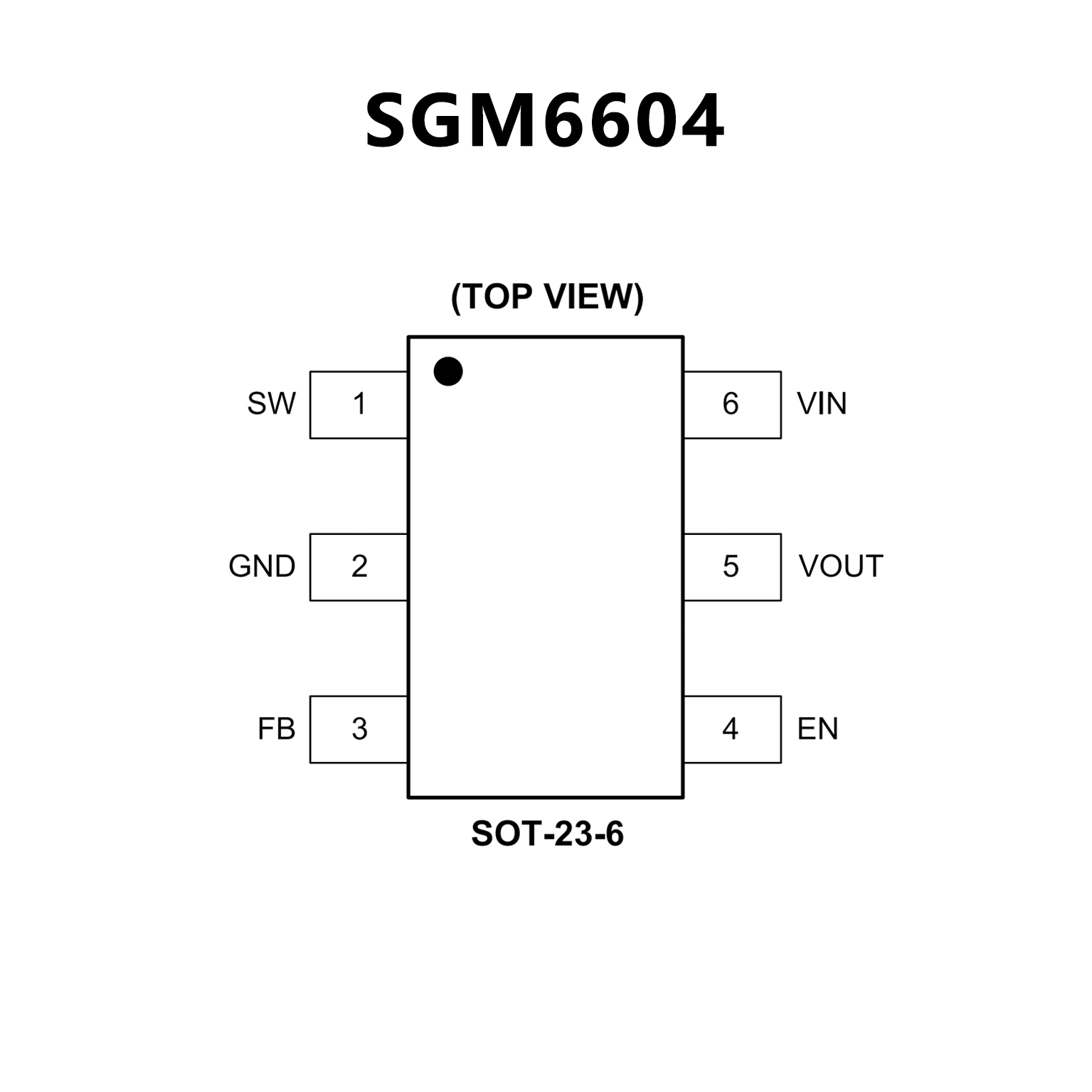

? Available in a Green SOT-23-6 Package
? Input voltage range: 1.8 V to
5.5 V, down to 1.6 V after start-up
? Output voltage up to 28 V
? Integrated power diode and isolation switch
? 980-mA (typical) switch current
? Up to 85% efficiency at 3.6-V input and 12-V output
? ±2.5% output voltage accuracy
? Power save operation mode at light load
? Internal 7-ms soft start time
? True disconnection between
input and output during shutdown
? Output short circuit protection
? Output overvoltage protection
? Thermal shutdown protection

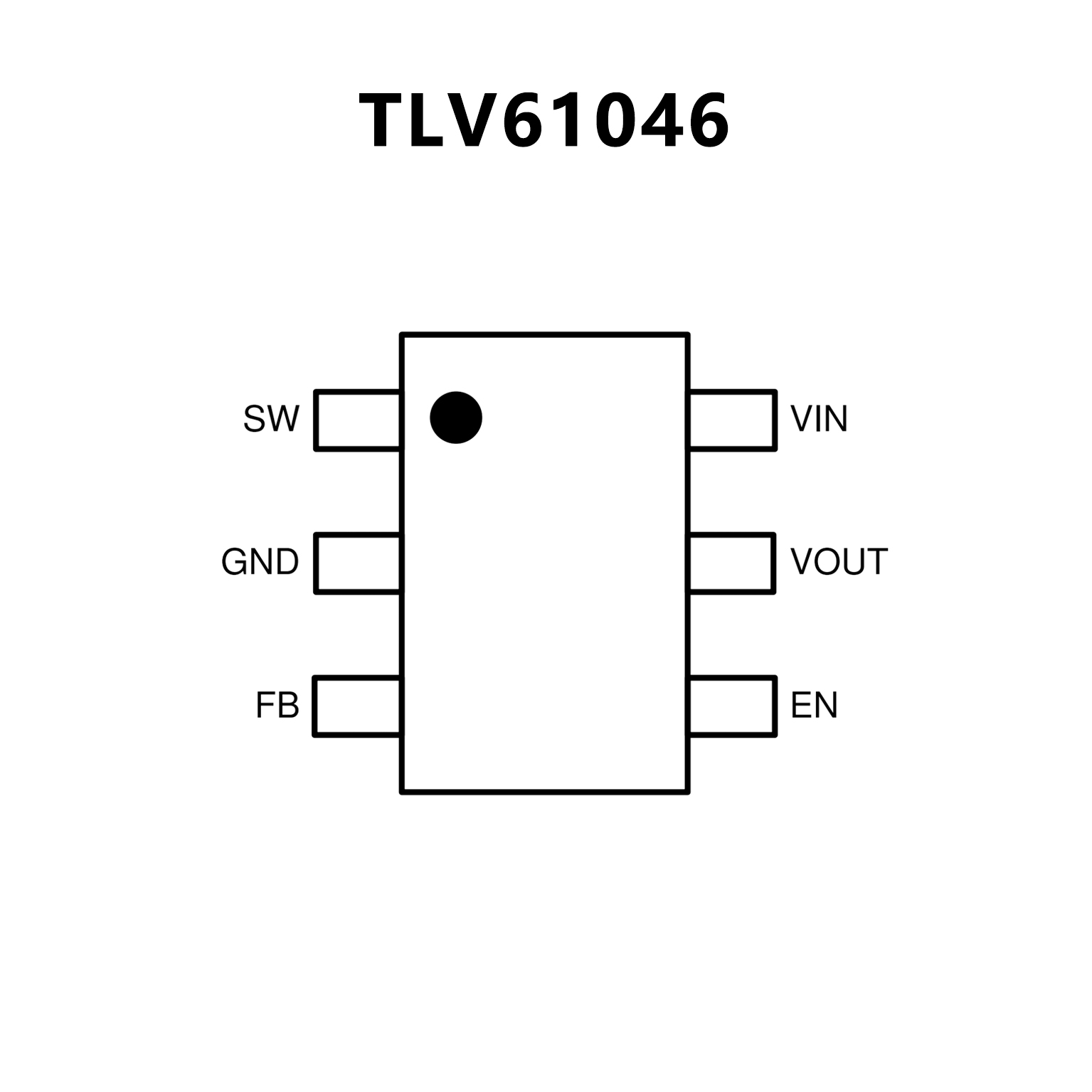

? 3-mm × 3-mm SOT23-6 package
? Create a custom design using the
TLV61046A with the WEBENCH? Power Designer
