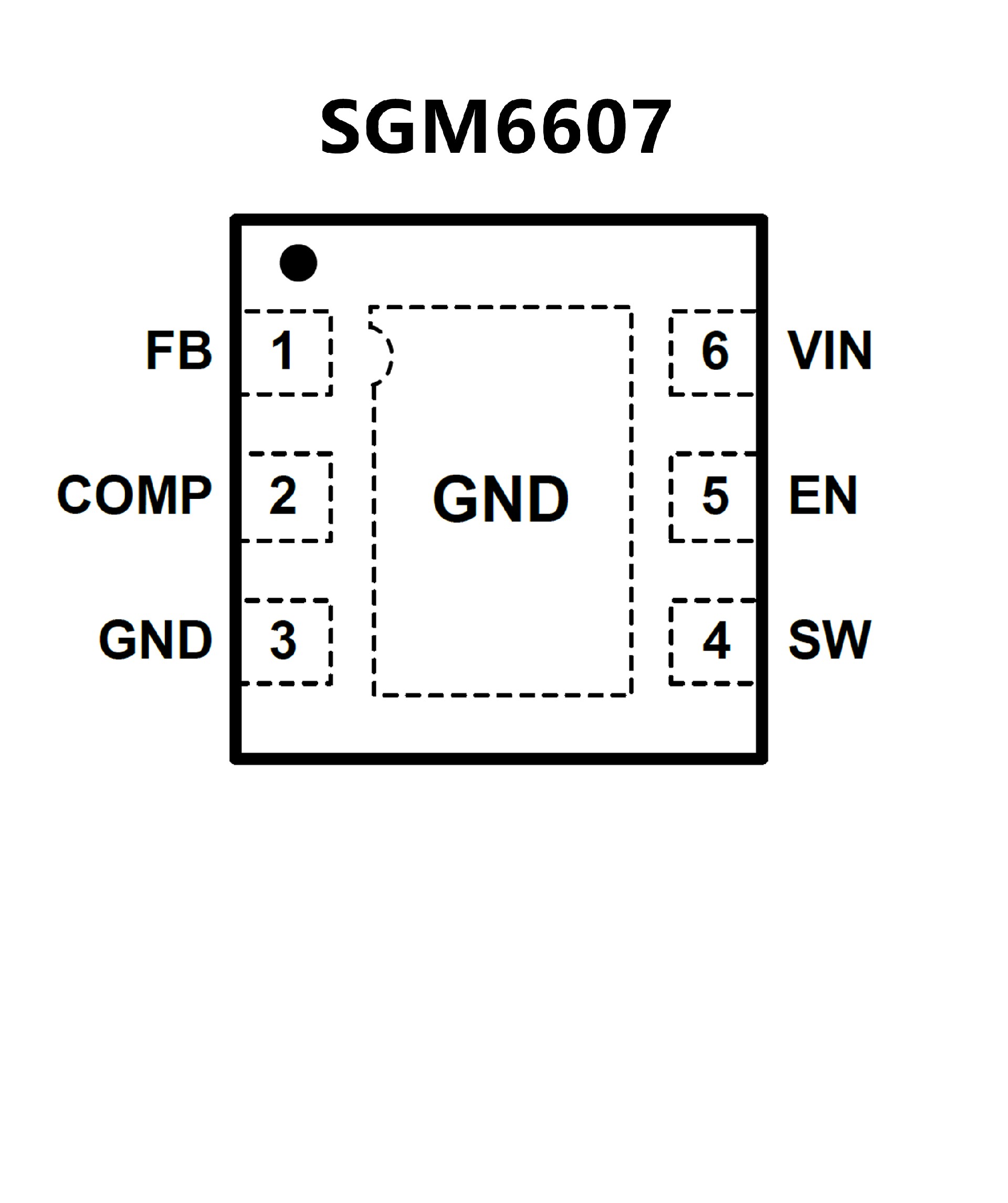

SGM6607AYTDI6G.pdf? 3V to 20V Input Voltage Range
? High Output Voltage: Up to 38V
? 41V Over-Voltage Protection
? 1.1A Integrated Switch
? 1.2MHz Fixed Switching Frequency
? 12V at 300mA and 24V at 150mA from 5V Input
(TYP)
? Up to 93% Efficiency
? Skip-Switching for Light Load
? Built-In Soft-Start Function
? 500kΩ Pull-Down Resistor on EN Pin
? -40℃ to +85℃ Operating Temperature Range
? Available in Green TDFN-2×2-6L and TSOT-23-6
Packages

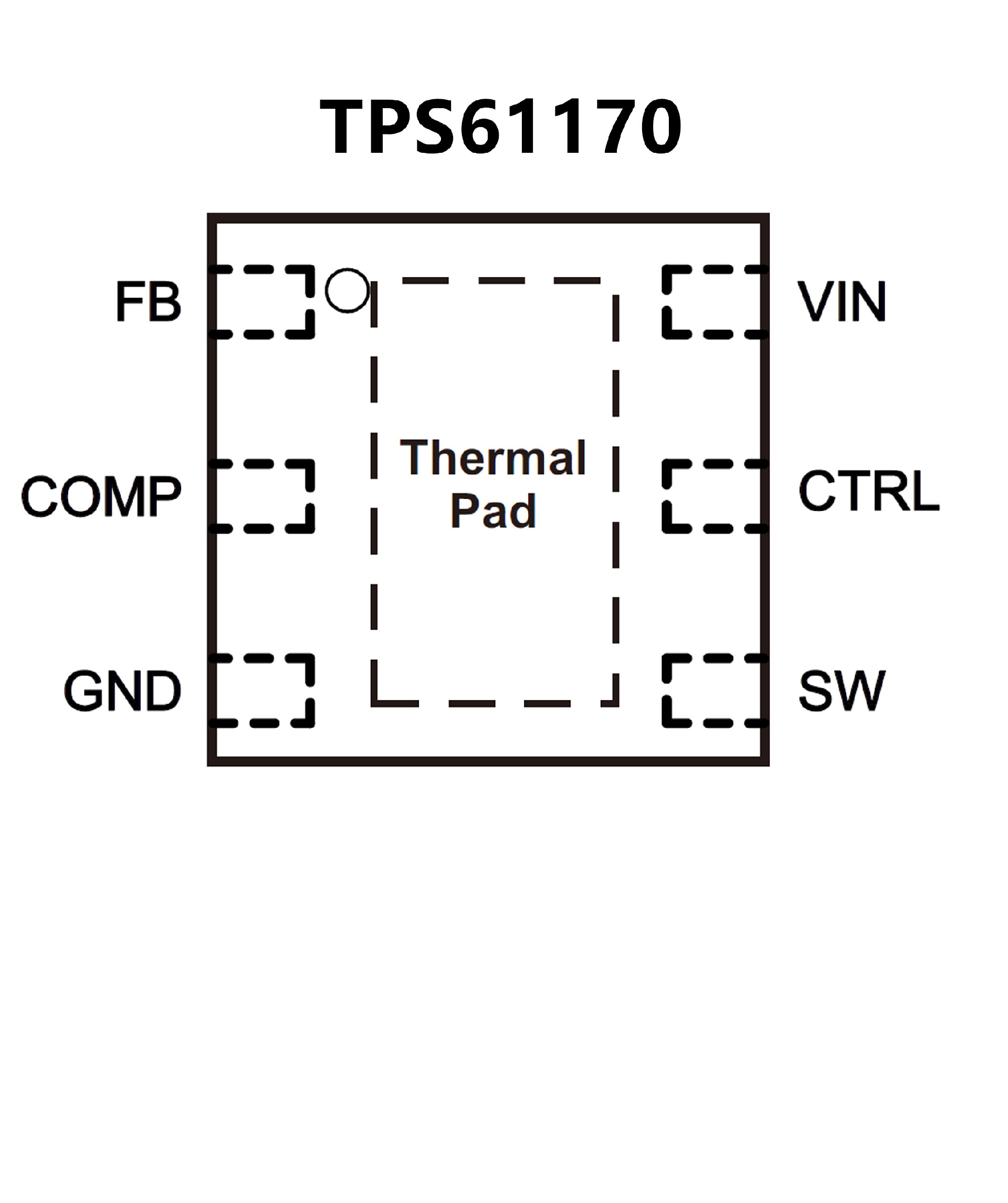

? 3-V to 18-V Input Voltage Range
? High Output Voltage: Up to 38 V
? 1.2-A Integrated Switch
? 1.2-MHz Fixed Switching Frequency
? 12 V at 300 mA and 24 V at 150 mA
From 5-V Input (Typical)
? Up to 93% Efficiency
? On-The-Fly Output Voltage Reprogramming
? Skip-Switching Cycle for Output Regulation at Light Load
? Built-in Soft Start
? 6-Pin, 2-mm × 2-mm QFN Package
