20V, 10A Synchronous Boost Converter with Load Disconnect Control,Replace TPS61178.
SGM6612A
SGM6612A.pdf
SGM6612A.pdfFEATURES
? Input Voltage Range: 2.7V to 16V
? Output Voltage Range: 4.5V to 20V
? Up to 10A Resistor-Programmable Current Limit
? 15mΩ Low RDSON Internal MOSFETs
? Up to 95% Efficiency at VIN = 7.2V, VOUT = 16V, IOUT = 2A
? Up to 2.2MHz Resistor-Programmable Switching Frequency
? Gate Driver for Load Disconnect
? Hiccup Short Protection
? Over-Voltage Protection
? Auto PFM Mode at Light Load
? Available in a Green TQFN-3×3.5-13L Package
PIN CONFIGUTION
優勢替代
FEATURES
? Input Voltage Range: 2.7 V to 20 V
? Output Voltage Range: 4.5 V to 20 V
? Programmable Switch Peak Current: up to 10 A
? Two 16-m? FETs Integrated
? Efficiency up to 96%: VIN = 7.2 V, VOUT = 16 V,
IOUT = 2 A
? Adjustable Switching Frequency: up to 2.2 MHz
? External Clock Synchronization: 200 kHz to 2.2MHz
? Gate Driver for Load Disconnect
? Hiccup Short Protection
? Over Voltage Protection
? Auto PFM Operation - TPS61178
? Forced PWM Mode - TPS611781
? 3.0-mm x 3.5-mm 13-pin VQFN Hotrod Package
? Create a Custom Design Using the TPS61178
With the WEBENCH? Power Designer

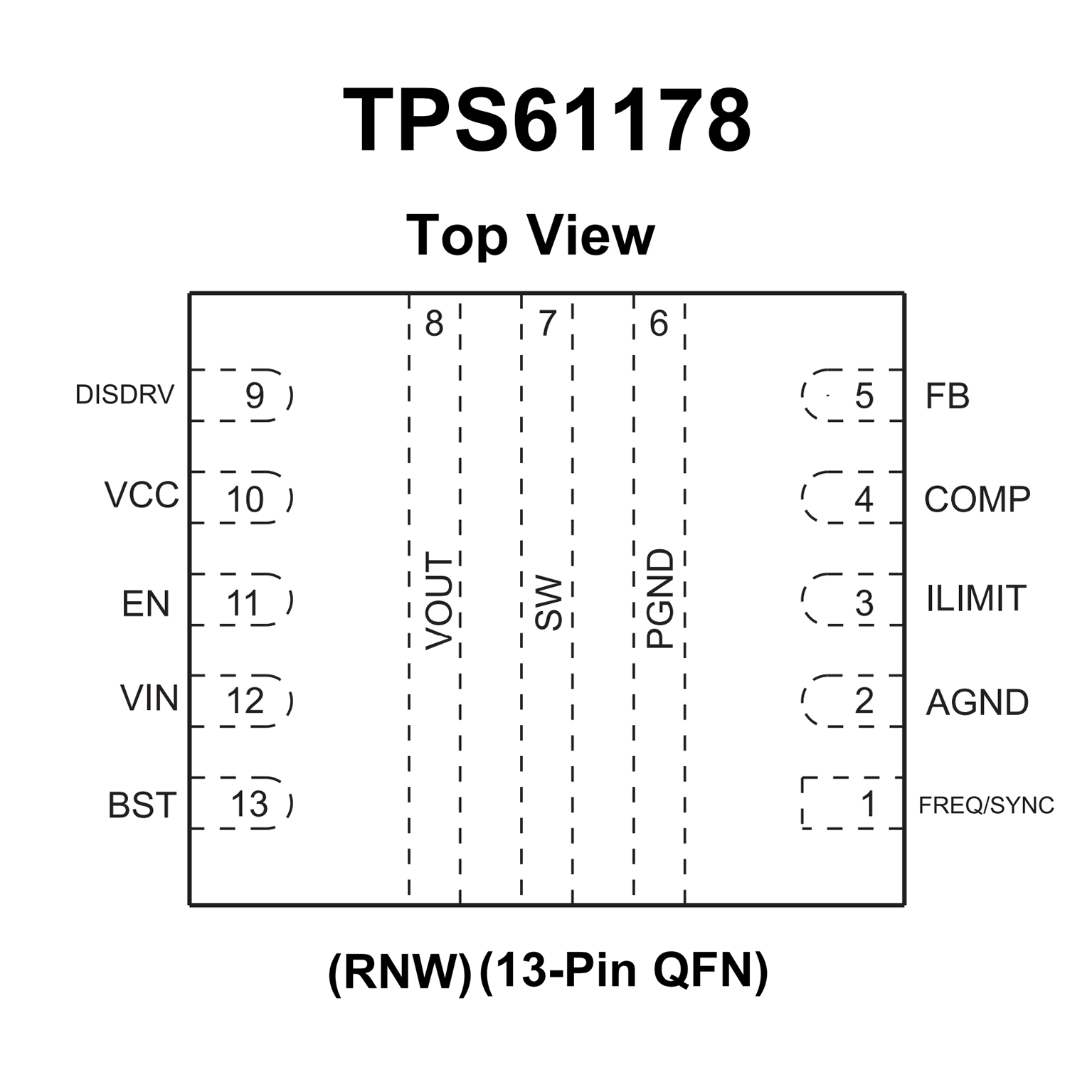

PIN CONFIGUTION
