100-6000 MHz High Linearity SPDT Switch, SGM72002 Replace RF1630.
SGM72002
SGM72002.pdf
SGM72002.pdfFEATURES
? Advanced SOI Process
? Broad Frequency Range: 0.1GHz to 3GHz
? Low Insertion Loss: 0.3dB (TYP) at 2.7GHz
? High Isolation: > 28dB at 2.7GHz
? GPIO Control Interface
? No External DC Blocking Capacitors Required
? Available in a Green UTDFN-1.1×0.7-6L Package

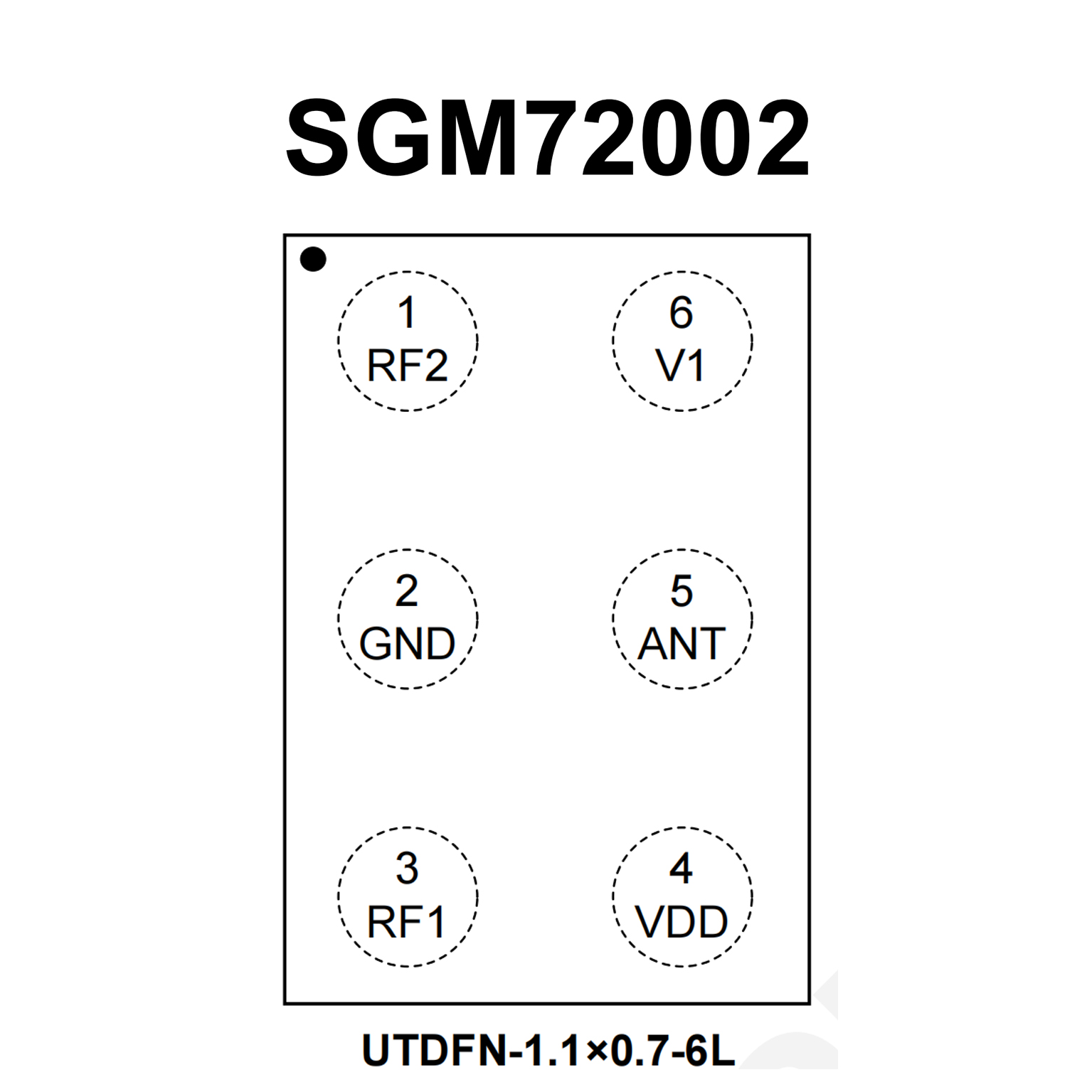

PIN CONFIGUTION
優勢替代
FEATURES
? Excellent insertion loss and isolation performance
? Exceptional linearity and harmonic performance
? Ideal for LTE applications
? Very compact 1.1 mm x 0.7 mm x 0.55 mm WLCSP
? Very low current consumption
? Broadband performance suitable for all cellular modulation
schemes up to 6 GHz
? DC blocking capacitors are not required in typical applications
PIN CONFIGUTION
