700 - 2700 MHz 4G Routing & Diversity SP3T Switch,Replace RF1628.
SGM72003
SGM72003.pdf
SGM72003.pdfFEATURES
? Supply Voltage Range: 2.4V to 3V
? GPIO Controller
? Operating Frequency Range: 0.1GHz to 3GHz
? Low Insertion Loss: 0.5dB (TYP) at 2.7GHz
? High Isolation: 20dB (MIN) at 2.7GHz
? Advanced Silicon-On-Insulator (SOI) Process
? No External DC Blocking Capacitors Required
? Available in a Green UTDFN-1.1×1.1-9L Package

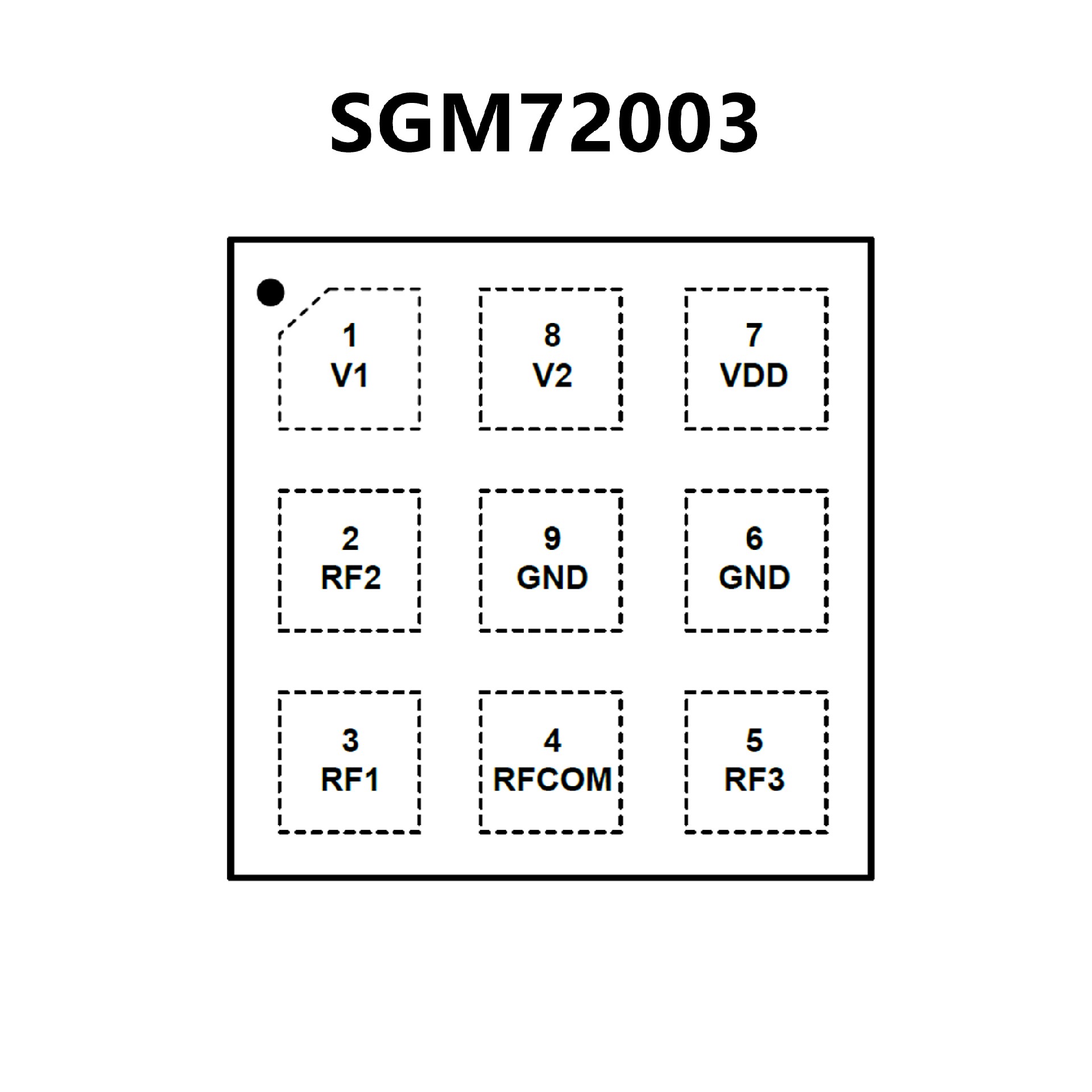

PIN CONFIGUTION
優勢替代
FEATURES
? Broadband performance suitable for all cellular
modulation schemes up to 2.7GHz
? Excellent insertion loss and isolation performance
? 0.5 dB Typ IL @ 2.7GHz
? Exceptional linearity performance ideal for CDMA,
WCDMA applications
? Very low current consumption
? Very Compact 1.1mmx1.1mm module
? No External DC blocking Capacitors Required on RF
Paths unless DC is applied externally

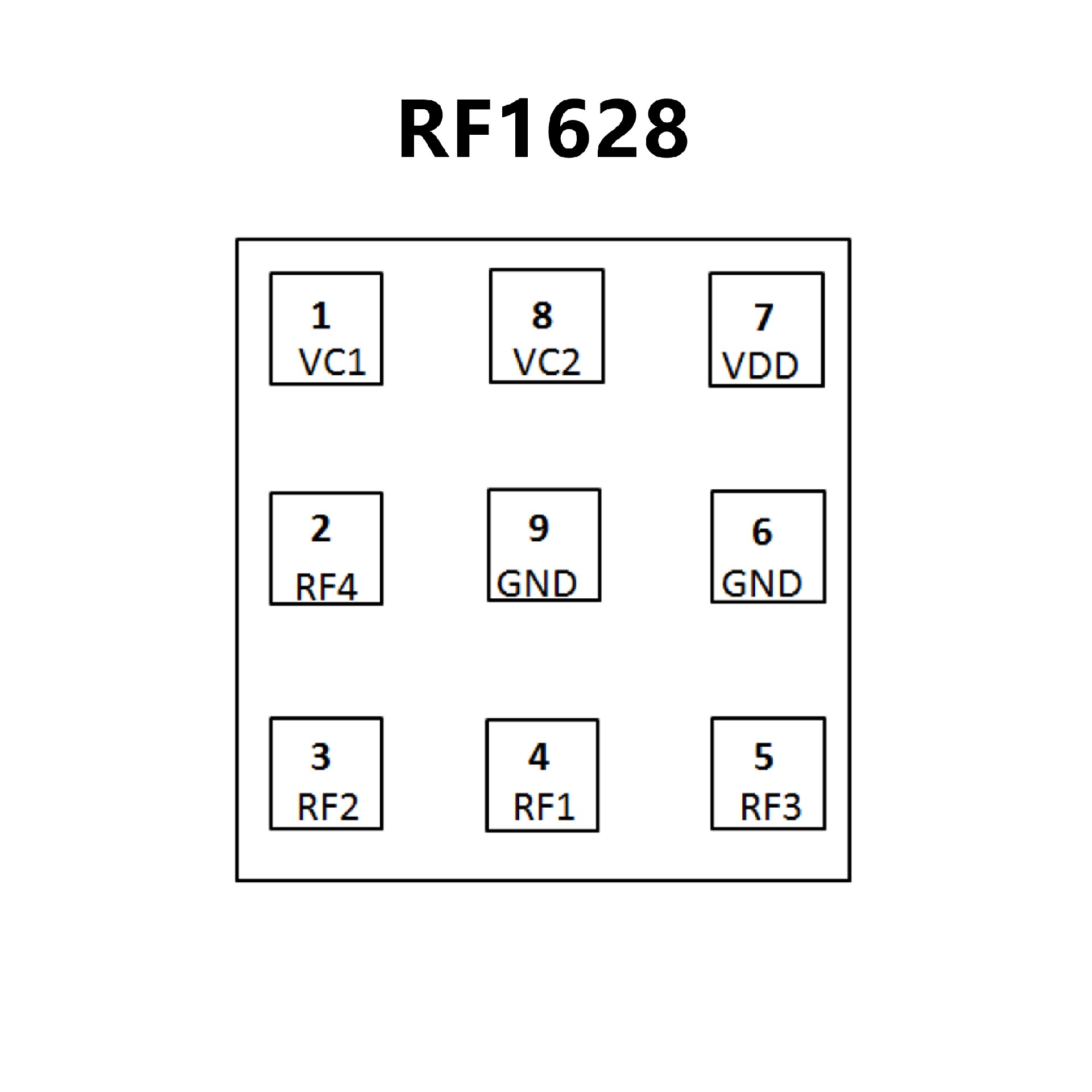

PIN CONFIGUTION
