0.4 to 3.8 GHz SP4T Switch,SGM72004A Replace SKY13626.
SGM72004A
SGM72004A.pdf
SGM72004A.pdfFEATURES
? Supply Voltage Range: 2.4V to 3V
? GPIO Controller
? Operating Frequency Range: 0.1GHz to 3GHz
? Advanced Silicon-On-Insulator (SOI) Process
? Low Insertion Loss: 0.4dB (TYP) at 2.7GHz
? High Isolation: 18dB (MIN) at 2.7GHz
? No External DC Blocking Capacitors Required
? Available in a Green ULGA-1.1×1.1-9L Package

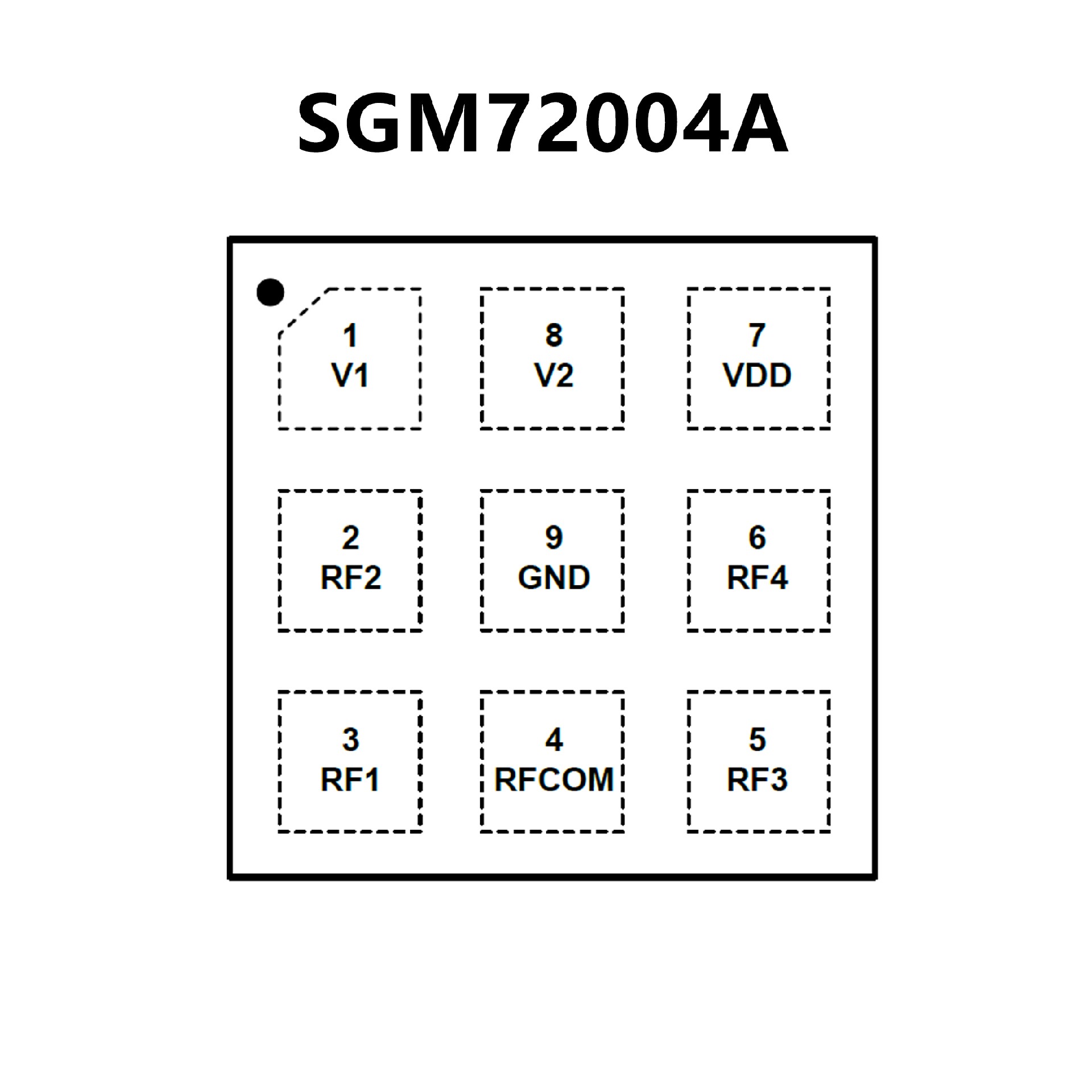

PIN CONFIGUTION
優勢替代
FEATURES
? Broadband frequency range: 0.4 to 3.8 GHz
? Low insertion loss
? High isolation
? Integrated GPIO interface
? No DC blocking capacitors required
? Lead (Pb)-free and RoHS-compliant
? Small-size QFN (9-pin, 1.1 ′ 1.1 ′ 0.5 mm) package
(MSL1, 260 °C per JEDEC J-STD-020)
PIN CONFIGUTION
