0.1GHz – 3GHz SP4T Antenna Switch,SGM72004A Replace WS7854.
SGM72004A
SGM72004A.pdf
SGM72004A.pdfFEATURES
? Supply Voltage Range: 2.4V to 3V
? GPIO Controller
? Operating Frequency Range: 0.1GHz to 3GHz
? Advanced Silicon-On-Insulator (SOI) Process
? Low Insertion Loss: 0.4dB (TYP) at 2.7GHz
? High Isolation: 18dB (MIN) at 2.7GHz
? No External DC Blocking Capacitors Required
? Available in a Green ULGA-1.1×1.1-9L Package

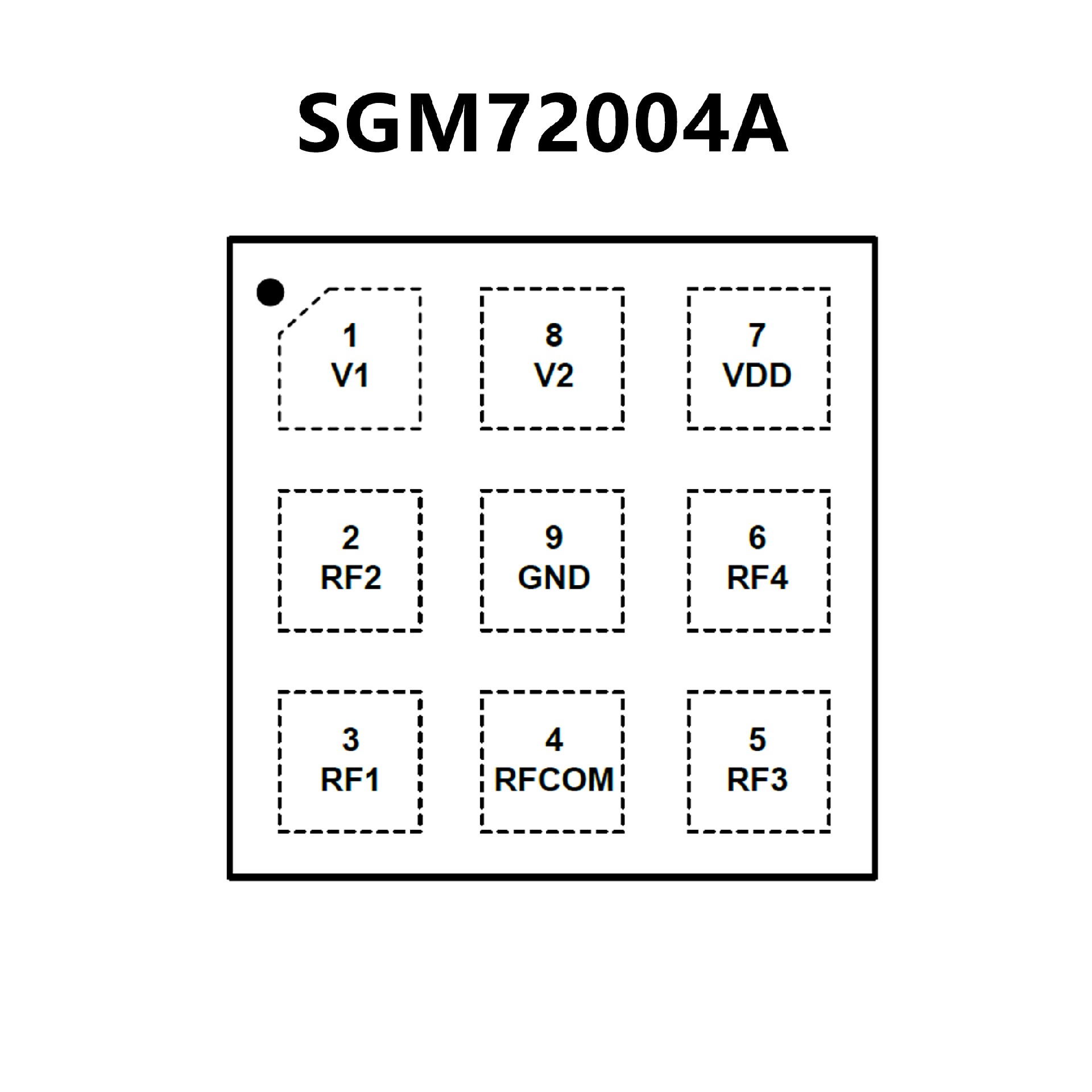

PIN CONFIGUTION
優勢替代
FEATURES
? Small, low profile package 1.1mm x 1.1mm x
0.55mm
? Working frequency up to 3GHz
? Very low insertion loss
? Excellent isolation performance
? Low power consumption
? Exceptional linearity performance for WCDMA/
LTE application
? Low harmonic generation
? Very good ESD performance

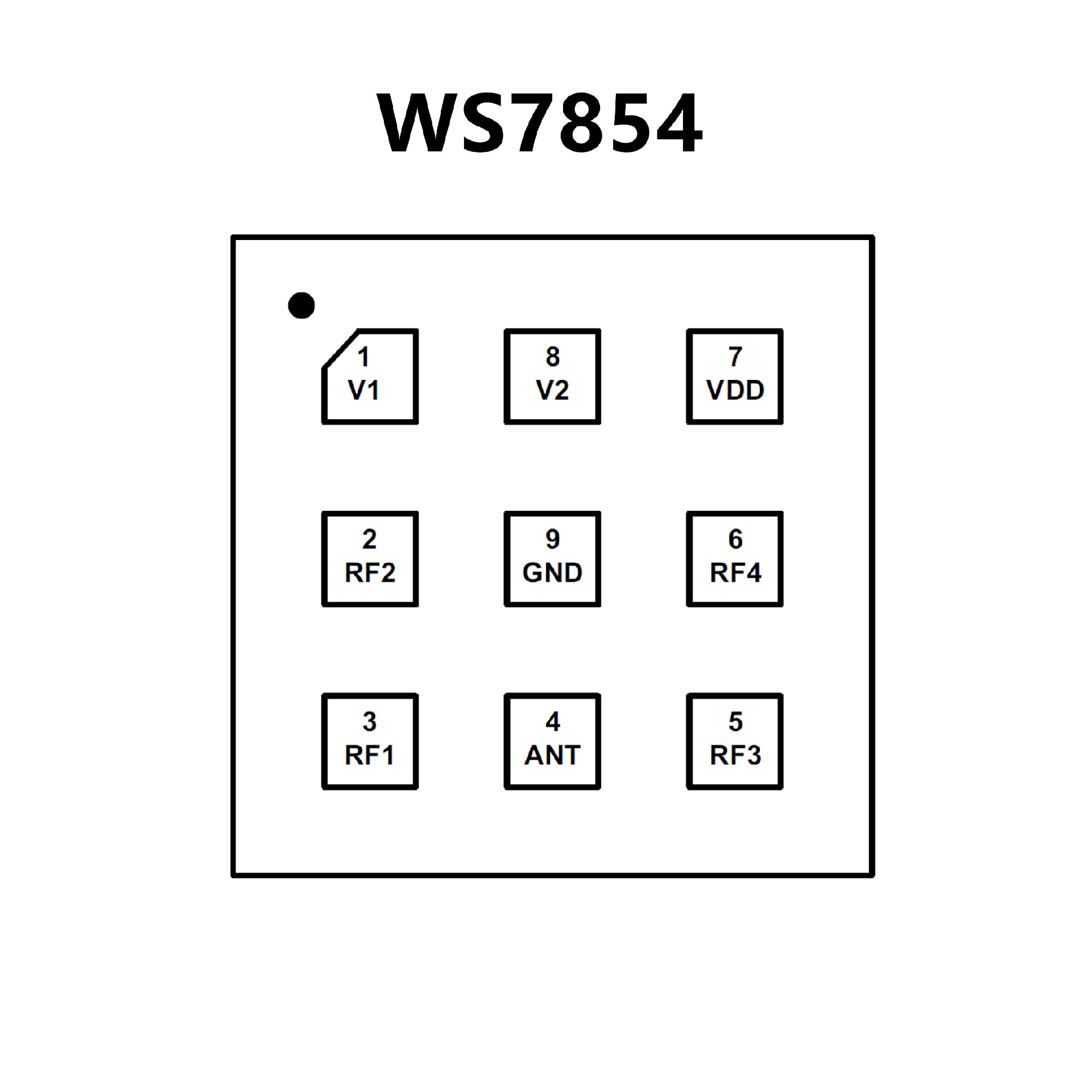

PIN CONFIGUTION
