0.1 to 6.0 GHz SP6T Antenna Switch,SGM72006 Replace SKY13416.
SGM72006
SGM72006.pdf
SGM72006.pdfFEATURES
? Supply Voltage Range: 2.4V to 3.4V
? GPIO Controller
? Low Insertion Loss: 0.6dB (TYP) at 2.7GHz
? Operating Frequency Range: 0.1GHz to 3GHz
? High Isolation: 20dB (MIN) at 2.7GHz
? Advanced Silicon-On-Insulator (SOI) Process
? No External DC Blocking Capacitors Required
? Available in a Green UTQFN-2×2-14L Package

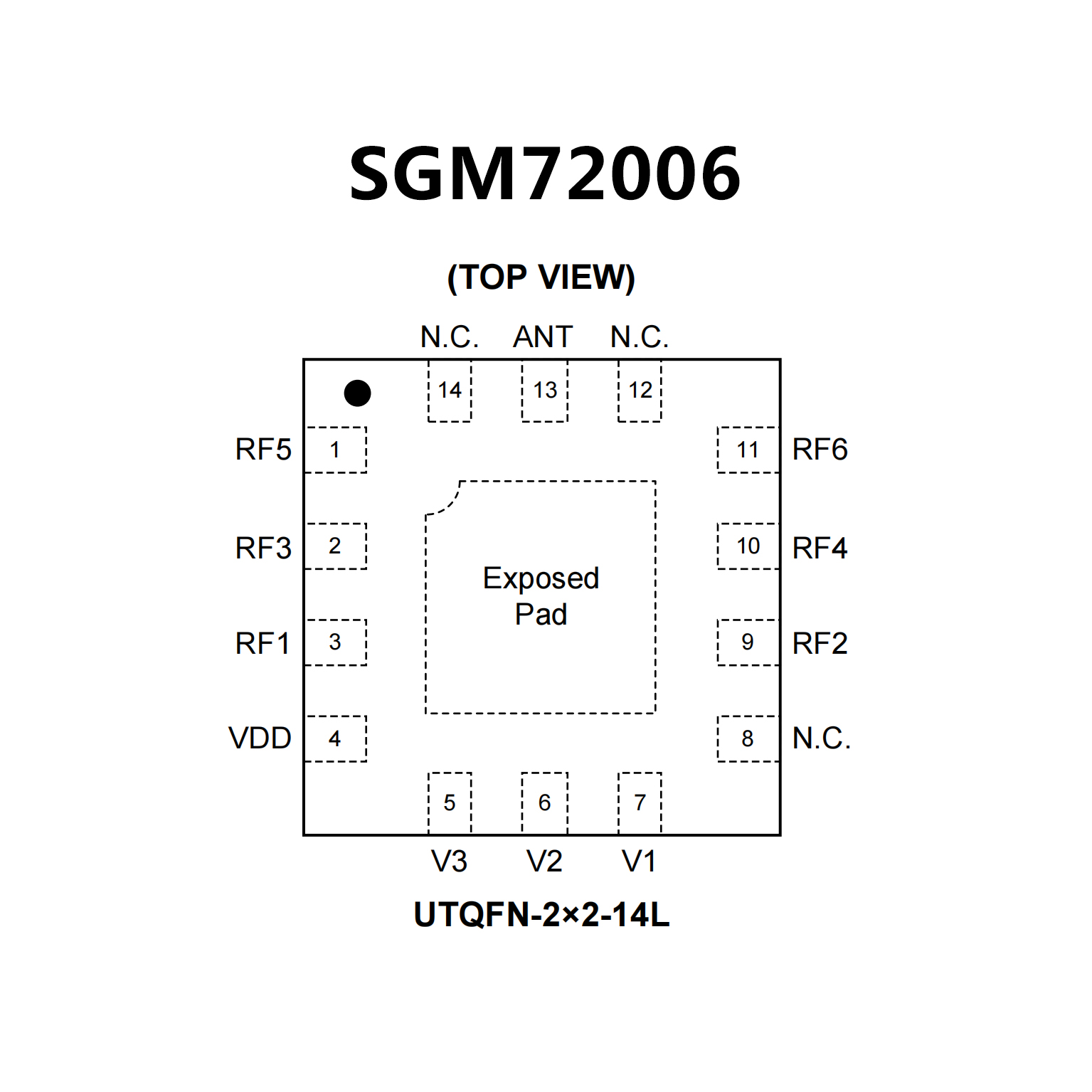

PIN CONFIGUTION
優勢替代
FEATURES
? Broadband frequency range: 0.1 to 6.0 GHz
? Low insertion loss: 0.6 dB typical @ 5.0 GHz
? High isolation: >26 dB @ 2.7 GHz
? Integrated logic
? Small QFN (14-pin, 2.0 x 2.0 mm) package
(MSL1, 260 °C per JEDEC J-STD-020)

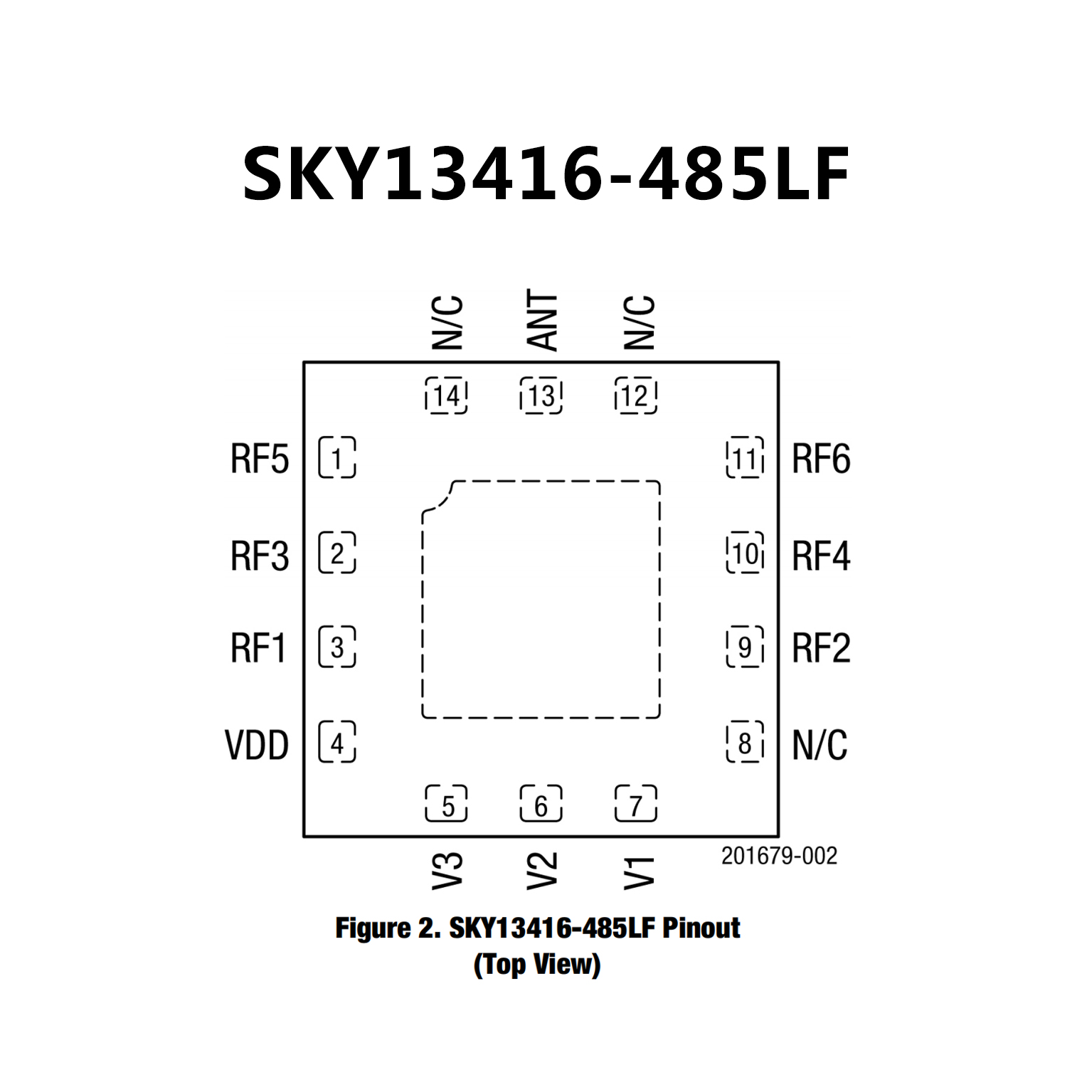

PIN CONFIGUTION
