SP8T Diversity RF Switch, SGM72008 Replace SKY13418.
SGM72008
SGM72008.pdf
SGM72008.pdfFEATURES
? Advanced SOI Process
? Broad Frequency Range: 0.1GHz to 3GHz
? Low Insertion Loss: 0.6dB (TYP) at 2.7GHz
? High Isolation: > 20dB at 2.7GHz
? GPIO Control Interface
? Compact 2mm × 2mm, 14-Pin, UTQFN Package
? No External DC Blocking Capacitors Required

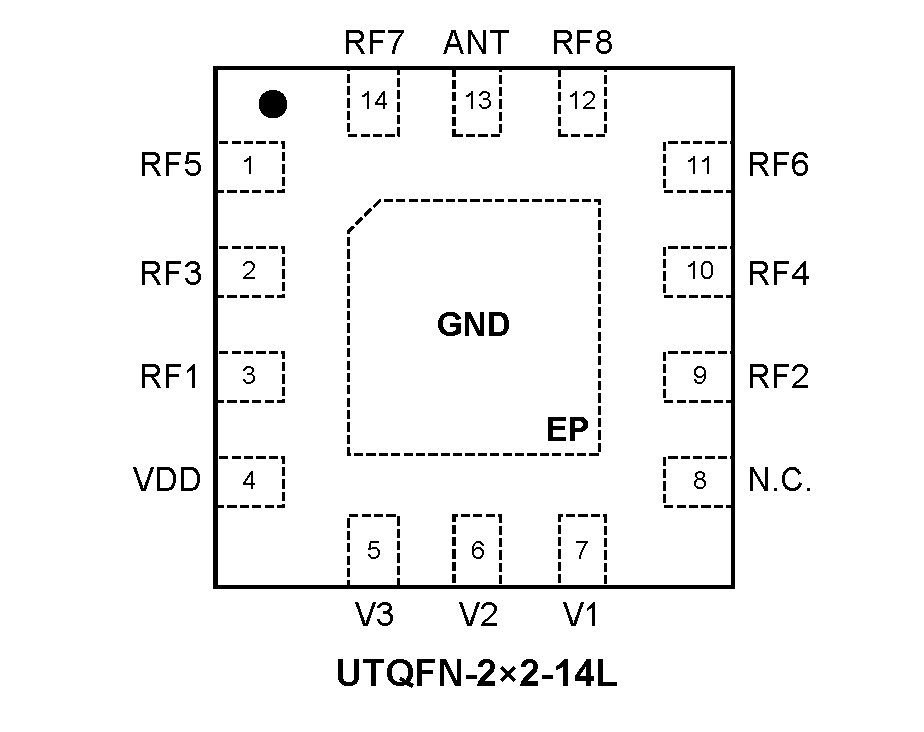

PIN CONFIGUTION
優勢替代
FEATURES
? Broadband frequency range: 0.1 to 3.8 GHz
? Low insertion loss: 0.7 dB typical @ 2.7 GHz
? High isolation: >20 dB @ 2.7 GHz
? Integrated logic
? Small QFN (14-pin, 2.0 x 2.0 mm) package
(MSL1, 260℃ per JEDEC J-STD-020)

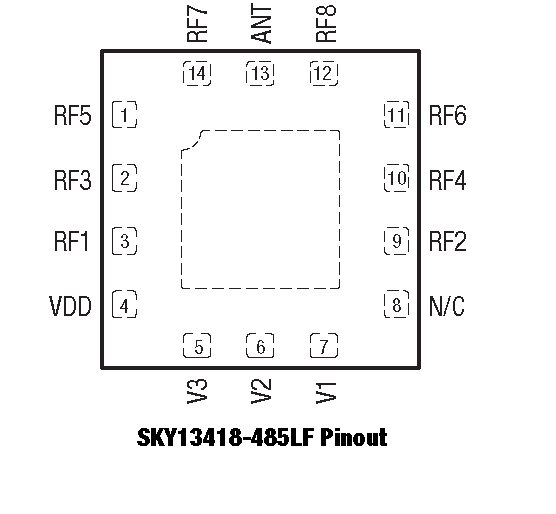

PIN CONFIGUTION
