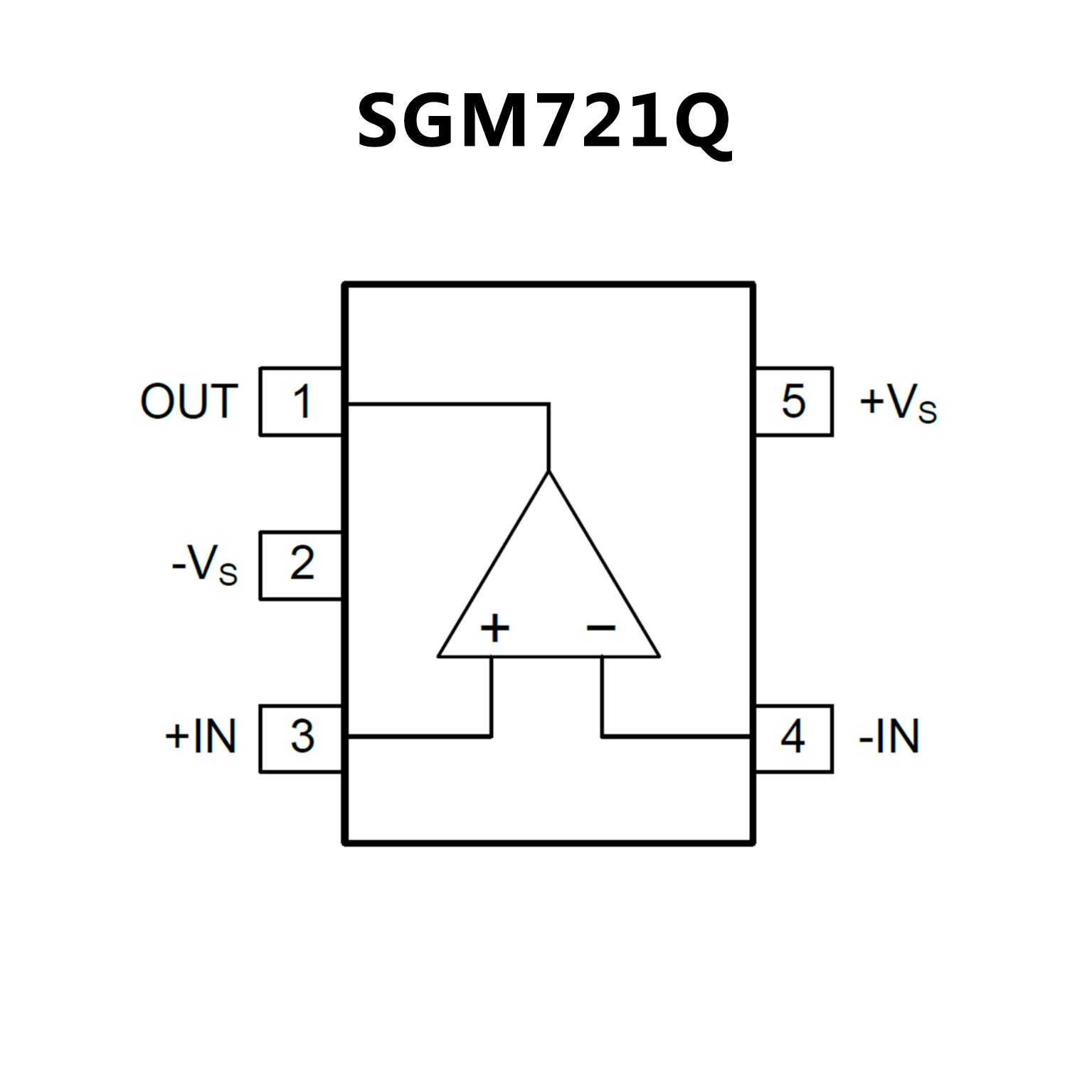

SGM721Q.pdf? AEC-Q100 Qualified for Automotive Applications Device Temperature Grade 1
TA = -40℃ to +125℃
? Input Offset Voltage: 1.5mV (TYP)
? High Gain-Bandwidth Product: 11MHz
? High Slew Rate: 7V/μs
? Settling Time to 0.1% with 2V Step: 0.4μs
? Overload Recovery Time: 0.5μs
? Low Noise: 8.5nV/√Hz at 10kHz
? Rail-to-Rail Input and Output
? Supply Voltage Range: 2.1V to 5.5V
? Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
? Low Quiescent Current: 1.2mA (TYP)
? Available in a Green SOT-23-5 Package

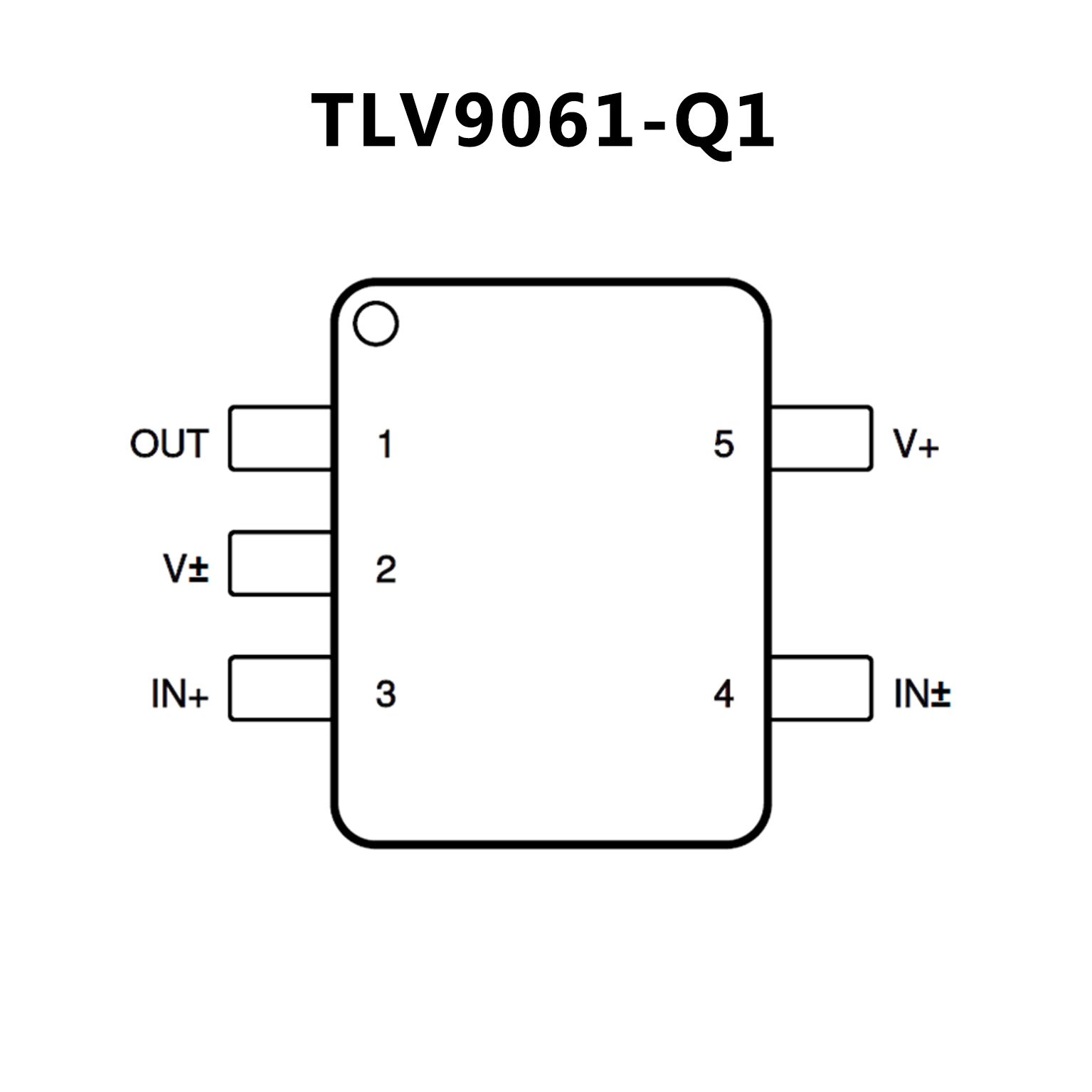

? AEC-Q100 qualified for automotive applications
Temperature grade 1: –40°C to +125°C, TA
Device HBM ESD classification level 3A
Device CDM ESD classification level C6
? Rail-to-rail input and output
? Low input offset voltage: ±0.3 mV
? Unity-gain bandwidth: 10 MHz
? Low broadband noise: 10 nV/√ Hz
? Low input bias current: 0.5 pA
? Low quiescent current: 538 μA
? Unity-gain stable
? Internal RFI and EMI filter
? Wide supply range: 1.8 V to 5.5 V
? Easier to stabilize with higher
capacitive load due to resistive open-loop output impedance
? Shutdown version: TLV906xS
? Functional Safety-Capable
Documentation available to aid
functional safety system design
