0.4 to 3.8 GHz DPDT Switch,SGM72322A Replace SKY13596.
SGM72322A
SGM72322A.pdf
SGM72322A.pdfFEATURES
? Operating Frequency Range: 0.4GHz to 3.8GHz
? Supply Voltage Range: 1.7V to 3.3V
? Low Insertion Loss
? High Isolation
? Advanced Silicon-On-Insulator (SOI) Process
? Single Control Voltage Input
? GSM Power Handling
? No External DC Blocking Capacitors Required
? Available in a Green UTQFN-2×2-12AL Package

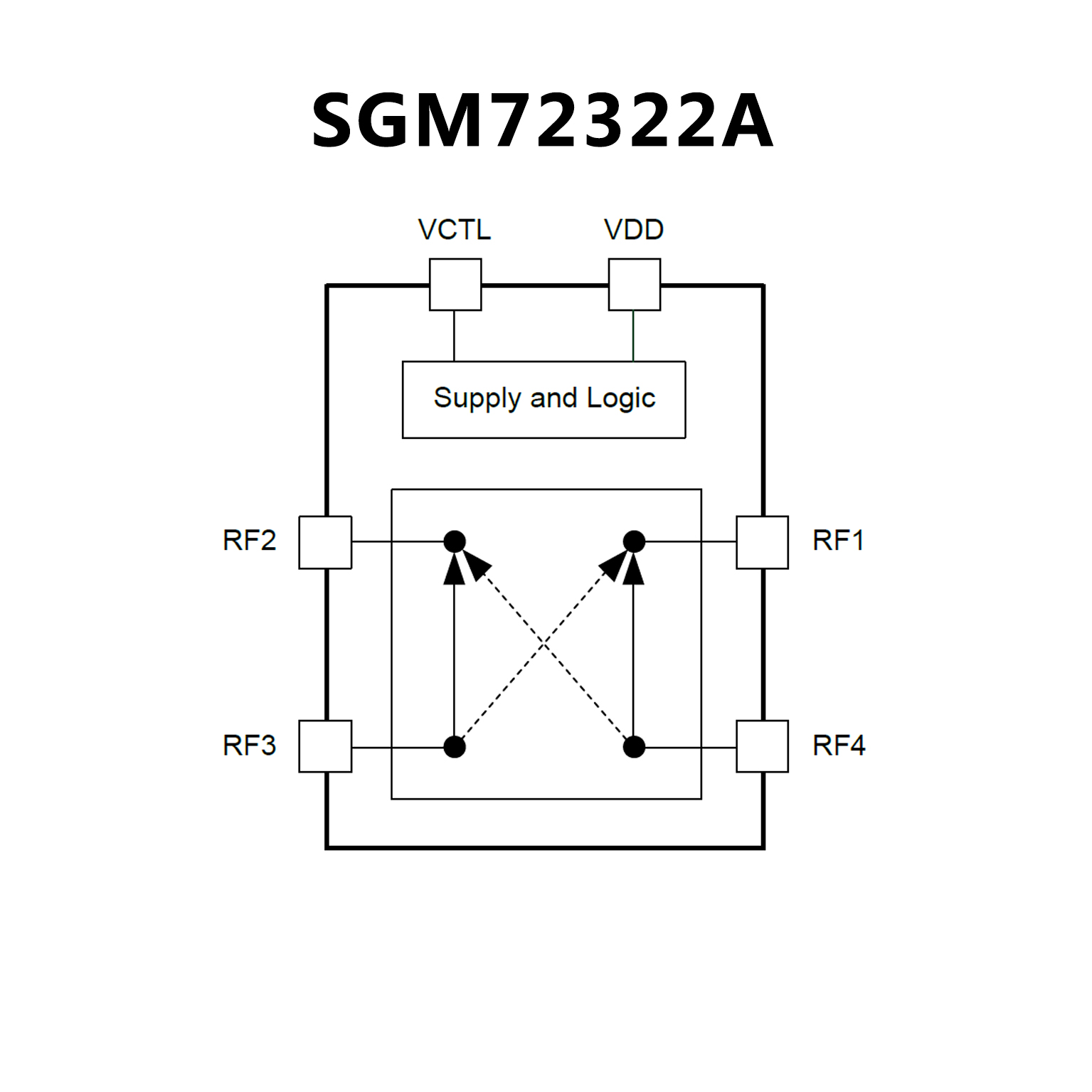

PIN CONFIGUTION
優勢替代
FEATURES
? Single control voltage input
? Broadband frequency range: 0.4 to 3.8 GHz
? Low insertion loss: 0.5 dB @ 2.7 GHz
? No DC blocking capacitors required
? Positive control voltage range: 1.35 to 3.1 V
? GSM power handling
? Small, QFN (12-pin, 2 x 2 mm) package
(MSL1, 260 °C per JEDEC J-STD-020)

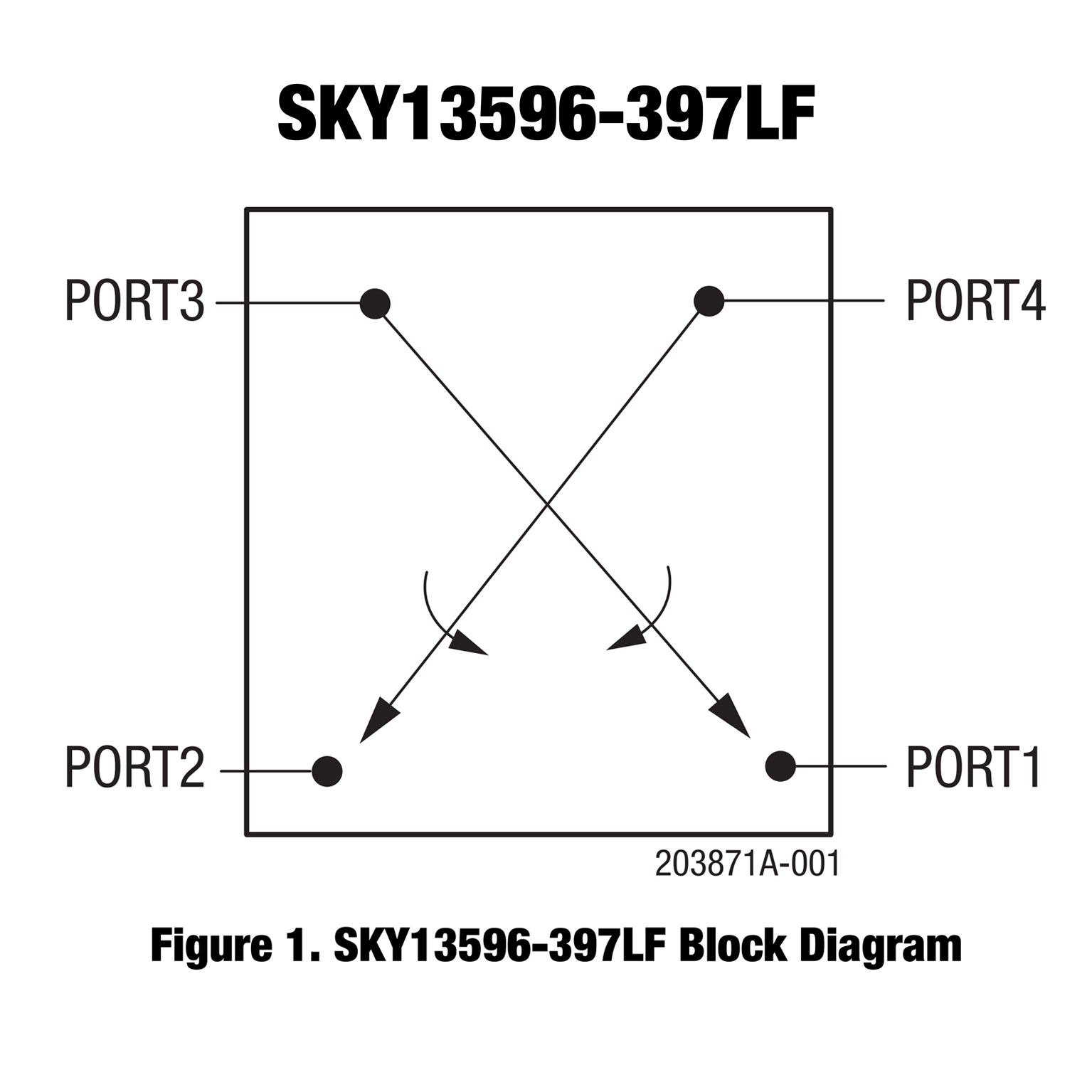

PIN CONFIGUTION
