SGM724.pdf? Rail-to-Rail Input and Output
? Input Offset Voltage: 4mV (MAX)
? High Gain-Bandwidth Product: 11MHz
? High Slew Rate: 8.5V/μs
? Settling Time to 0.1% with 2V Step: 0.21μs
? Overload Recovery Time: 0.6μs
? Low Noise: 8.5nV/√Hz at 10kHz
? Supply Voltage Range: 2.1V to 5.5V
? Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
? Low Power:SGM724: 1.1mA/Amplifier (TYP)
? -40℃ to +125℃ Operating Temperature Range

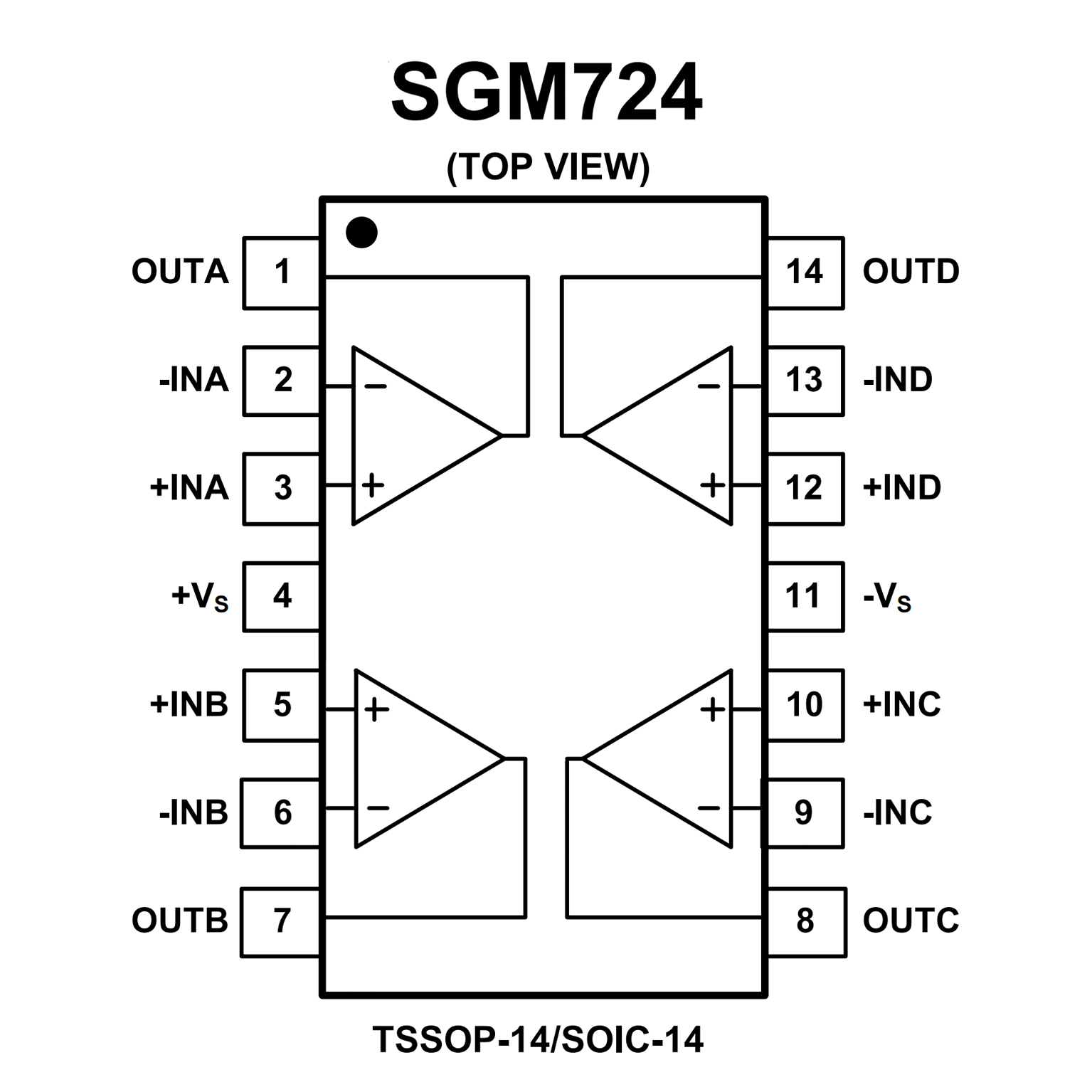

? Small Packaging:
SGM724 Available in Green TSSOP-14 and
SOIC-14 Packages
? Single-Supply Operation from +2.1V ~ +5.5V
? Rail-to-Rail Input / Output
? Gain-Bandwidth Product: 11MHz (Typ.)
? Low Input Bias Current: 1pA (Typ.)
? Low Offset Voltage: 3.5mV (Max.)
? High Slew Rate: 9V/μs
? Settling Time to 0.1% with 2V Step: 0.3μs
? Low Noise : 8nV/ Hz @10kHz
? Quiescent Current: 1.1mA per Amplifier (Typ.)
? Operating Temperature: -40°C ~ +125°C
? Small Package:
LMV721 Available in SOT23-5 , SC70-5 , SOP-8
Packages
LMV722 Available in SOP-8 and MSOP-8 Packages

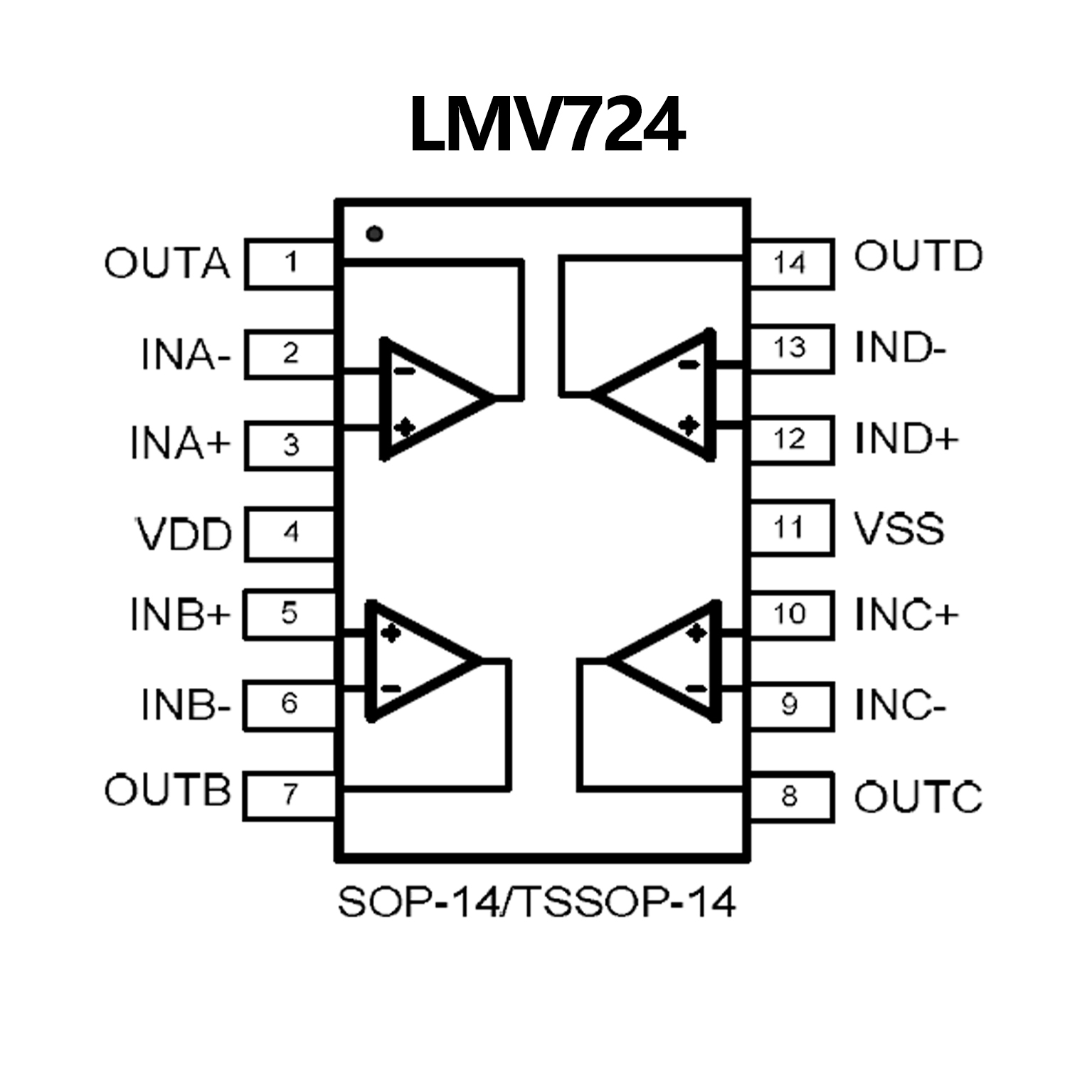

LMV724 Available in SOP-14 and TSSOP-14 Packages
LMV721N Available in SOT23-6 and SC70-6 Package
