SGM724XS14.pdf? Rail-to-Rail Input and Output
? Input Offset Voltage: 4mV (MAX)
? High Gain-Bandwidth Product: 11MHz
? High Slew Rate: 8.5V/μs
? Settling Time to 0.1% with 2V Step: 0.21μs
? Overload Recovery Time: 0.6μs
? Low Noise: 8.5nV/√Hz at 10kHz
? Supply Voltage Range: 2.1V to 5.5V
? Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
? Low Power:
SGM721/3: 1.2mA (TYP)
SGM722/4: 1.1mA/Amplifier (TYP)
SGM723 Less than 1μA when Disabled
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM721 Available in Green SC70-5, SOT-23-5 and
SOIC-8 Packages
SGM722 Available in Green MSOP-8, SOIC-8 and
TSSOP-8 Packages
SGM723 Available in Green SOT-23-6 and SOIC-8
Packages

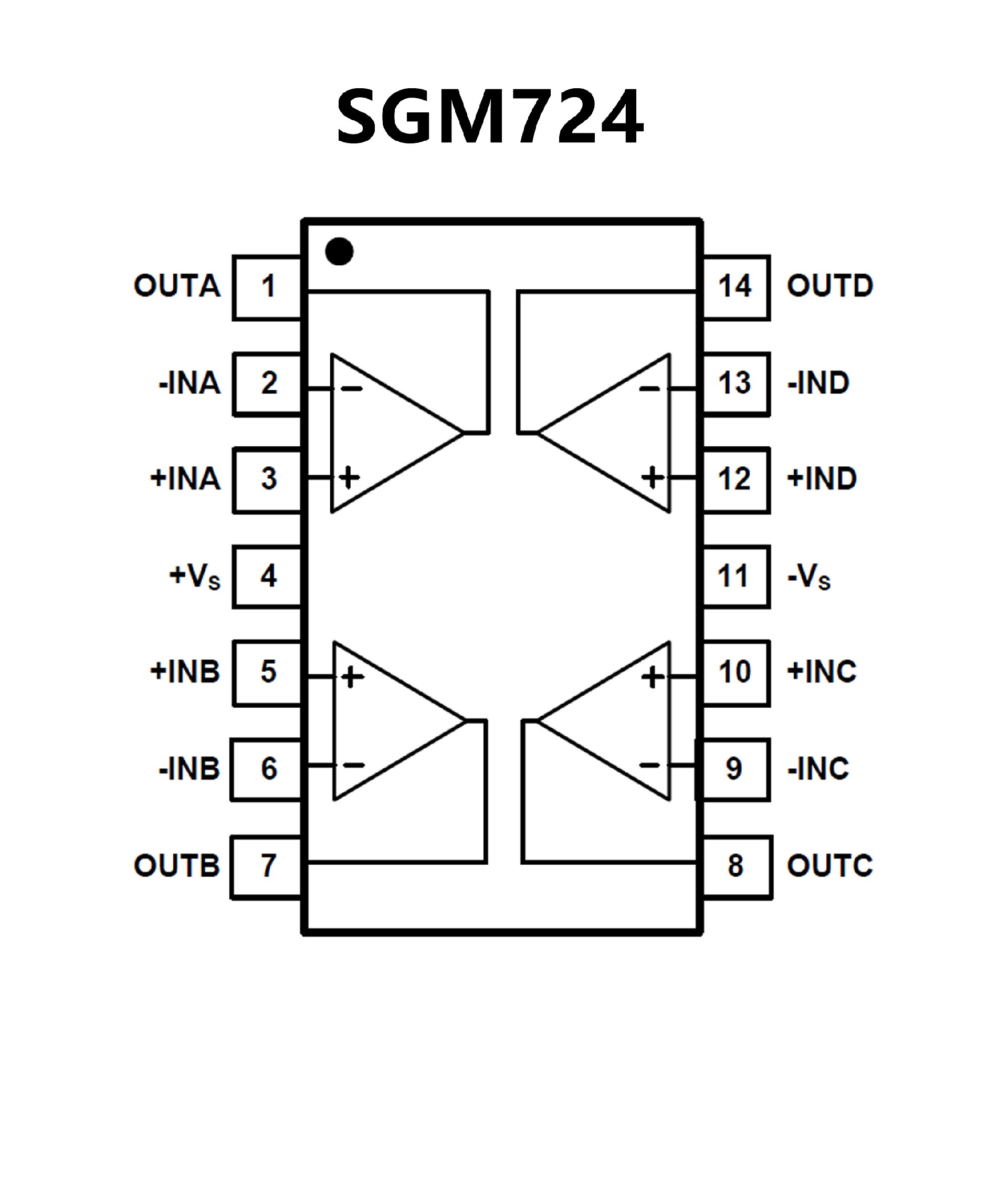

SGM724 Available in Green TSSOP-14 and
SOIC-14 Packages

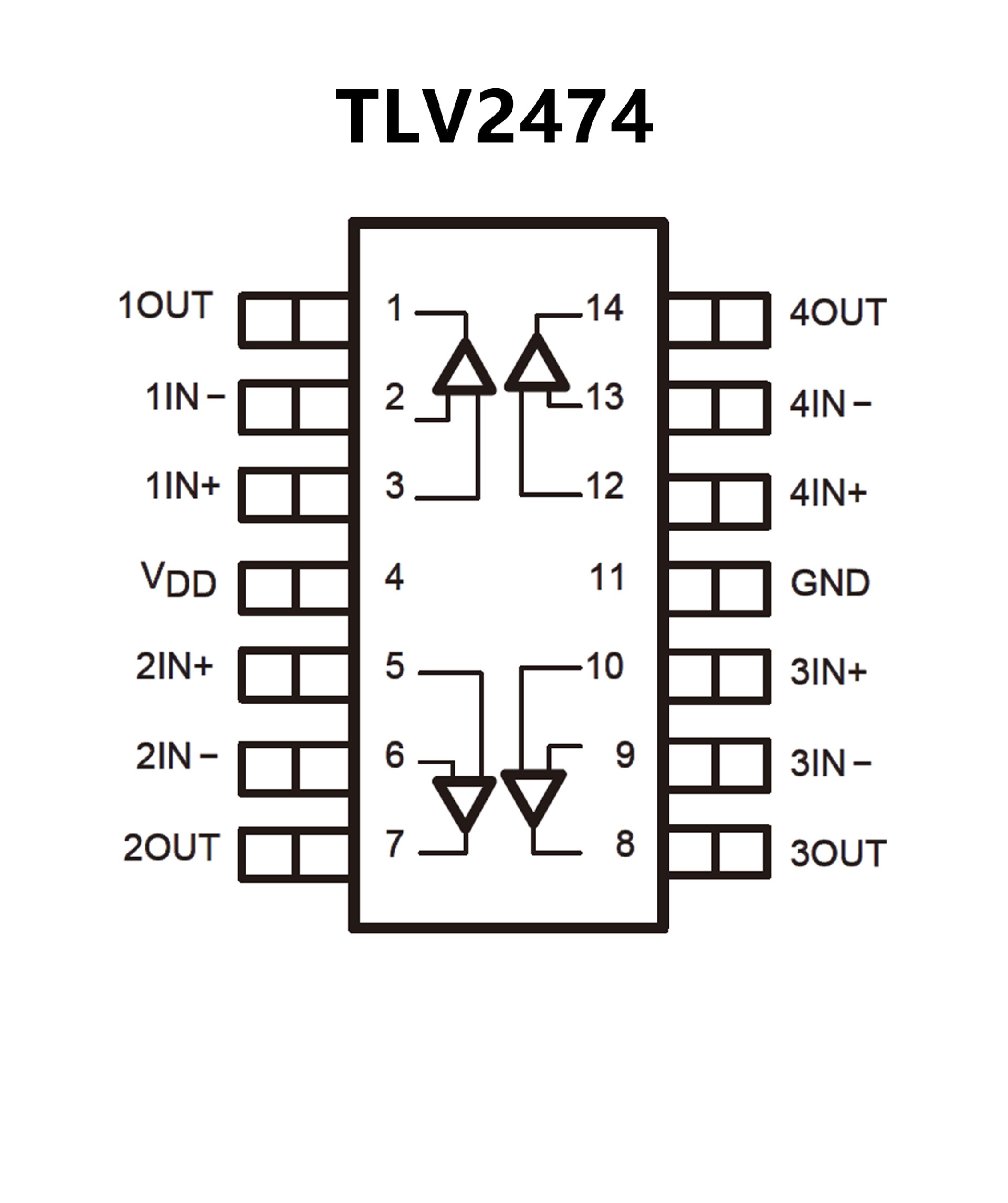

? CMOS Rail-To-Rail Input/Output
? Input Bias Current: 2.5pA
Low Supply Current: 600μA/Channel
Ultra-Low Power Shutdown Mode:
IDD(SHDN): 350nA/ch at 3V
IDD(SHDN): 1000nA/ch at 5V
? Gain-Bandwidth Product: 2.8MHz
? High Output Drive Capability:
±10mA at 180mV
±35mA at 500mV
? Input Offset Voltage: 250μV (typ)
? Supply Voltage Range: 2.7V to 6V
? Ultra-Small Packaging
SOT23-5 or -6 (TLV2470/1)
MSOP-8 or -10 (TLV2472/3)
