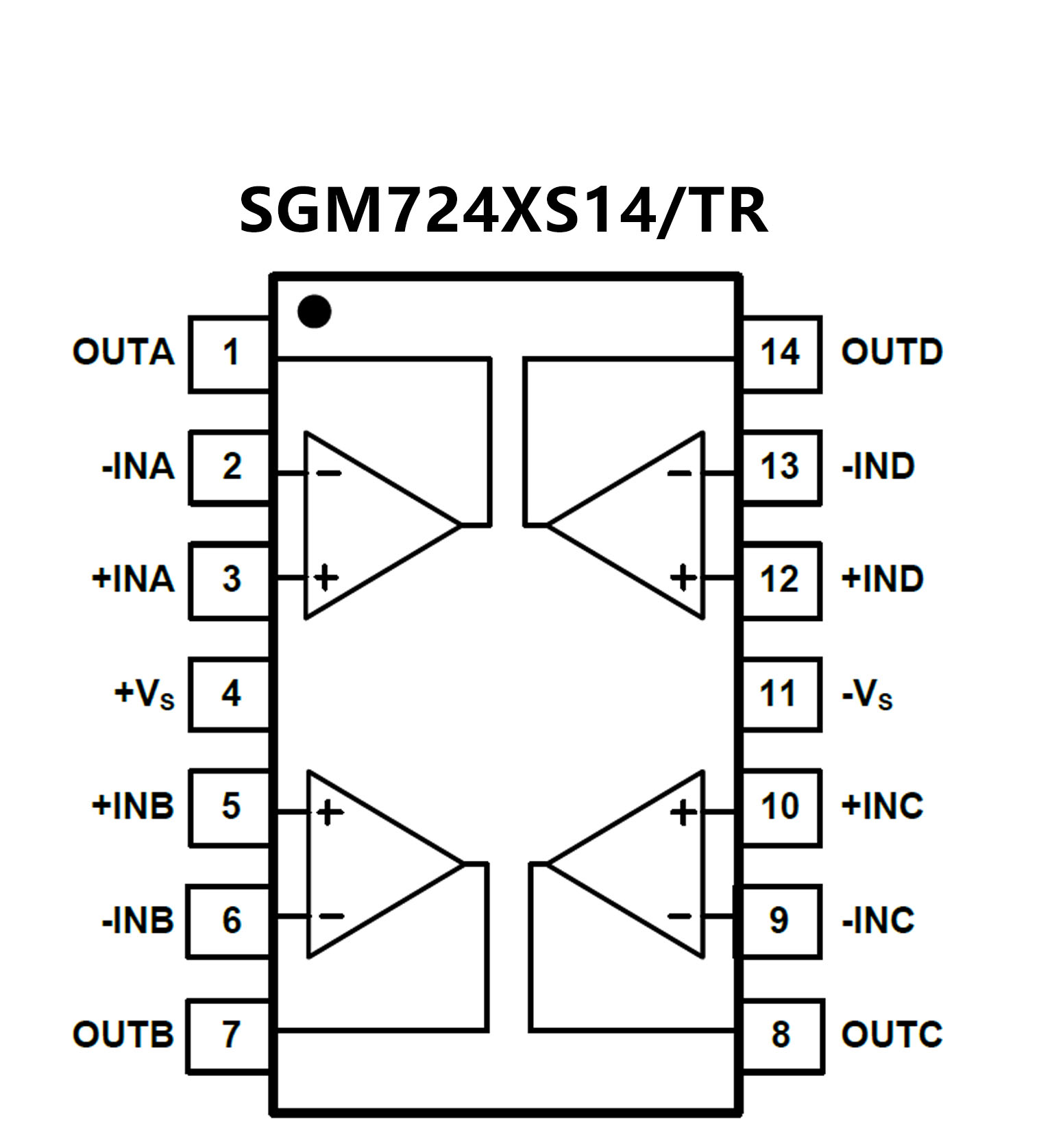

SGM724XS14TR.pdf? Rail-to-Rail Input and Output
? Input Offset Voltage: 4mV (MAX)
? High Gain-Bandwidth Product: 11MHz
? High Slew Rate: 8.5V/μs
? Settling Time to 0.1% with 2V Step: 0.21μs
? Overload Recovery Time: 0.6μs
? Low Noise: 8.5nV/√Hz at 10kHz
? Supply Voltage Range: 2.1V to 5.5V
? Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
? Low Power:SGM721/3: 1.2mA (TYP)SGM722/4:
1.1mA/Amplifier (TYP)SGM723 Less than
1μA when Disabled
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:SGM721 Available in Green
SC70-5, SOT-23-5 andSOIC-8 PackagesSGM722
Available in Green MSOP-8, SOIC-8 andTSSOP-8
PackagesSGM723 Available in Green SOT-23-6
and SOIC-8 PackagesSGM724 Available in
Green TSSOP-14 andSOIC-14 Packages

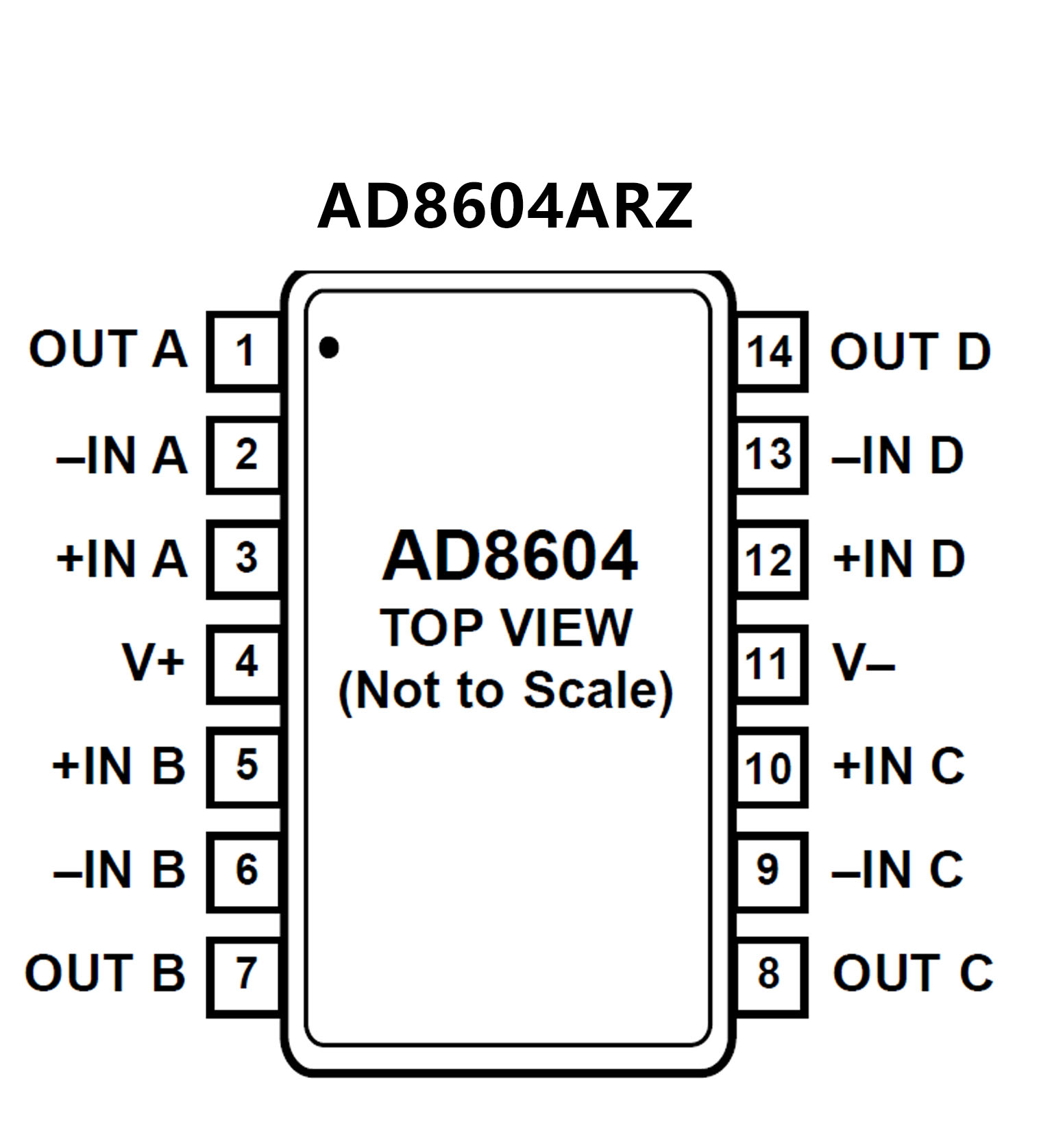

? Low offset voltage: 500 μV maximum
? Single-supply operation: 2.7 V to 5.5 V
? Low supply current: 750 μA/Amplifier
? Wide bandwidth: 8 MHz
? Slew rate: 5 V/μs
? Low distortion No phase reversal
? Low input currents
? Unity-gain stable
? Qualified for automotive applications
