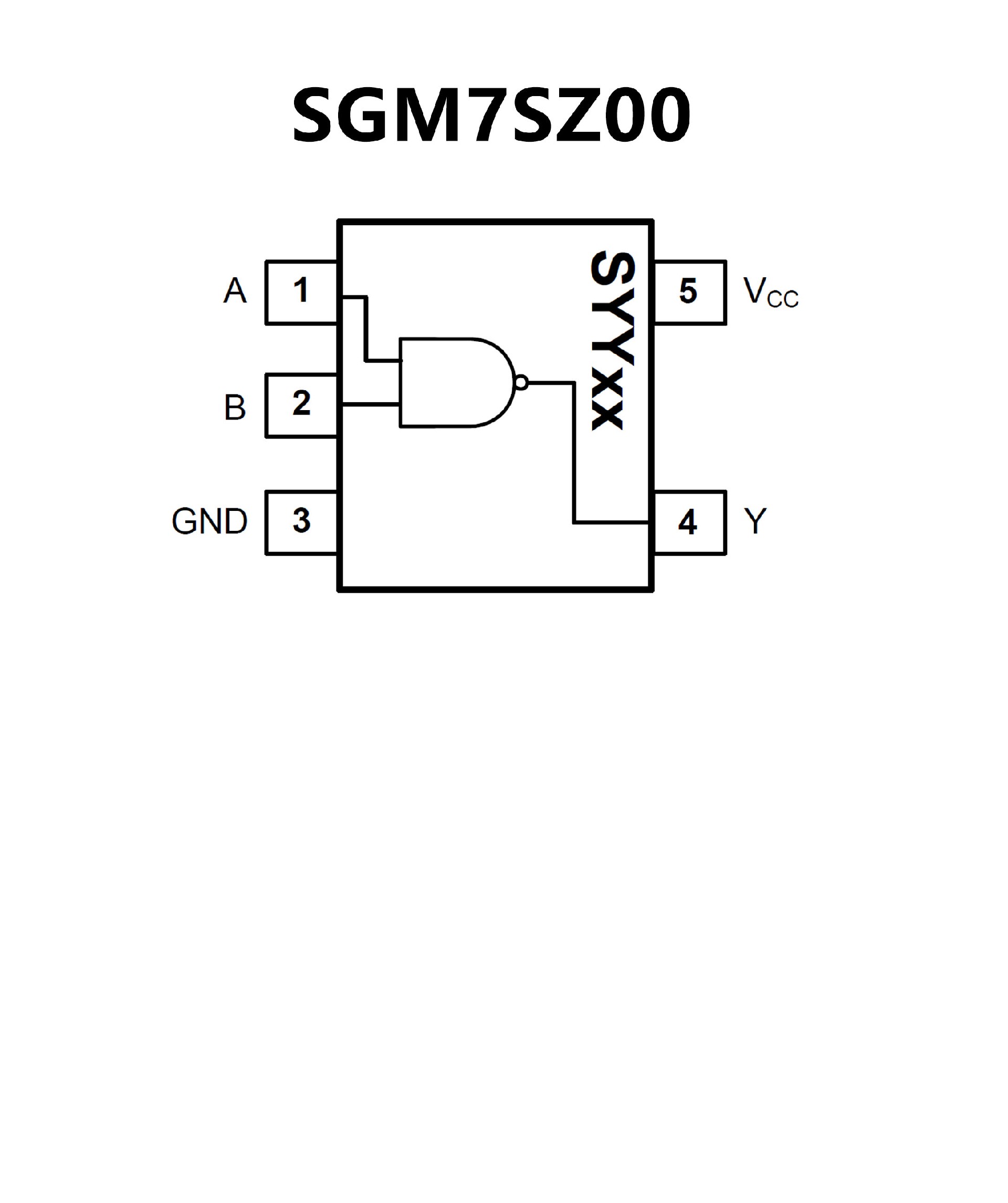

SGM7SZ00YN5G.pdf? Ultra-High Speed: tPD = 4.1ns (TYP) into 50pF
at VCC = 3.3V
? High Output Drive: ±24mA at VCC = 3V
? Broad VCC Operating Range: 1.65V to 5.5V
? Matches Performance of LCX Operated at VCC = 3.3V
? Power Down High-Impedance Inputs/Output
? Over-Voltage Tolerance Inputs Facilitate 5V to 3V
Translation
? Available in Green SOT-23-5 and SC70-5 Packages
? Latch-up performance exceeds 100 mA Per JESD
78, Class II
? ESD protection exceeds JESD 22
2000-V Human-body model (A114-A)
200-V Machine model (A115-A)
1000-V Charged-device model (C101)

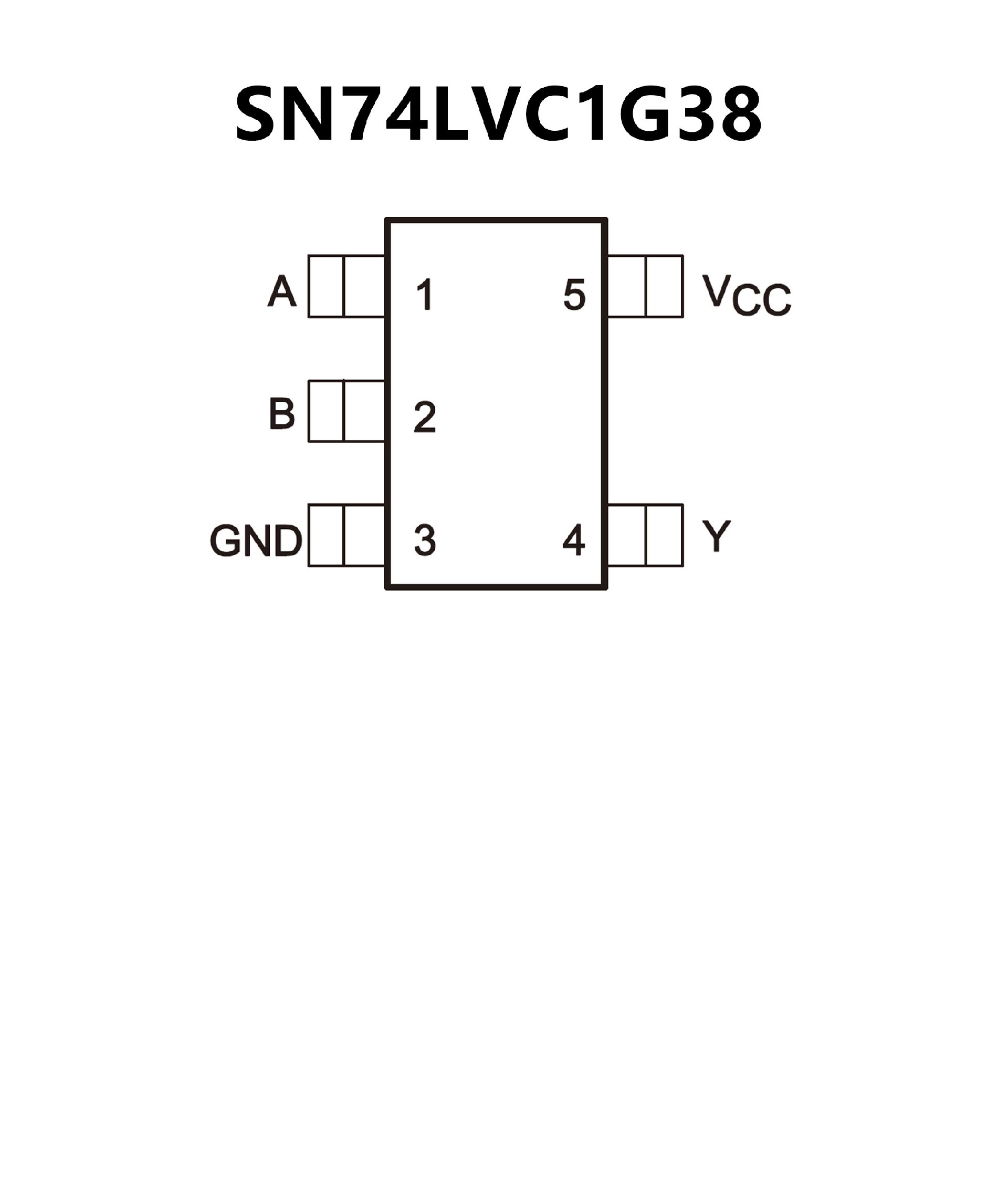

? Available in the Texas Instruments
NanoStar? and NanoFree? Packages
? Supports 5-V VCC operation
? Inputs accept voltages to 5.5 V
? Supports down translation to VCC
? Maximum tpd of 4.5 ns at 3.3 V
? Low power consumption, 10-μA maximum ICC
? ±24-mA Output drive at 3.3 V
? Ioff Supports partial-power-down
mode and backdriveprotection
